Sale!
, , ,

BAILEIGH BB-4012F Finger Brake (40″ x 12ga.)

Original price was: $4,199.00.Current price is: $3,569.15.

Input Power: Manual
Maximum Box Depth: 2.5"
Max. Bend (Deg.): 0 – 135°
Max. Clamping Bar Lift: 1.85
Overall Length: 40”
Shipping Dimensions: 58x25x52
Style (Type): Sheet Metal Finger Brake
Weight: 3900

*Manual box brake
*12-gauge mild steel capacity
*40″ length
*Includes foot pedal for clamping

Features:

This Baileigh sheet metal brake bends up to 12-gauge mild steel across its full 40” length
Stop rod lets you make repeatable bends with ease for production runs

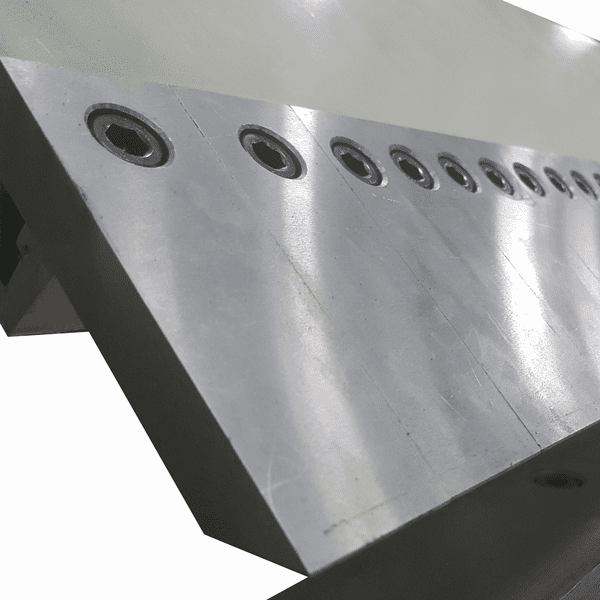

Hardened bending die ensures years of high-quality results
Simple blade gap adjustment helps you correctly bend various gauges of sheet metal

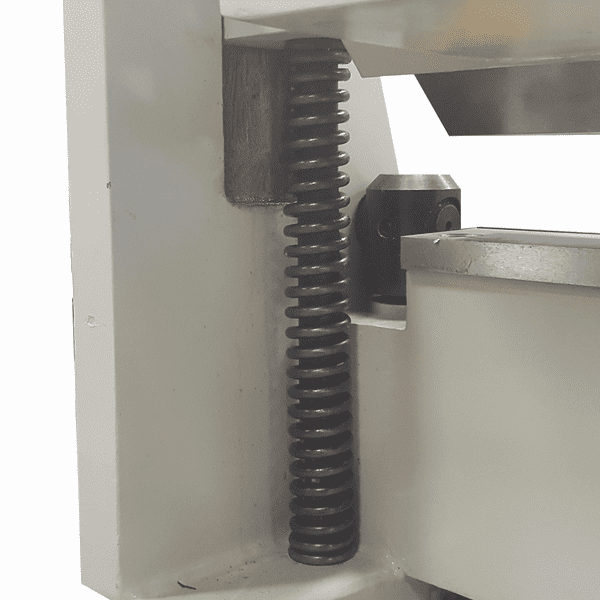

Spring-loaded cylinder assists in lifting the apron, especially helpful when you’re bending at full capacity

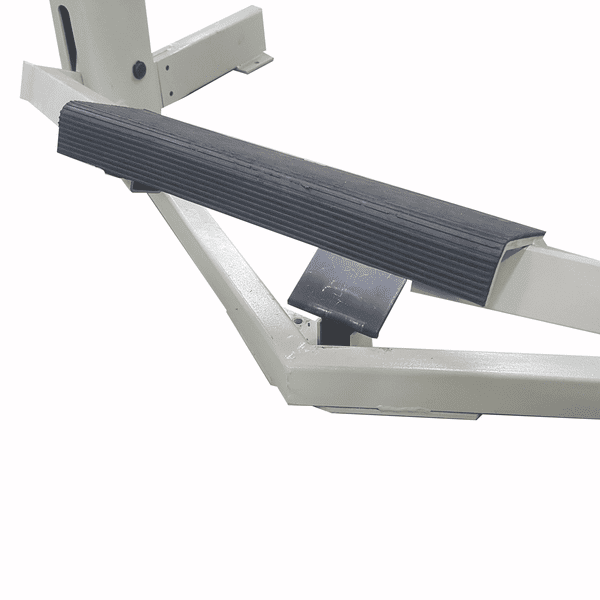

Foot-controlled clamp leaves your hands free to position the sheet metal before clamping in place
Comes standard with hardened fingers in an assortment of widths to create many sizes of tanks, pans, boxes, and more
Built from the best possible components with a full-welded heavy steel framework to minimize flex and deformation

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 810 lbs
Dimensions 58 × 25 × 52 in
Input Power

Maximum Box Depth

Max. Bend (Deg.)

Max. Clamping Bar Lift

Overall Length

Shipping Dimensions

Style (Type)

Weight
