BAILEIGH BP-3142NC – 42 Ton 31″ Hydraulic Press Brake

Original price was: $22,999.00.Current price is: $19,549.15.

Approach Speed: 0.9" / sec.
Bending Speed: 0.4" / sec
Distance Between Housings: Inch
Distance From Table To Ram: 8.5"
Distance Per Stroke: 2
Input Power: 220V Single Phase
Maximum Notch: Maximum Notch (In.)
Minimum Return Speed (In./Sec): Minimum Return Speed (In./Sec)
Miter Angle Range (Deg.): 45° - 0° - 45°
Range of Speeds: Range of Speeds
Rating: 42
Rectangle at 45 Degrees: 13-57/64" x16-l/4" - Right / 13-19/32"xl6-l/4" - Left
Rectangle Capacity: 20" x 16-1/4"
Shipping Dimensions: 60x48x94
Weight: 2000
Speed: Speed (rpm)

SKU: BA9-BP3142NC Categories: , ,

Got a lot of small items to bend? Designed and made in the USA, the Baileigh BP-3142NC – 42 Ton 31″ Hydraulic Press Brake is perfect for hot rod shops that need to bend brackets quickly, but don’t want a larger machine. Operating on 220-volt single-phase power and with a 42-ton capacity, this brake is the perfect for bending small parts up to 1/4 inch mild steel. Plug and play ready with an included Multi-V lower die and punch tooling, this machine can also handle bump die tooling with its 2″ stroke and large 7-3/4″ opening height. Bend parts more efficiently, precisely, and expand your shops capabilities with the Bailegh BP-3142NC – 42 Ton 31″ Hydraulic Press Brake. Recommended for: Hot rod shops and other fabricators that work with smaller parts, but need a fast, professional-quality machine.

Features:

  • Bends a maximum capacity of .25” mild steel and has a 31” width, perfect for smaller projects
  • Runs on 220-volt single phase power with a 2 hp motor that produces 42 tons of pressure, so it will work in any shop, even when power is limited
  • Foot pedal controls hydraulic system, leaving your hands free to guide the material
  • Easy to use. You can train someone to handle this press brake in 5 minutes
  • Sturdy 19.5”-long manual back gauge makes it simple to create repeat parts
  • Digital readout (DRO) for back gauge and down position helps you get precise results

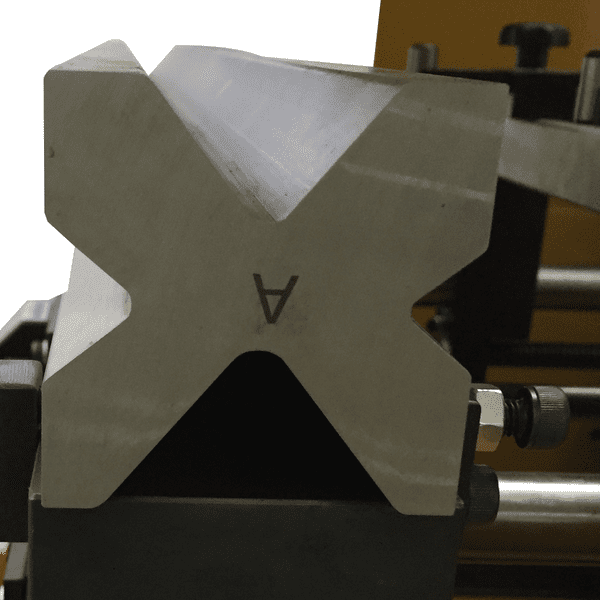

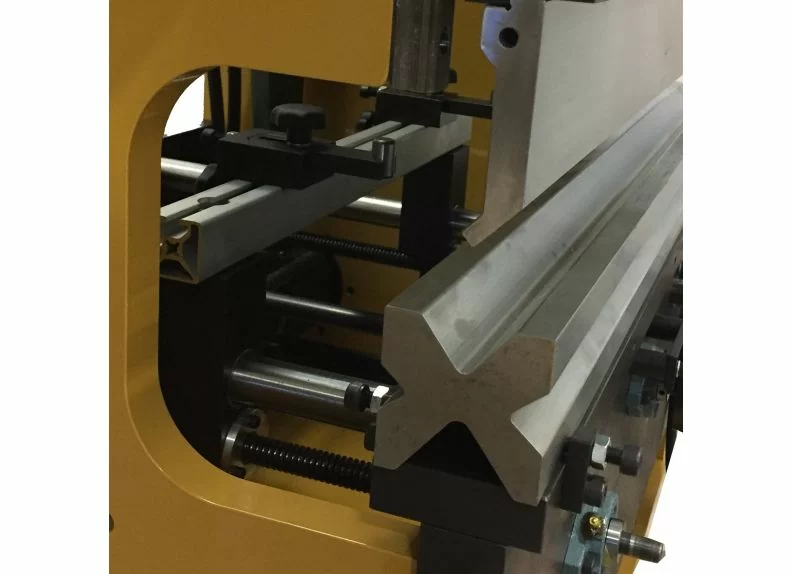

  • Includes a hardened multi-Vee bottom die, unlike some competing machines which don’t come with tooling
  • Universal tooling holder gives you a wide variety of options to fit your applications
  • Heavy steel plate construction, weighing 2,000 lbs., doesn’t flinch under pressure and maintains accuracy over many years of use
  • Requires little maintenance. Hydraulics are in the upper back of the machine for convenient fluid changes every 6 to 8 months

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2000 lbs
Dimensions 60.0 × 48.0 × 94.0 in
