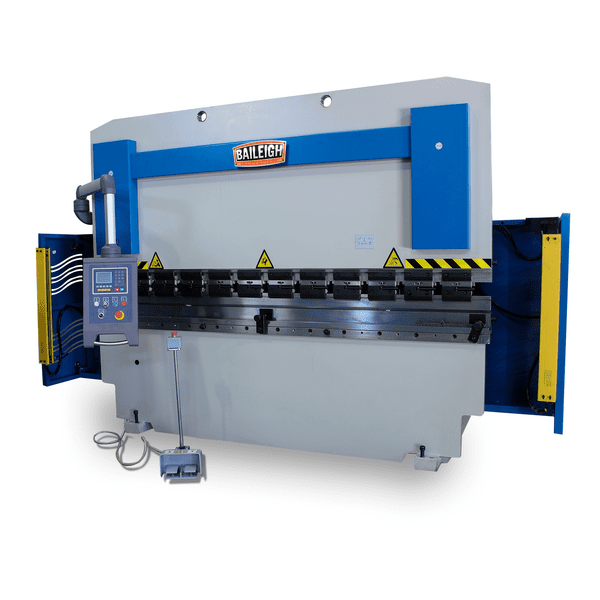

Need an industrial Press Brake that’s easy to use? You can learn how to program the BP-7098CNC 2-axis controller in 5 minutes. A heavy steel frame keeps this machine accurate. Order this Hydraulic Press Brake from Baileigh Industrial today.
- Delivers 70 tons of pressure over its entire 98” length.
- Long enough to bend 8-foot pieces of mild steel.
- Runs on 220-volt 3-phase power.

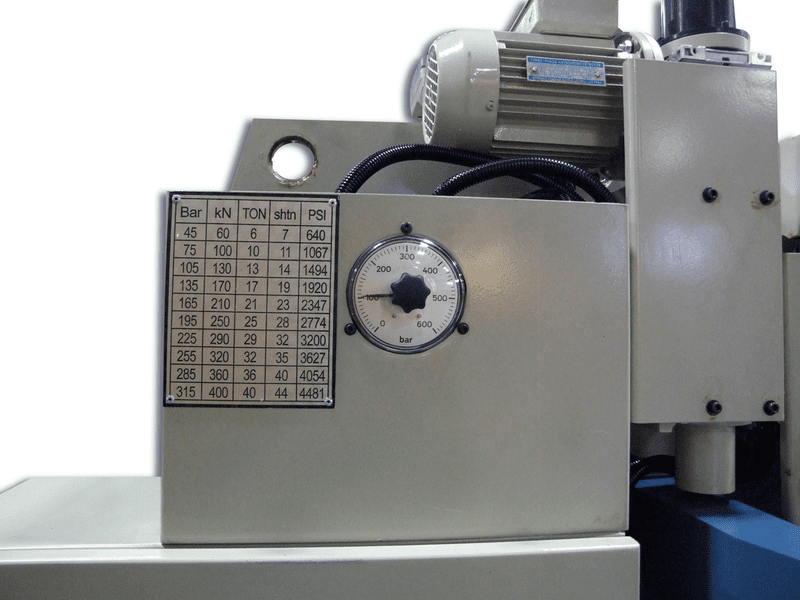

- Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity.
- Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
- Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.

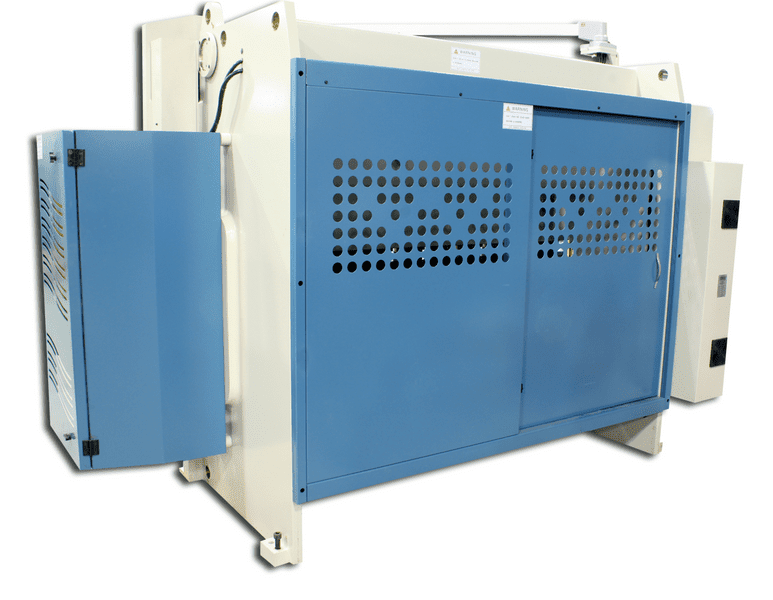

- Hydraulic cylinders are near the back of the machine for convenient fluid changes.

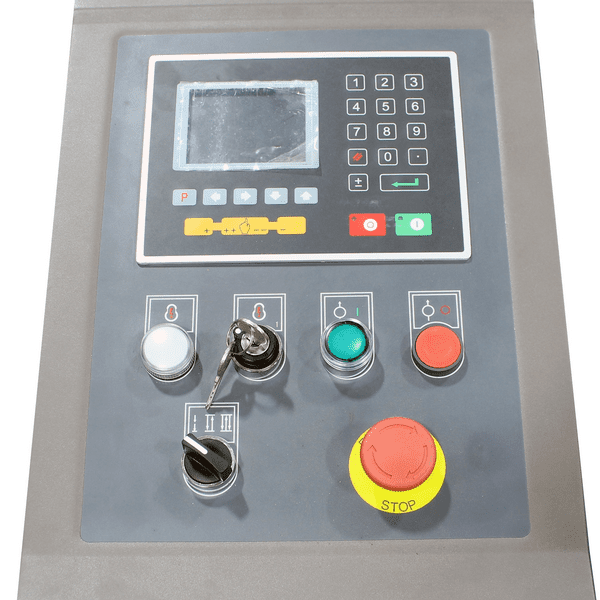

Accurate, User-Friendly Control System:
- Runs in single-bend mode or programmable mode.
- Comes standard with 2 axes of control: stroke and back gauge distance.
- Simple controller is so intuitive that you could train someone to use it in 5 minutes.
- Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
- Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
- Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

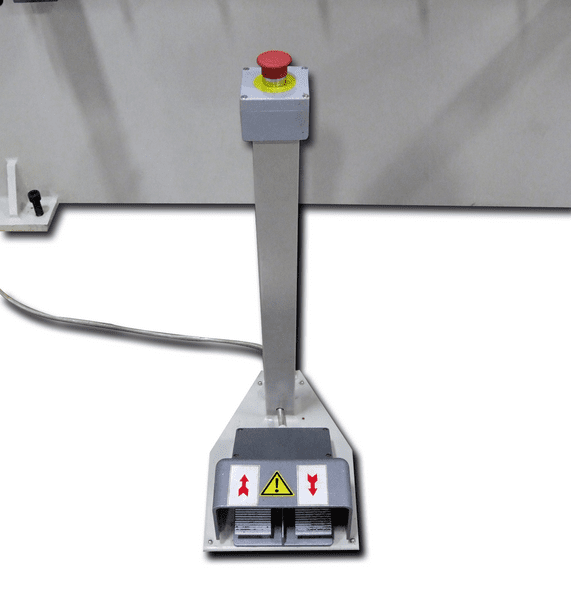

- Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
- You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
- Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
- Speed option lets you reduce cycle time and make your shop more efficient.
- Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
- The 23.62″ back gauge can advance or retract according to programmed instructions.
Steel Plate Construction and Included Tooling:
- Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
- Weighs a robust 9,251 lbs. for massive structural strength that ensures accurate results.
- Includes support arms around 2 feet in length.

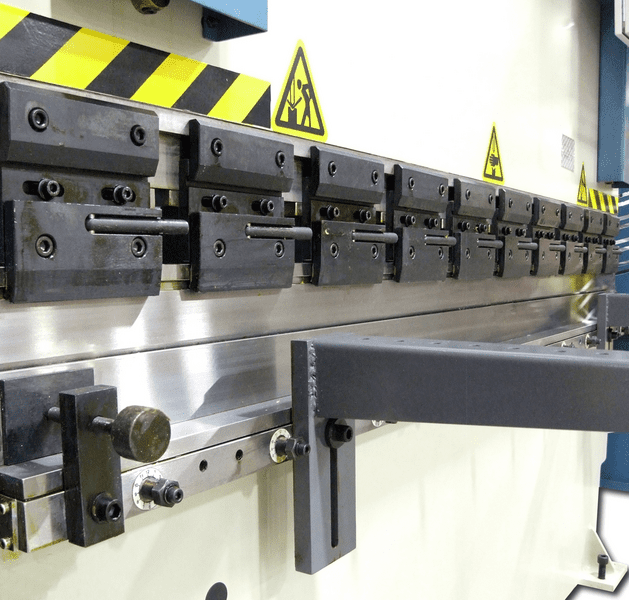

- Comes standard with tooling: a multi-Vee bottom die and gooseneck punches.
- Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
- Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
- Safety light curtains prevent the machine from bending when someone is too close.
- Light curtains will swing open and get out of the way when you’re doing a tool change.
Fast Shipping and Expert After-Sale Care:
- This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
- We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
- Replacement parts are in stock, so we can get them to you quickly.
- 1-year manufacturers parts warranty, as well as lifetime technical support by phone.
- You can contact us any time to talk with service reps who have years of industrial experience.
