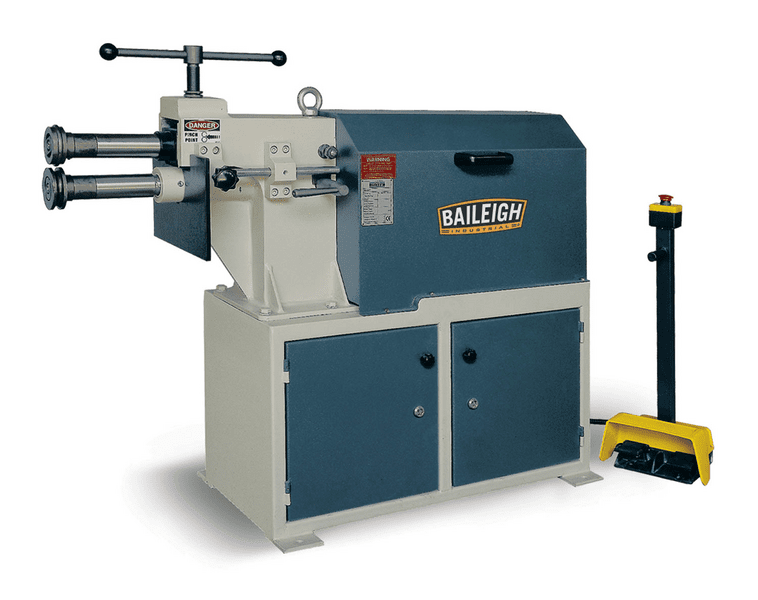

BAILEIGH BR-12E-10 220V Heavy Duty Bead Rolling Machine

Original price was: $7,379.00.Current price is: $6,272.15.

Adjustable Depth Stop: Included
Input Power: 220 Volt Single Phase
Max Thickness Mild St.: 12
Roll Diameter: Inch
Shipping Dimensions: 60x48x53
Throat Depth: 11"
Weight: 820

*220V 1-phase electric bead roller
*12 gauge mild steel capacity
*10” throat depth
*Includes round, shear, step, and crimp rolls

Features:

2 hp motor runs on 220-volt single-phase power and a 10” throat depth is suitable for working on the edges of material
Industrial-grade gearbox comes with a brake to maintain accuracy and foot pedal controls leave your hands free to guide the material. You only need one operator
Forward and reverse pedals help with delicate patterns that you want to go over
Movable steel plate depth stop provides a solid surface to guide you and produce straight beads
Top handle moves the top shaft vertically so that you can easily open it up and get the material in there
Includes 4 tooling profiles: round, shear, step, crimp rolls
Cabinet built into the base offers convenient storage for tooling
Adjustable depth on the bottom lets you get a custom profile by offsetting your rolls
Disengage the black handle to push the shaft back and forth and get your offset
Robust, fully welded steel frame ensures many years of accurate, reliable metal forming even at maximum capacity
