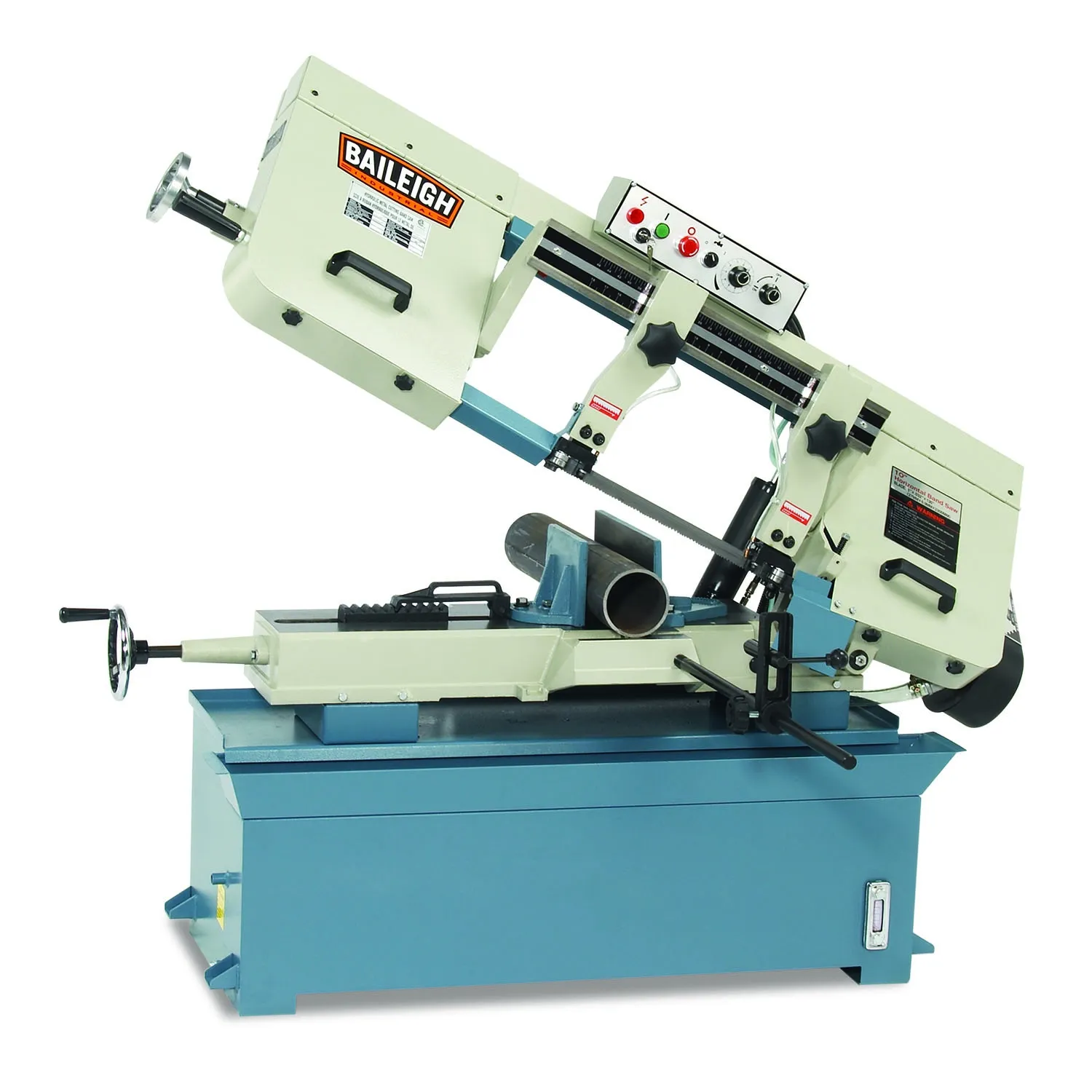

BAILEIGH BS-300M-240V 1Ph Metal Cutting Band Saw

$5,999.00

Blade Guide: Roller
Blade Speeds (SFPM): 82, 132, 170, or 235
Capacity Rectangular 90 X 45: 9.84" x 16.33" / 9.84" x 7.50"
Capacity Round 90 X 45: 9.84" x 7.5"
Capacity Square 90 X 45: 9.84" x 7.5"
Descent Control: Hydraulic
Drive: Belt x Pulley
Input Power: 240V / 1-phase
Type of Miter Adjustment: Vise
Miter Angle Range (Deg.): 0 – 45°
Motor (HP): 2 hp
Return: Manual
Shipping Dimensions: 69x44x48
Table Height: 30.7"
Weight: 845

*240V 1-phase metal band saw
*9.75” round capacity at 90°
*Vise miters 45°
*1″ blade width
*4 cutting speeds: 82, 132, 170, 235 fpm

Features:

2 hp motor runs on 240-volt single-phase power, so any shop can reap the benefits of this saw
9.75” round maximum capacity at 90°
Standard 1” blade width – Cuts almost anything that you can throw at it, including many different shapes and profiles of metal

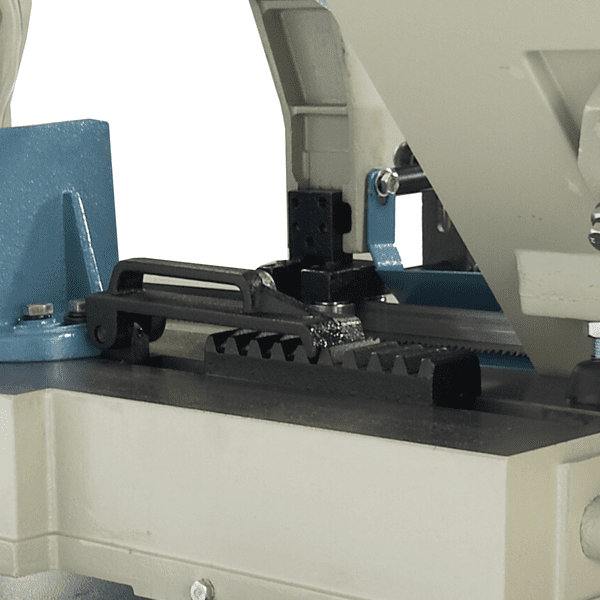

Vise miters up to 45°

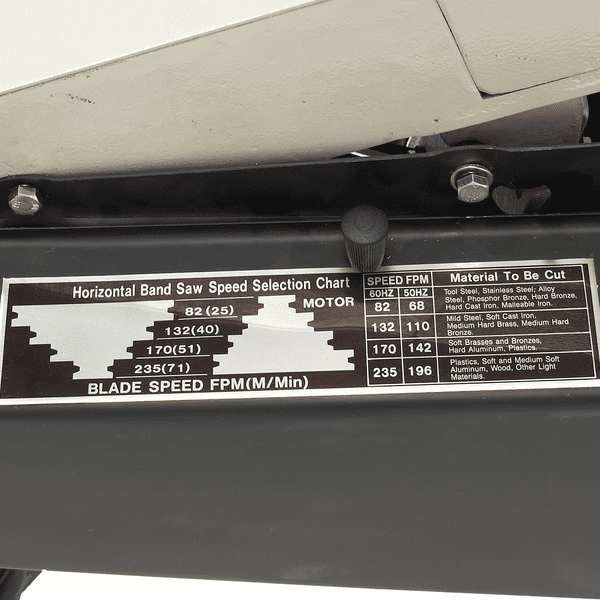

4 cutting speeds (82, 132, 170, 235 fpm) allow you to fine-tune the saw for better cut quality
Includes our patented blade tension device: a liquid-filled gauge that makes it easy to check whether your blade is properly tensioned

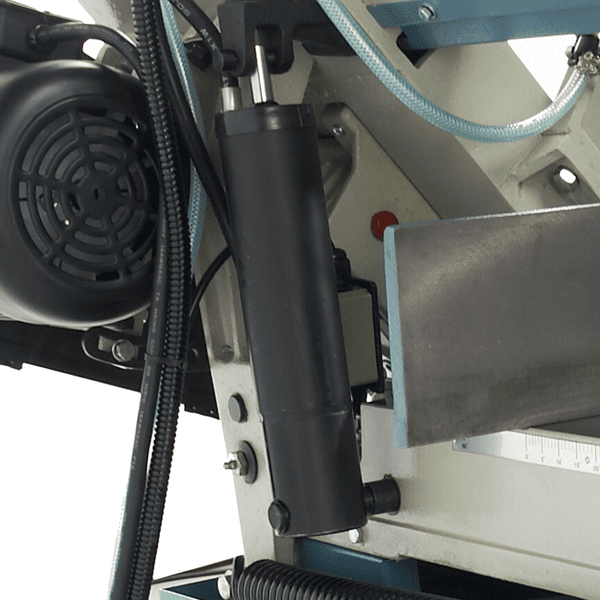

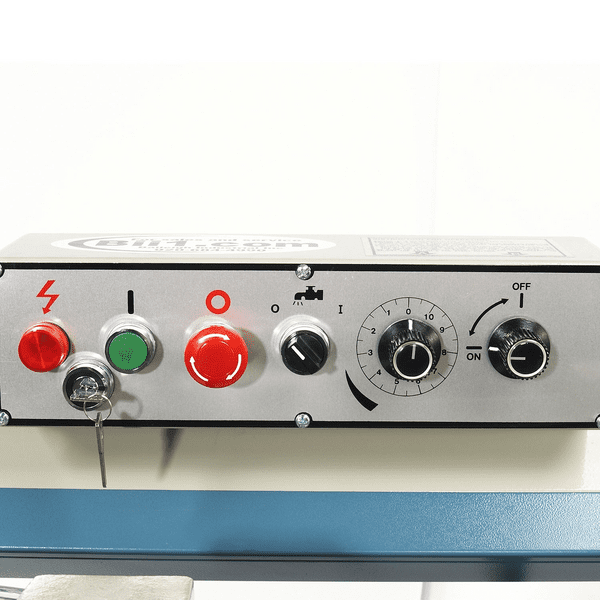

Hydraulic descent pressure controlled by a panel located on top of the bow
Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe

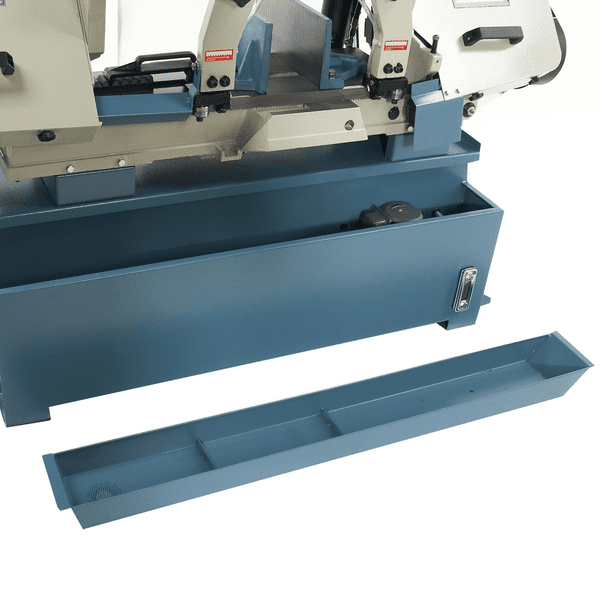

Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses
Fully welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine. This saw can take a lot of punishment!

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 845 lbs
Dimensions 69 × 44 × 48 in
