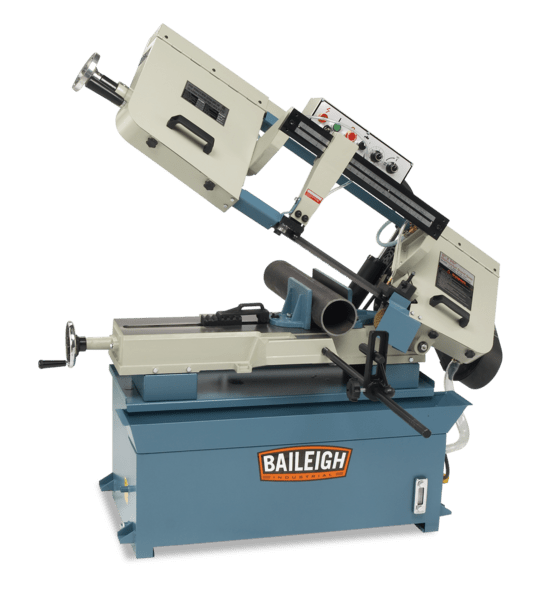

BAILEIGH BS-916M-9×16 Metal Cutting Band Saw

$5,269.00

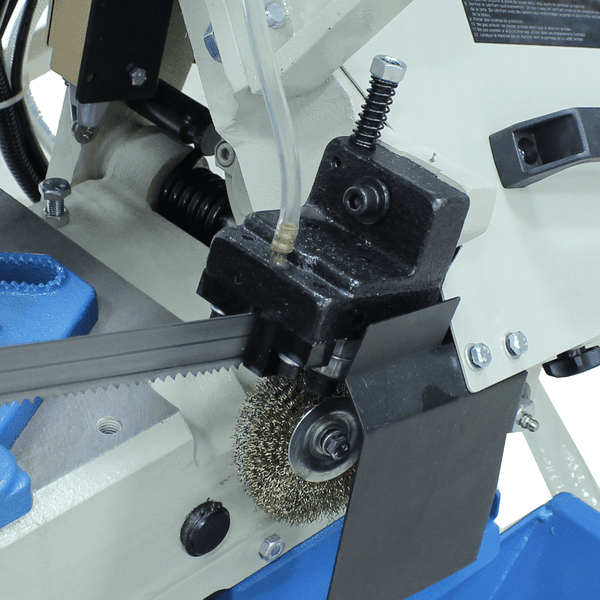

Blade Guide: Roller
Blade Speeds (SFPM): 82 x 132 x 170 x 235
Capacity Round 90 X 45: 8.85" x 6.5"
Capacity Square 90 X 45: 8.85" x 6.5"
Descent Control: Hydraulic
Drive: Belt x Pulley
Input Power: 240V / 1-phase
Type of Miter Adjustment: Vise
Miter Angle Range (Deg.): 0 – 45°
Motor (HP): 1.5 hp
Return: Manual
Shipping Dimensions: 69x44x46
Table Height: 24"
Weight: 770

*240V 1-phase power
*8.75” round capacity at 90°.
*Vise miters 45°
*1″ blade width
*4 cutting speeds: 82, 132, 170, 235 fpm

Features:

1.5 hp motor is powered by 240-volt single-phase power
8.75” round capacity at 90°

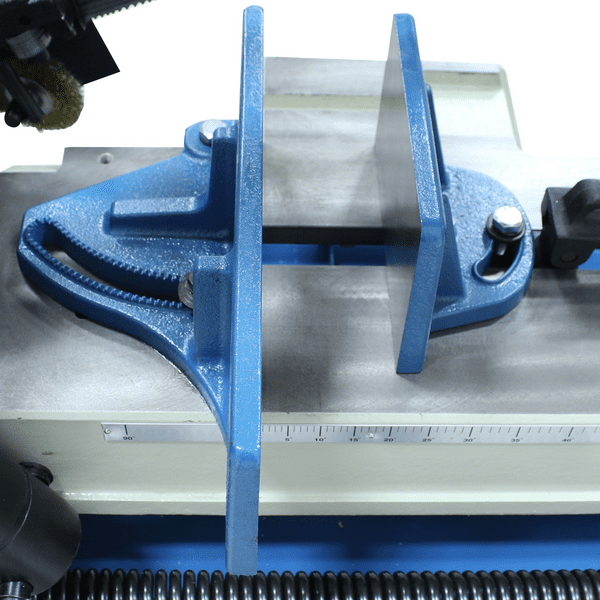

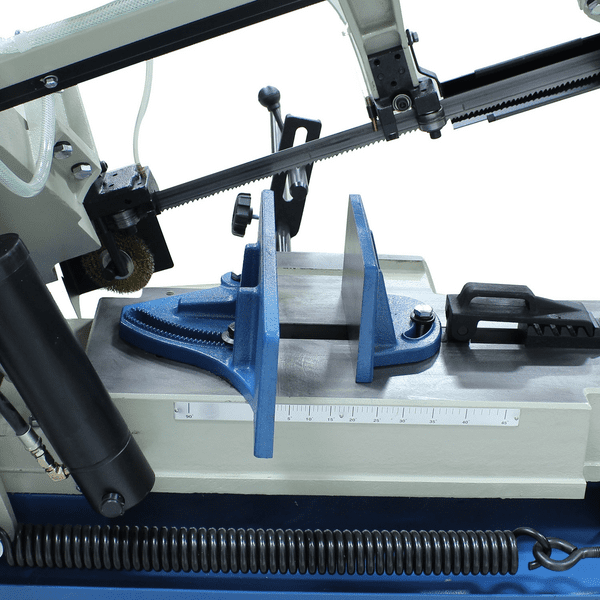

Vise miters up to 45°
Accepts standard 1” blades

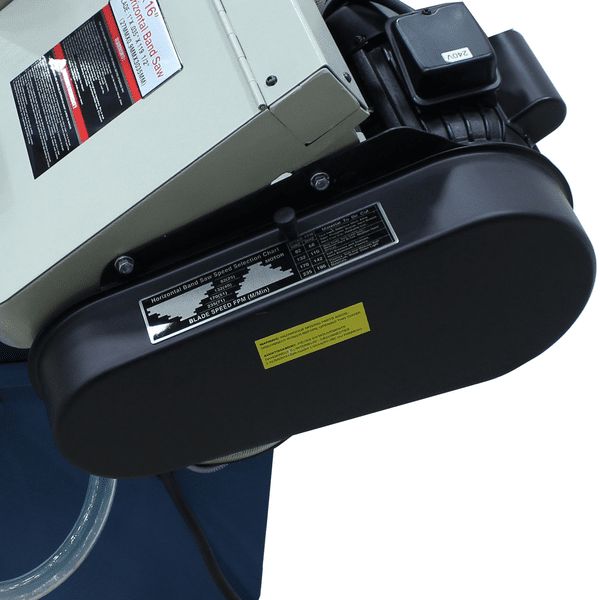

4 cutting speeds: 82, 132, 170, and 235 fpm
Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty

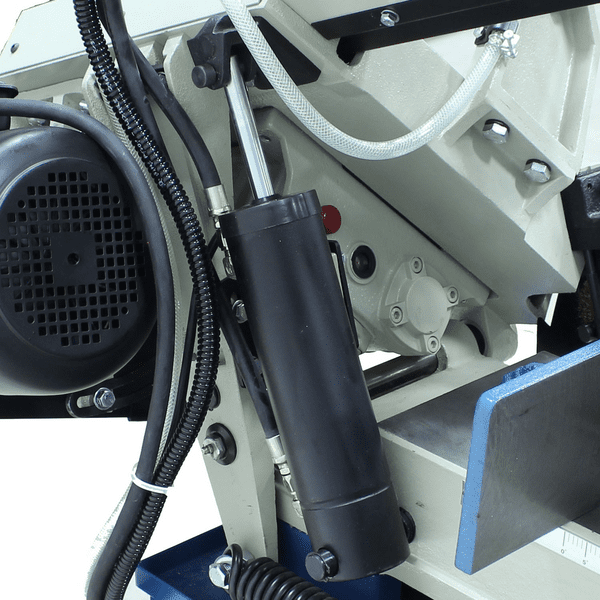

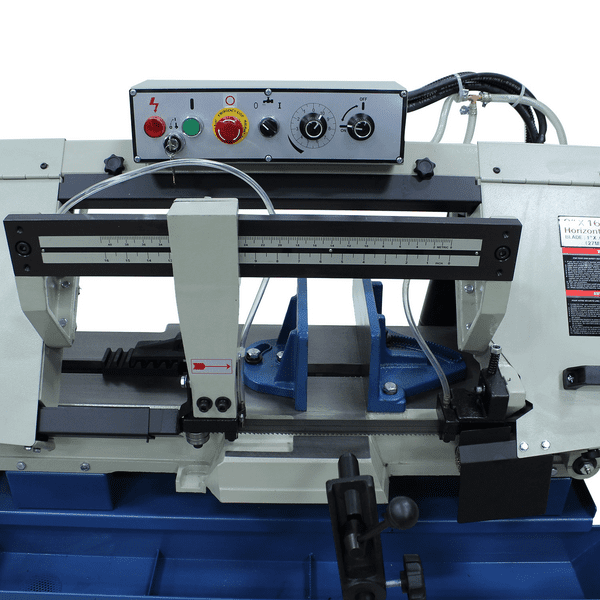

You can control the hydraulic descent through an easy-to-access panel located on top of the bow
Automatically shuts off at the end of the cut for safety and efficiency
Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 770 lbs
Dimensions 67 × 22 × 43 in
