Sale!
, , ,

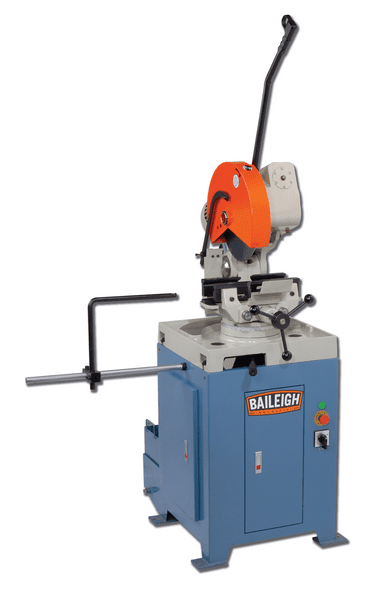

BAILEIGH CS-350M-220V 3PH 14 Manual Cold Saw

Original price was: $8,879.00.Current price is: $7,547.15.

Motor (HP): 4.0 / 3.0 hp
Solid Round at 45 Degrees: 1.575"
Solid Round at 90 Degrees: 2.362"
Style (Type): Dual Action, Self Centering
Tubing Rectangle: 4.25" x 3.5"
Tubing Round at 45 Degrees: 2.953"
Tubing Square at 45 Degrees: 2.953" x 2.953"
Tubing Square at 90 Degrees: 4.331"
Weight: 795
SKU: BA9-1002569 Categories: , , ,

Features:

Accepts a 14” blade and has a 4.25” round tube capacity at 90°
Miters 45° right and 90° left, perfect for slotting applications
2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials with help from the coolant system that lubricates the blade, reducing strain on the operator
Robust 4 hp motor runs on 220-volt 3-phase power
All-metal gears in direct-drive head are ground and hardened for reliability

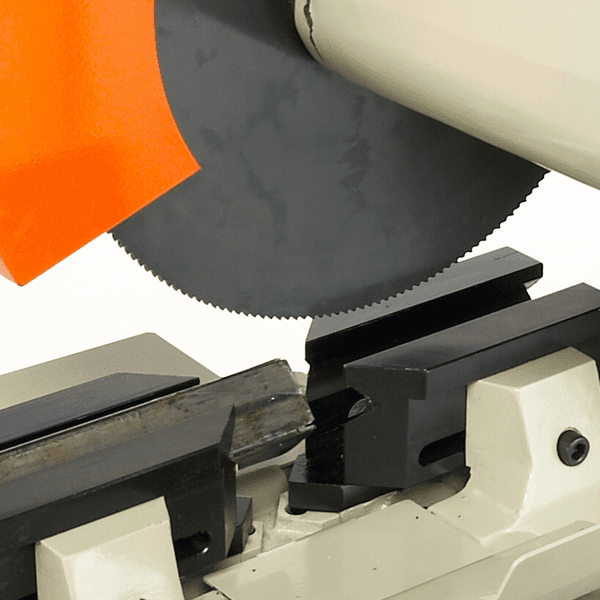

American-style vise keeps the material perfectly centered with the blade for clean, correct cuts
Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum
Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably
Heavy molded steel stand brings the saw up to a comfortable cutting height

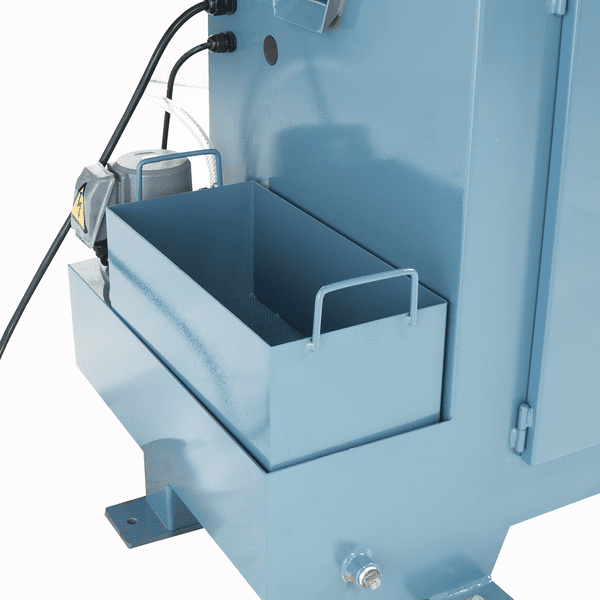

Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 795 lbs
Dimensions 60 × 44 × 77 in
