*78 tons of pressure
*Programmable NC controller
*13.78” stroke length
*220V 3-phase power
*37” working table height
Features:
Electronic encoders make this hydraulic press brake accurate to +/- .002”
Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material. Numerical control (NC) programmer can store up to 50 programs with 10 bends per program
You can adjust the pressure of the hydraulics for your material. You can also run the machine in a manual mode for one-off projects as well as set-up
Robust manual back gauge bolts to the machine and helps with repeatability and product counter makes production runs more efficient
Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out

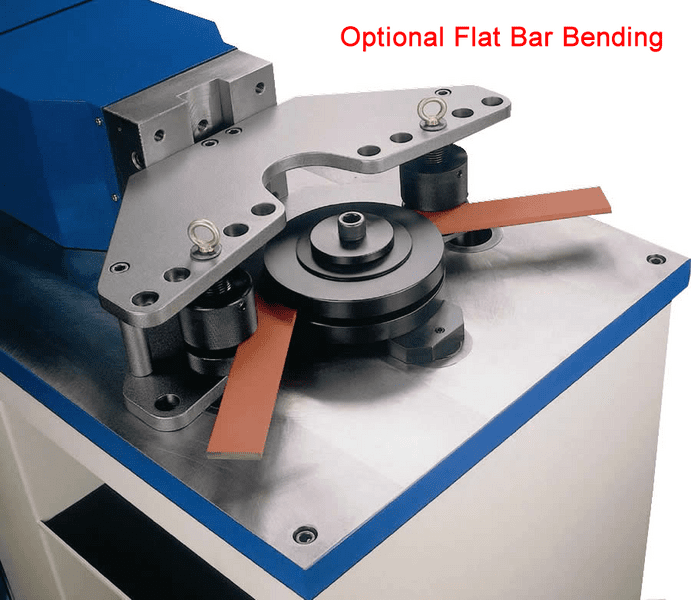

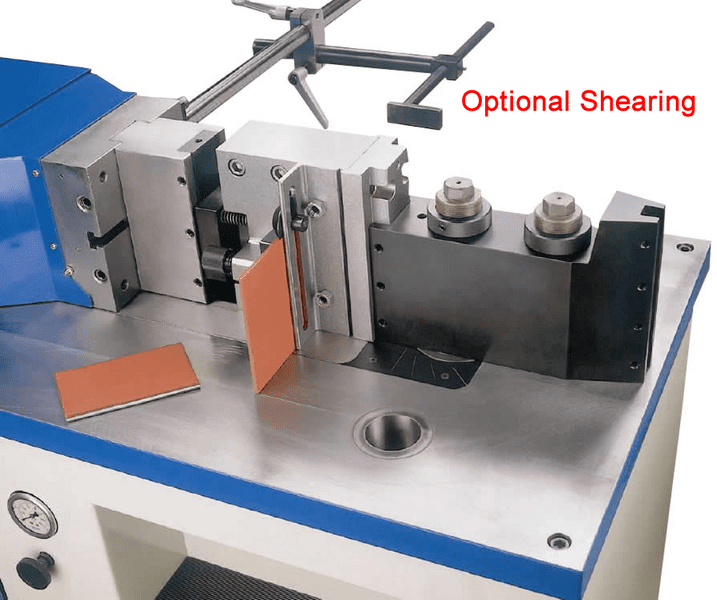

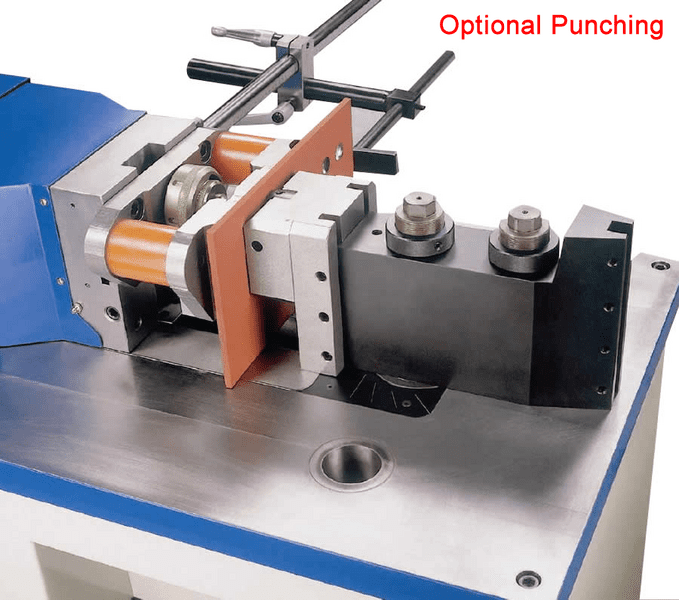

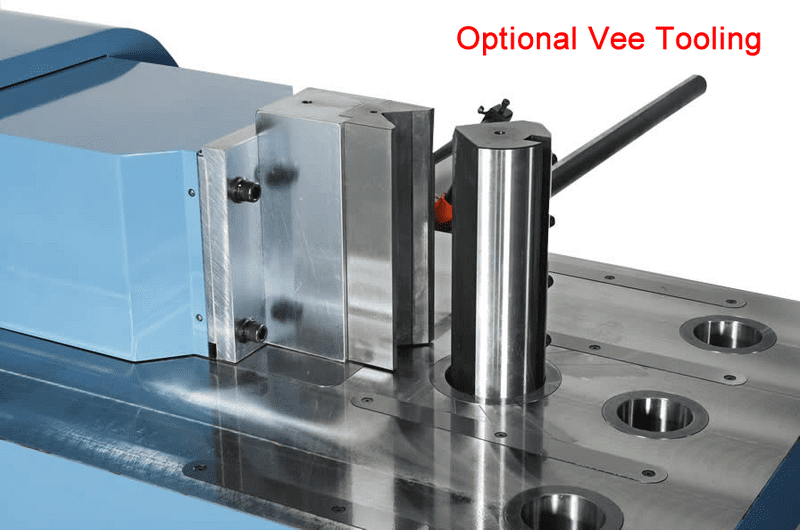

Includes a set of single-V tooling (V-opening die and V post). Also accepts attachments for punching, straightening, shearing, and even pipe bending

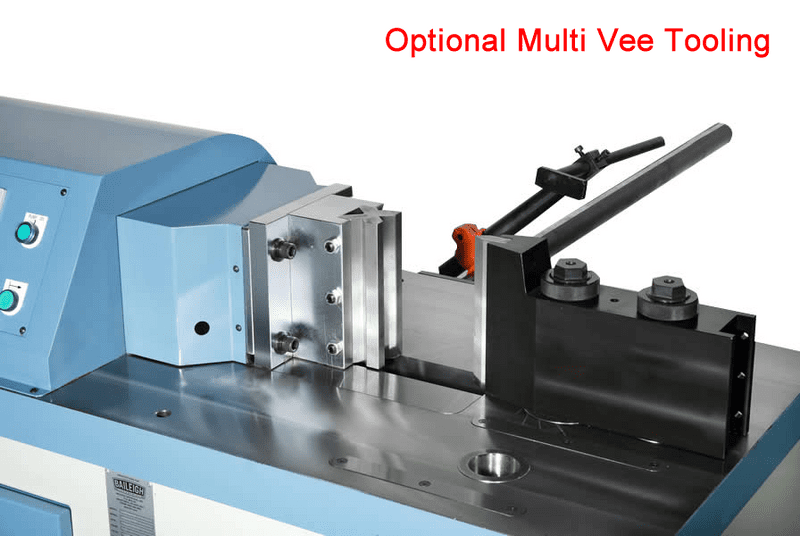

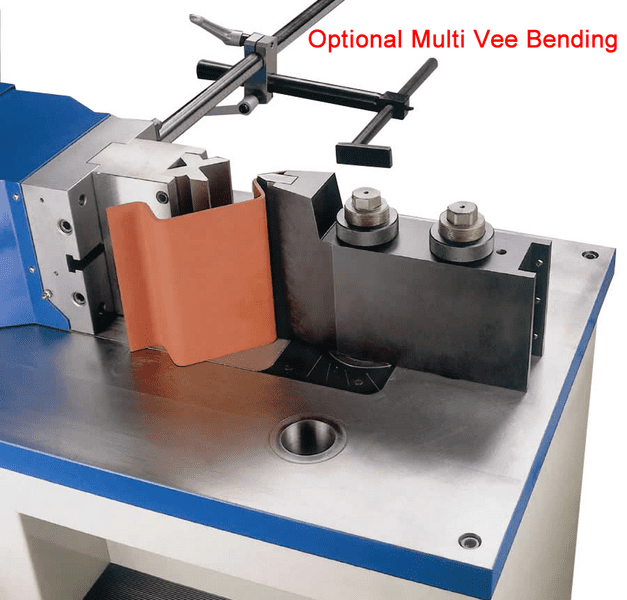

Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary
4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure
Industrial-grade hydraulic system is located on top of the machine to reduce flex and shelving in the front can hold tooling and items you might need on a daily basis
