Baileigh PH-24A 24″ Planishing Hammer

Original price was: $1,359.00.Current price is: $1,155.15.

Maximum Pressure (PSI): 90 - 120 Psi.
Throat Depth: 24"
Aluminum Capacity (Gauge): 14 ga.
Tooling Height Adjustment (In.): 1-1/2"

Baileigh PH-24A 24″ Planishing Hammer

The Baileigh PH-24A 24″ Planishing Hammer can transform wrinkled or dented metal into smooth finished products. A great value, the PH-24A can also do light metal shaping on soft materials. It has a quick change set up on the upper dies and a deep throat that works to the middle of most panels. Easy to-reach, adjustable flow control valve allows the user to deliver the proper BPM needed for any job. Operates on standard shop air.

Features:

  • 24” throat depth
  • 16-gauge mild steel capacity for finishing
  • Lands 4,600 beats per minute

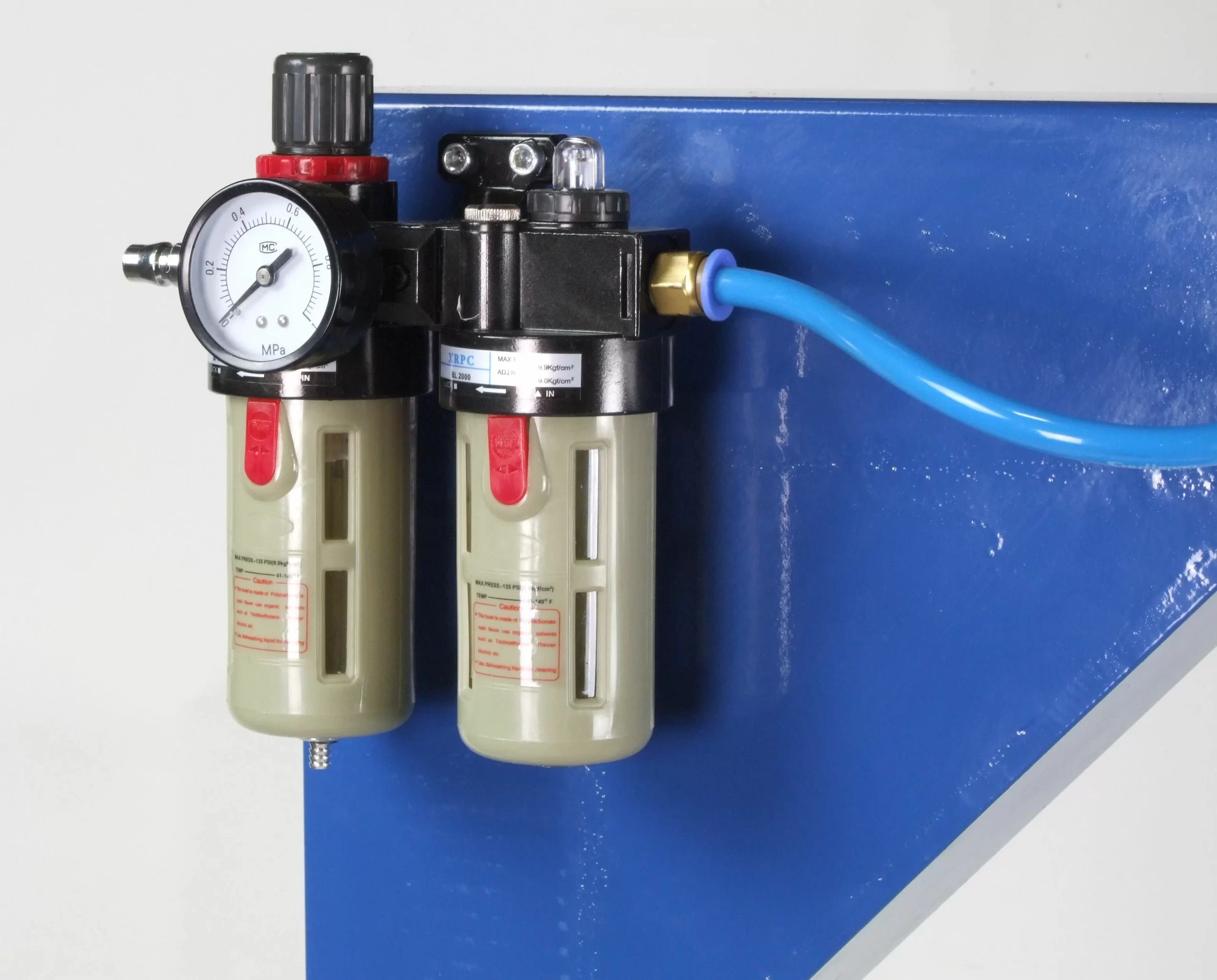

  • Requires 90-120 psi to operate
  • You can adjust the material opening with the handwheel at the bottom
  • Foot pedal control leaves your hands free

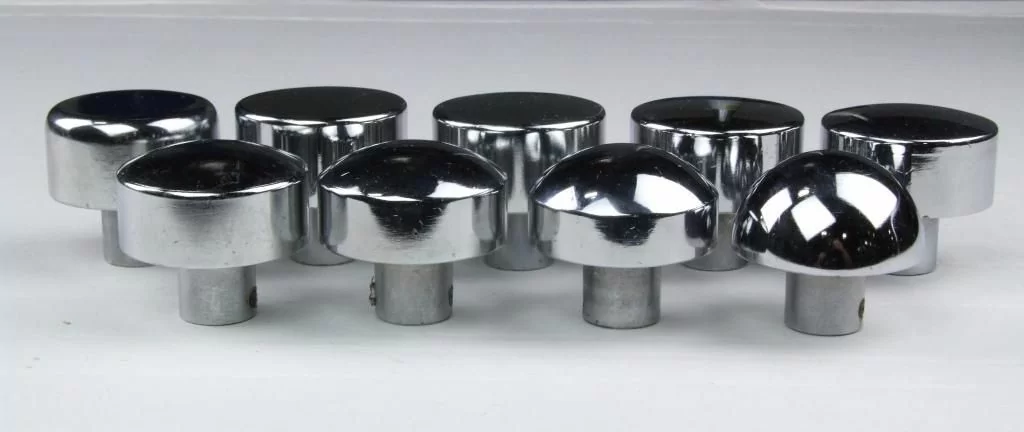

  • Comes standard with 9 radius dies: flat, ¾”, 1½”, 2”, 3”, 4”, 6”, 8”, and 12”
  • 4” x 4” fully welded frame keeps the machine stable so that force is transferred directly to the material

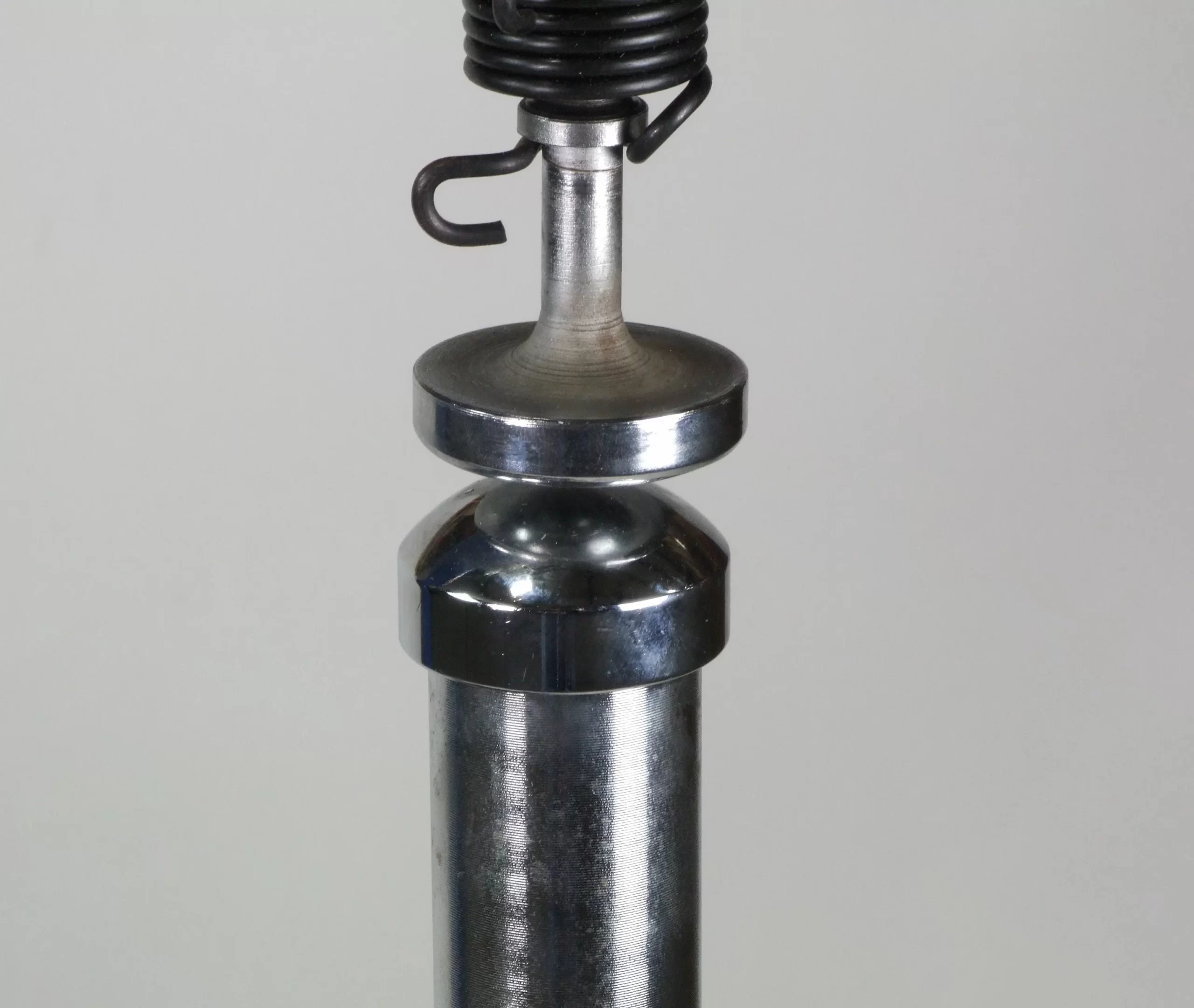

  • Stainless steel main shaft helps the machine last longer
  • Covered by a 1-year parts warranty plus lifetime technical support by phone

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 200 lbs
Dimensions 34 × 30 × 61 in
Maximum Pressure (PSI)

90 – 120 Psi.

Throat Depth

24"

Aluminum Capacity (Gauge)

14 ga.

Tooling Height Adjustment (In.)

1-1/2"
