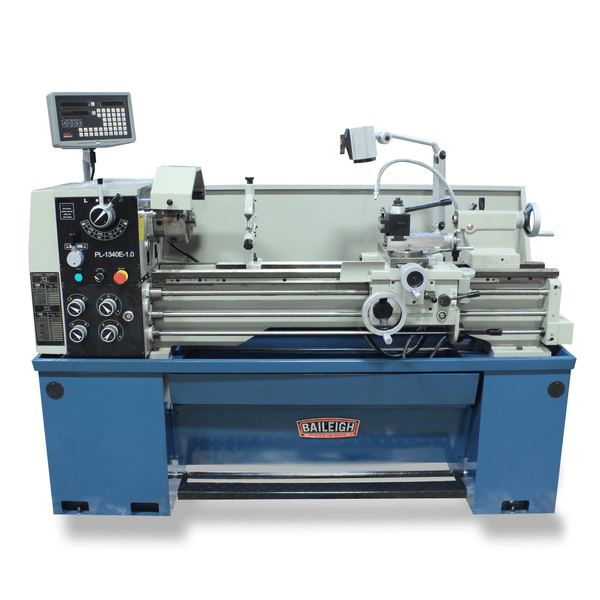

BAILEIGH PL-1340E-1.0-13×40 Metal Lathe DRO

$11,059.00

Distance Between Centers: 40"
Input Power: 220V Single Phase
Leadscrew Thread Pitch: 8 T.P.I.
Length of Gap: 5"
Nose Radius: D1-4"
Quick Change Collet Size: .625" x .625"
Range of Cross Feeds (IPR): 0.007" – 0.0187"/rev
Range of Inch Threads (TPI): 4 - 56 T.P.I.
Range of Longitudinal: 0.002" – 0.0548"/rev
Range of Metric Threads: 0.4 – 7 mm
Shipping Dimensions: 79x44x63
Spindle Bore: 1.50"
Spindle Diameter: 1.65"
Spindle Travel: 4.5"
Weight: 1515
SKU: BA9-1016618 Categories: , , ,

*39.36” distance between centers
*8 speeds: 70 to 2,000 rpm
*220V 1-phase motor
*13” swing
*1.5” spindle bore

Features:

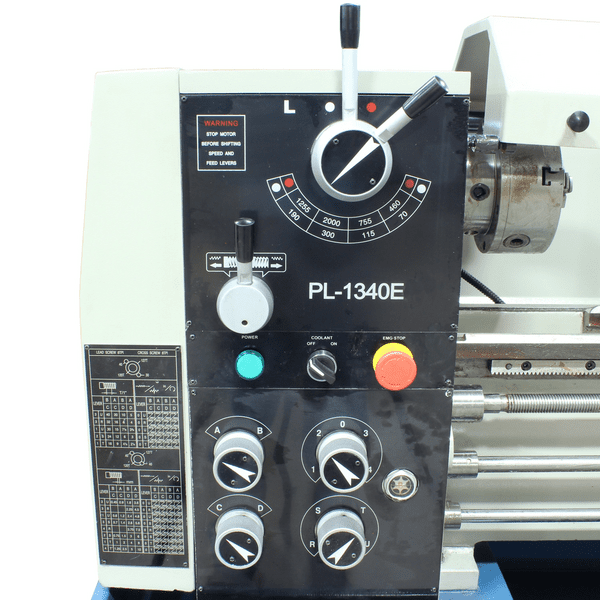

Runs on 220-volt single-phase power and 8 spindle speeds, from 70 to 2,000 rpm
Digital readout (DRO) comes hooked up and helps with repeatability

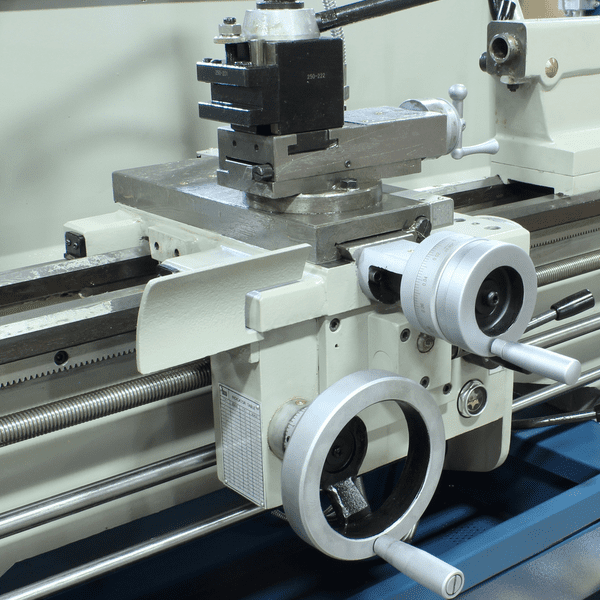

Quick-change tool post saves you the trouble of screwing and unscrewing tool sets with a Halogen work light that comes standard
Precision-ground and hardened ways offer years of tight tolerances
Can cut both metric and standard threads
3-jaw and 4-jaw chucks can hold square and rounded materials
Face plate lets you bolt large but not long pieces in place

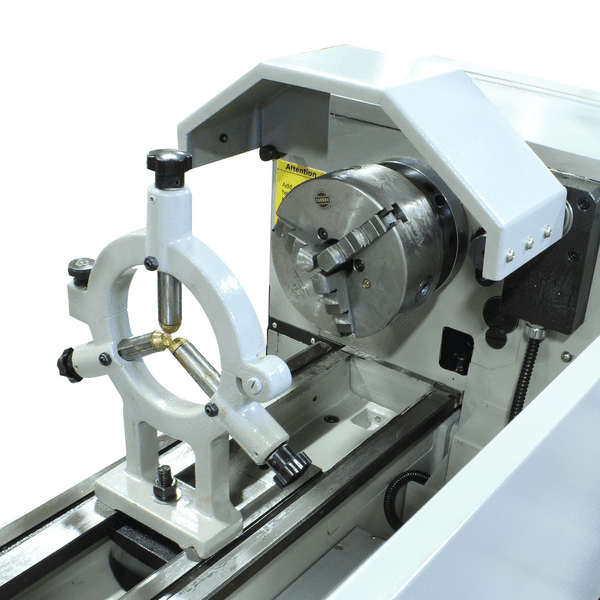

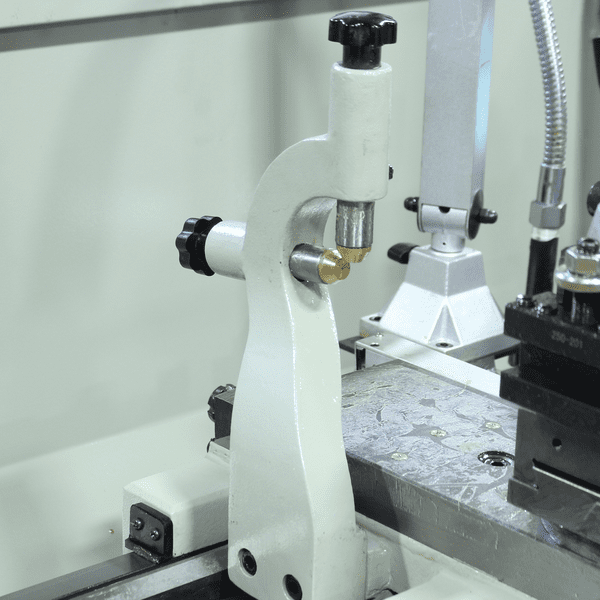

Steady rest and follow rest brace the shaft and help prevent wobbling
Foot brake makes it easy to stop the machine in an emergency

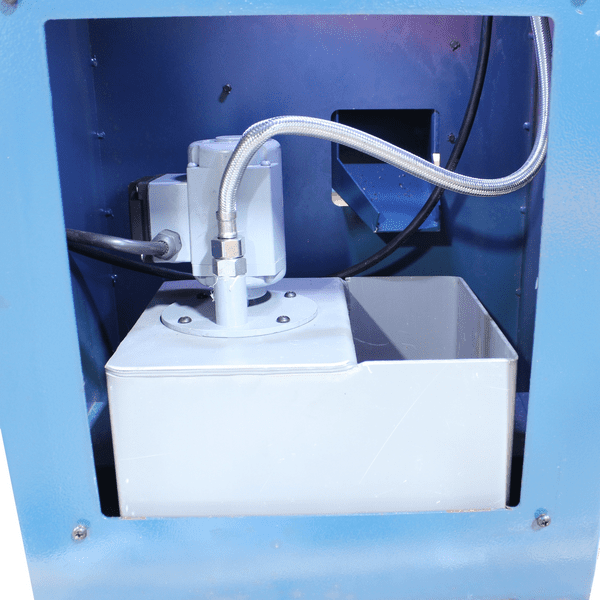

Integrated coolant system extends the lathe’s lifetime of use and rigid castings ensure smooth chatter-free cuts and prolong tooling life

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1515 lbs
Dimensions 81 × 44 × 63 in
Distance Between Centers

Input Power

Leadscrew Thread Pitch

Length of Gap

Nose Radius

Quick Change Collet Size

Range of Cross Feeds (IPR)

Range of Inch Threads (TPI)

Range of Longitudinal

Range of Metric Threads

Shipping Dimensions

Spindle Bore

Spindle Diameter

Spindle Travel

Weight
