Sale!
, , ,

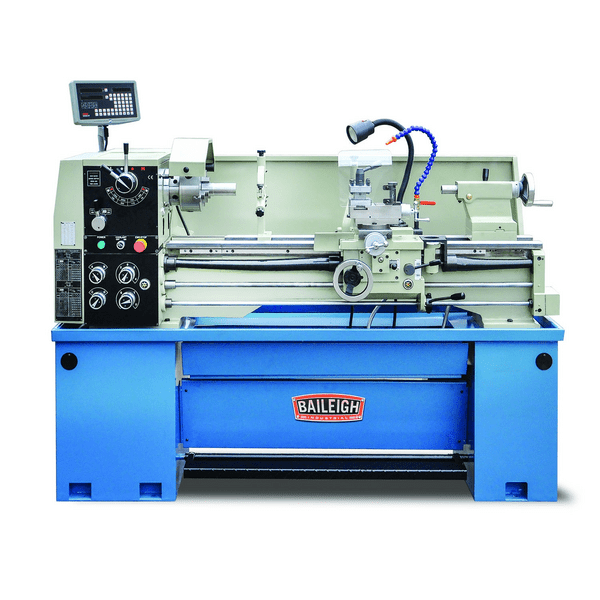

BAILEIGH PL-1440E-1.0-14×40 Metal Lathe DRO

Original price was: $14,999.00.Current price is: $12,749.15.

Distance Between Centers: 40"
Input Power: 220V / 1-phase
Leadscrew Thread Pitch: 4 T.P.I.
Lead Screw Diameter: Inch
Longitudinal Feeds Imperial: .0012" – .0294"/rev.
Nose Radius: D1-4"
Number of Spindle Speeds: 90 - 1800 rpm
Quill Taper: Morse #5
Shipping Dimensions: 79x44x63
Spindle Bore: 1.5"
Spindle Taper with Sleeve: Morse #3
Swing Over Bed: 14"
Swing Over Cross Slide: 8.6"
Swing Through Gap: 19.9"
Table Length: 40"
Tailstock Spindle Travel: 4.72"
Taper in Tailstock Spindle: 1.772"
Weight: 1450
Width of Bed: 7.086"
Threads Metric: 22 / .45-7.5 mm
SKU: BA9-1016623 Categories: , , ,

*40” between centers
*90 to 1,800 rpm
*2 hp 220-volt 1-phase motor
*14” swing
*1.5” spindle bore

Features:

3 hp motor runs on a 220-volt single-phase power with 8 spindle speeds, ranging from 90 to 1,800 rpm
Precision-ground and hardened ways ensure years of tight tolerances
Digital readout (pre-installed) helps you make precise cuts
Capable of making metric and standard threads
Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter

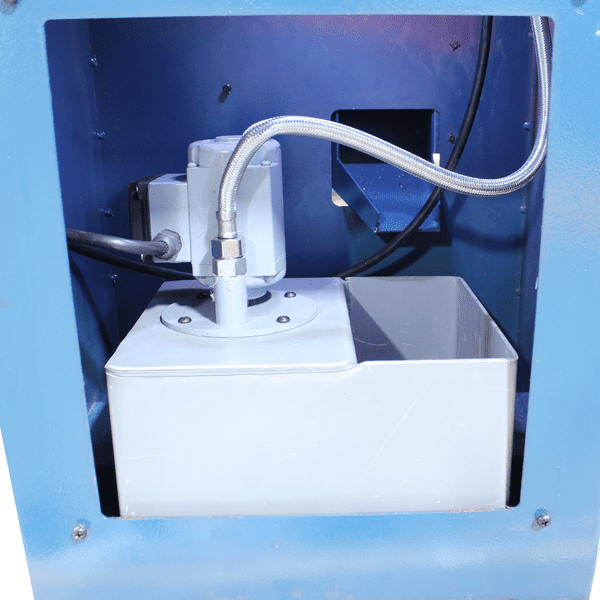

Integrated coolant system, which maintains accuracy and helps the machine last longer

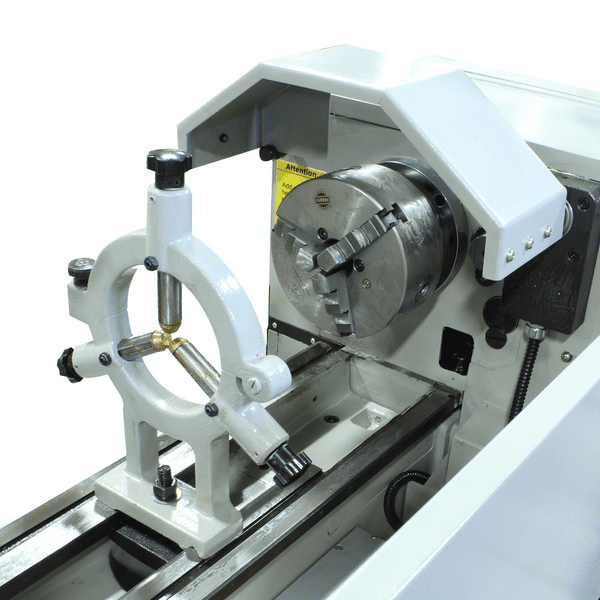

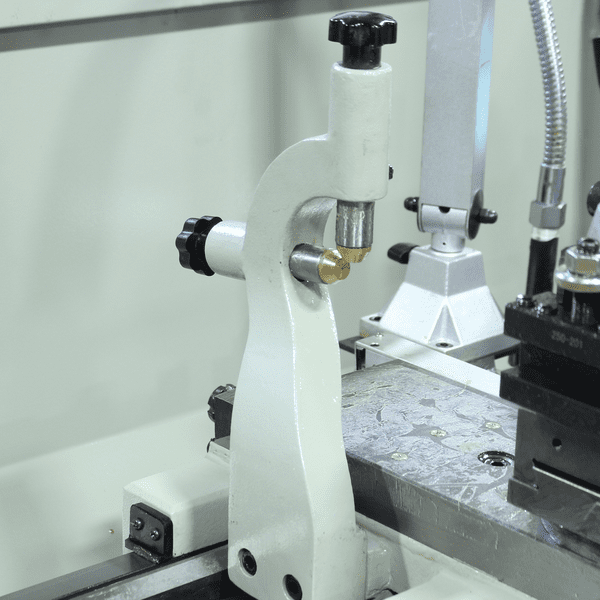

Comes standard with 3-jaw and 4-jaw chucks, headstock chuck guard with automatic safety switch, and steady rest and follow rest
Other features include face plate, safety foot brake, and Halogen work light
Recommended for small to medium shops and schools with no assembly required. Just open the crate and wire it up
Optional taper attachment for making cones is sold separately

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
