Sale!
, , ,

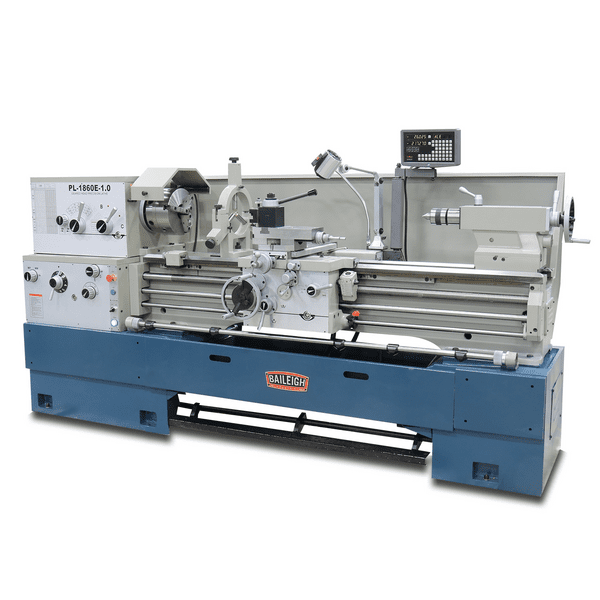

BAILEIGH PL-1860E-1.0-18×60 Metal Lathe DRO

Original price was: $36,999.00.Current price is: $31,449.15.

Center Distance: 60"
Input Power: 220V / 3-phase
Leadscrew Thread Pitch: 4 T.P.I.
Lead Screw Diameter: Inch
Longitudinal Feed Imp: 122 / .0015"-.0913" / rev.
Modular Pitch Threads Range: 21 / .25 to 10 M.P
Motor (HP): 7.5 hp
Nose Radius: D1-8
Number of Spindle Speeds: 25-1800 rpm
Quill Taper: MT7
Shipping Dimensions: 116x45x66
Spindle Bore: 3.125"
Spindle Taper with Sleeve: MT5
Swing Over Bed: 18"
Swing Over Cross Slide: 10-3/4"
Swing Through Gap: 27.5"
Tailstock Spindle Travel: 6"
Weight: 5650
Width of Bed: 13-1/8"

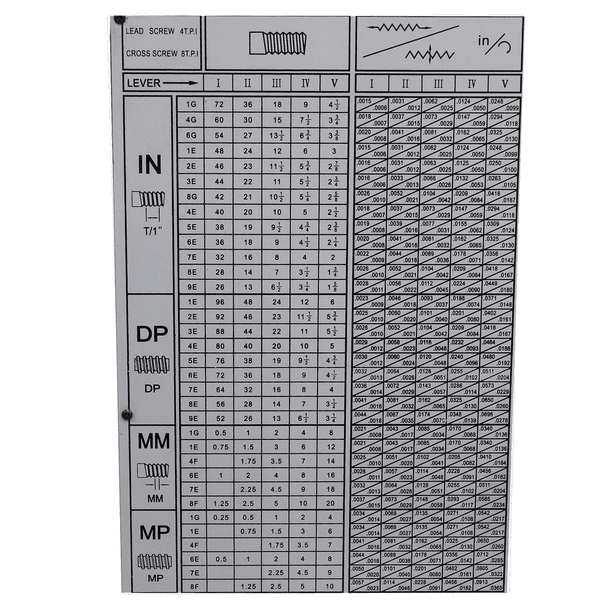

Threads Diametrical: 45 / 3-1/2 to 96 D.P
Threads Imperial: 61 / 1-5/8 to 72 T.P.I
SKU: BA9-1016624 Categories: , , ,

*2-axis DRO
*Sheet steel and cast iron base
*60” between centers
*25 to 1,800 rpm
*7.5 hp 220V 3-phase motor

Features:

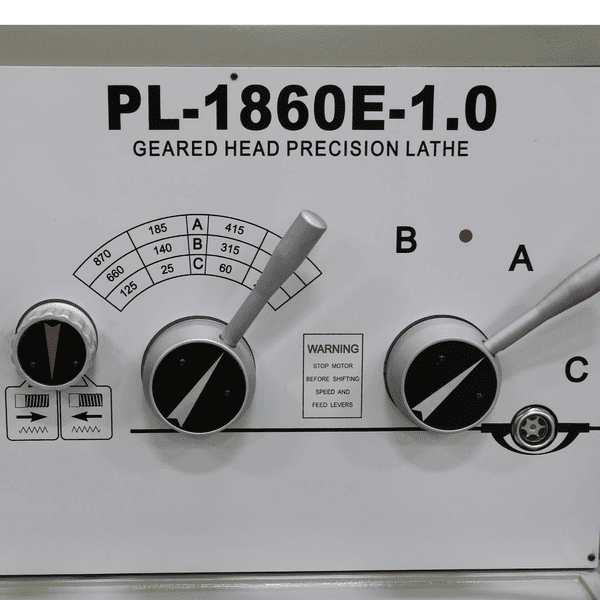

7.5 hp motor runs on 220-volt 3-phase power and 12 spindle speeds from 25 to 1,800 rpm
Perfect for shops or schools that need more capacity on a budget with no assembly required

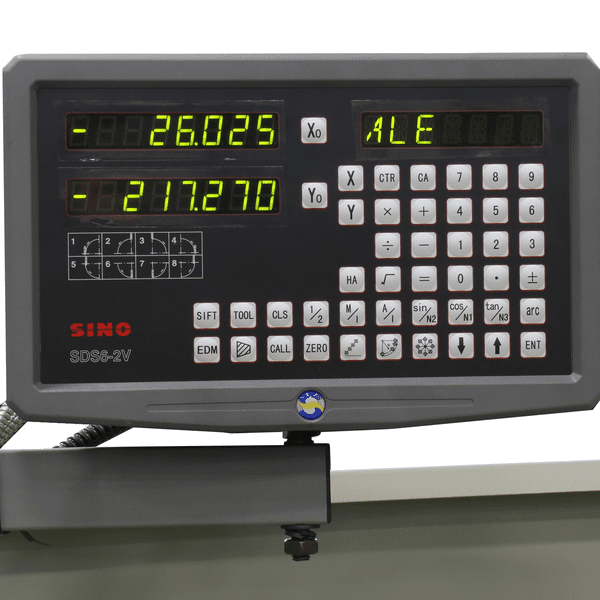

2-axis digital readout (DRO) system
Precision ground, hardened, and then polished to ensure smooth movement
Cross-ribbed bed adds strength and stability

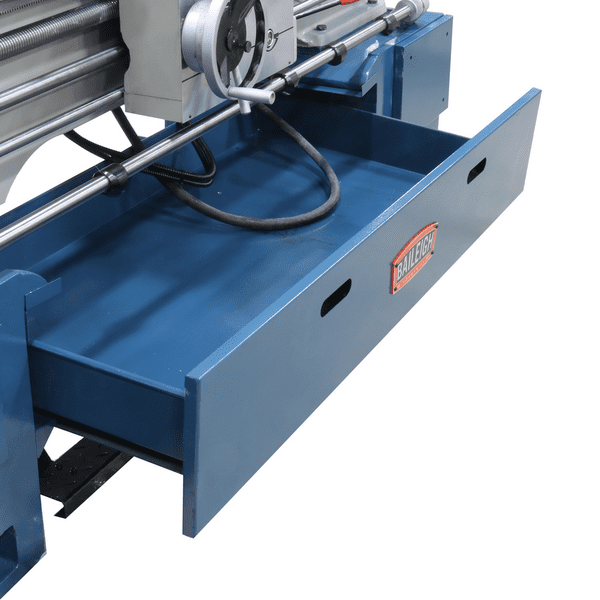

Cast iron and sheet steel base supports the main frame and will stand up to years of use
Gap lathe design allows you to remove a section of the slide for slightly more diameter

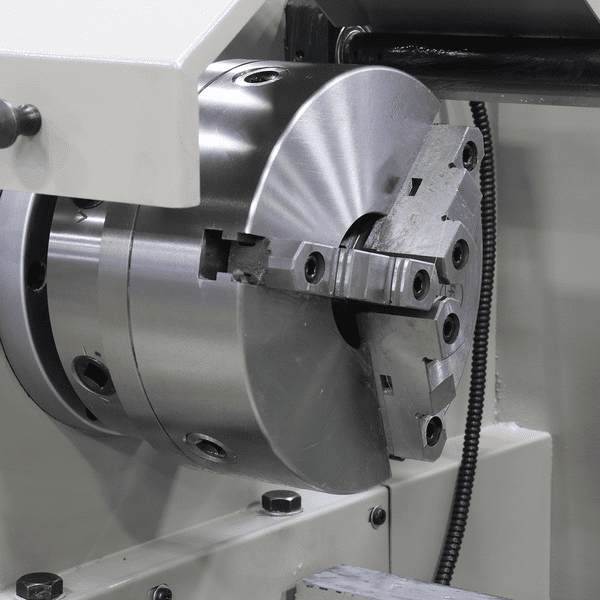

Comes standard with 3-jaw universal chuck (8”) and 4-jaw chuck (13”), Headstock chuck guard with automatic safety switch, and 8″ back plate

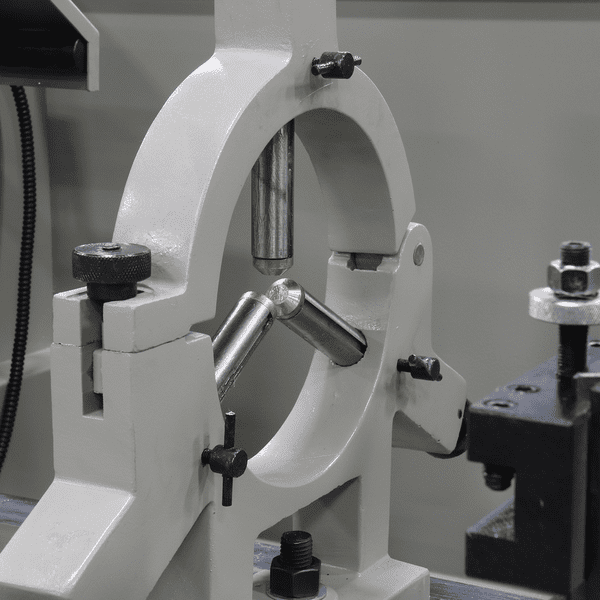

Other features include steady rest and follow rest, Emergency foot brake, integrated coolant system with rear splash guard, and Halogen work light

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 5650 lbs
Dimensions 116 × 45 × 66 in
