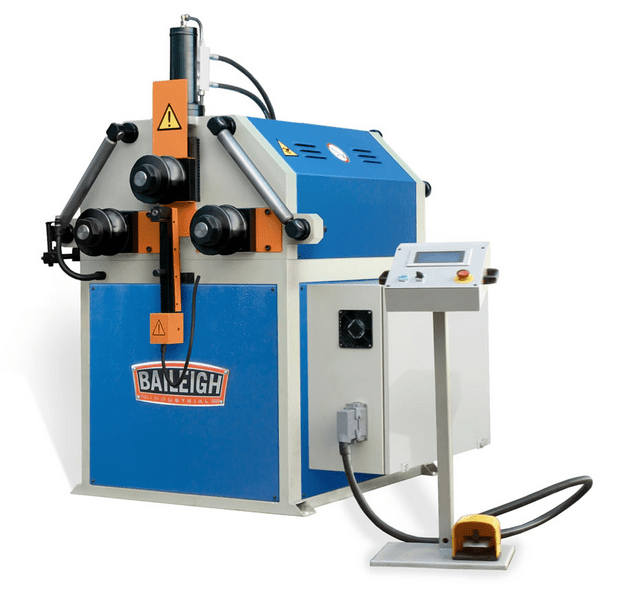

Features:
Runs on 220-volt 3-phase power
Bends up to 2.5″ round tube and 2” schedule 40 pipe
Efficient double-pinch design includes 3 driven rolls
You can control the roll speeds—4 speeds on top roll and 2 speeds on bottom rolls—to suit the needs of your particular project
Choose between progressive (profile moving) or direct (profile stopped) top roll movement
Hydraulic lateral guide rolls, with angle-correcting tools, calibrate to accept 75 different profiles
Arc meter radius gauge eliminates scrap material at the beginning and ends of bent pieces, reducing costly waste
Interchangeable bottom rolls increase versatility
Touchscreen control mounted on podium combines intuitive design with industrial-grade durability
Internal memory stores up to 40 programs with 24 bends per program
