Sale!
, , , ,

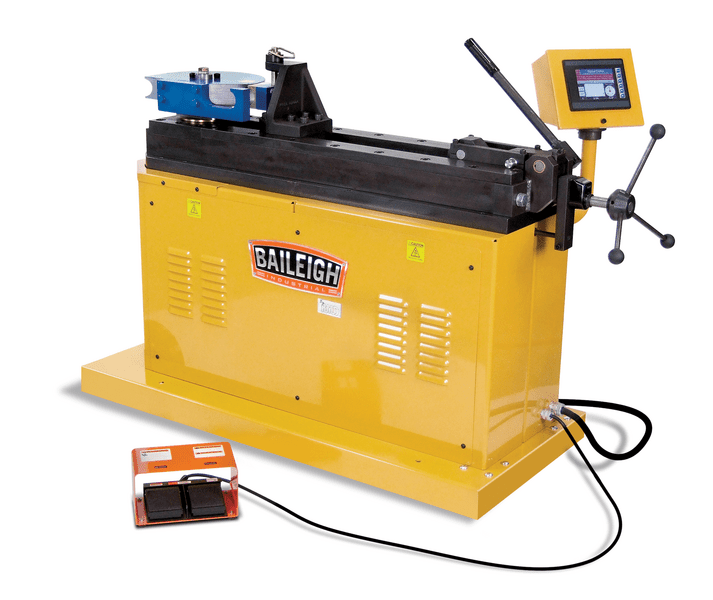

BAILEIGH RDB-350 BENDER, 220V, PRG

Original price was: $26,379.00.Current price is: $22,422.15.

Chromoly Round Tube Wall: 2.5" (.125)
Input Power: 220V / 3-phase
Minimum OD: Inch
Round Pipe Sch. 40 Capacity: 2.5"
Round Tube Capacity: 3" (.187)
Shipping Dimensions: 78x45x80
Square Tube Capacity: 3" (.125)
Weight: 1435

*220V 3-phase rotary-draw bender
*2.5” schedule 40 pipe capacity
*24” CLR maximum
*Stores 170 bend programs

Features:

Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness
24” centerline radius maximum and bends to 360° in one shot, both left and right
You can program the desired angle, material springback, and bend speed for easy repeatability
Programmer can also keep track of rotational orientation

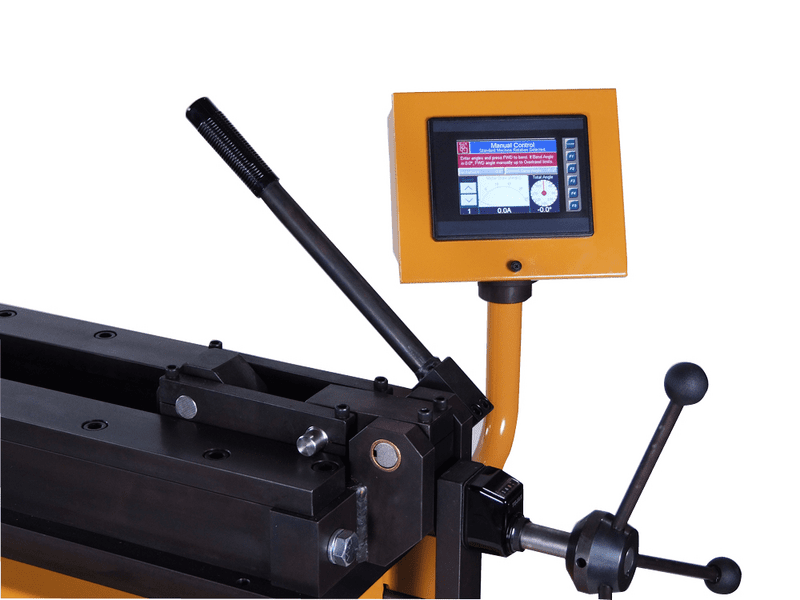

Touchscreen controller designed for user-friendly programming
320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
Internal memory can store up to 170 programs of 10 bends per program
Unlimited program storage/backup via the micro-SD port (standard 2CB SD card)

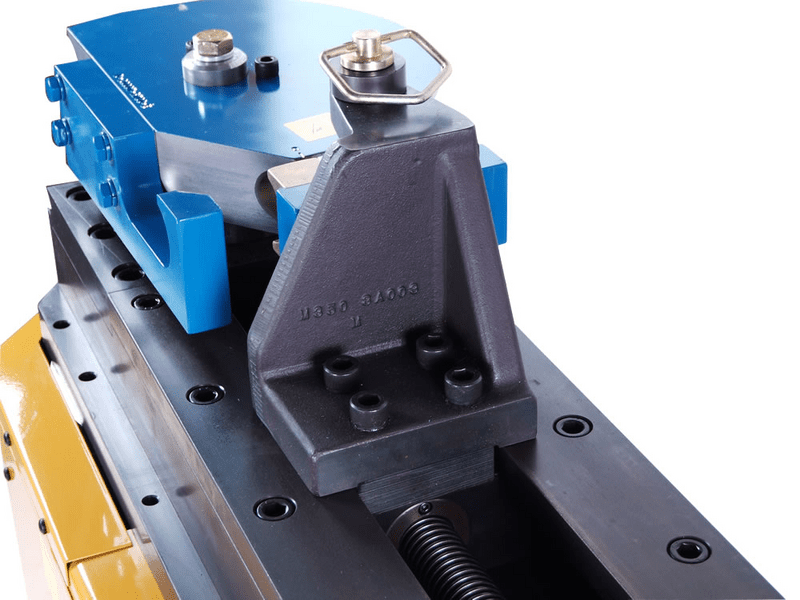

Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs
Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1435 lbs
Dimensions 78 × 45 × 80 in
