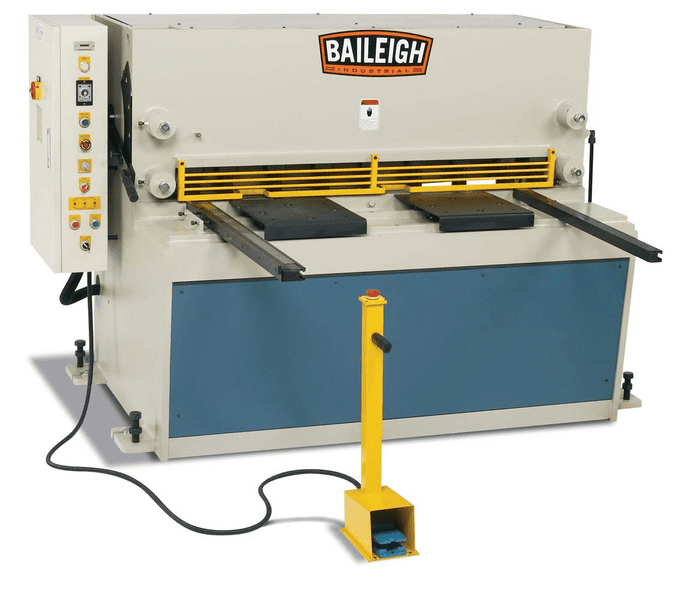

BAILEIGH SH-5203-HD Hydraulic Shear

$38,159.00

Front Gauge Capacity: Inch
Shearing Length Capacity: 52"
Style (Type): Hydraulic Sheet Metal Shear
Weight: 5820
SKU: BA9-1007087 Categories: , ,

Features:

15 hp motor runs on 220-volt 3-phase power with a ¼” mild steel maximum capacity and a 52” shearing length

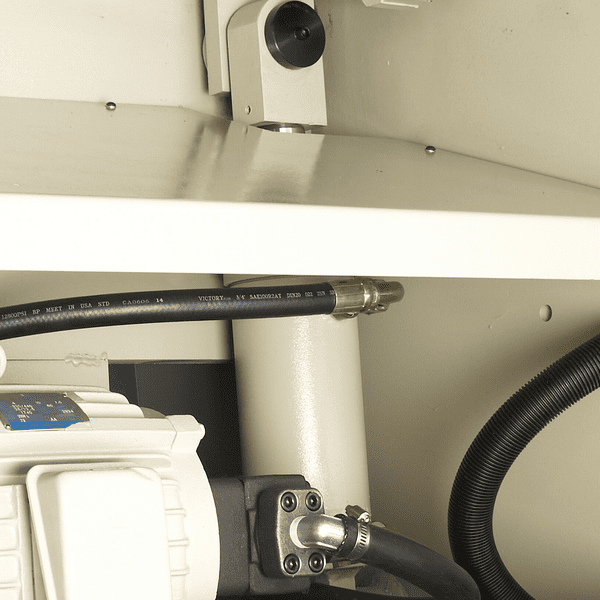

Industrial-grade hydraulic system can take anything you throw at it with a control panel that includes rake angle adjustment, jog/run/stop controls, and production counter

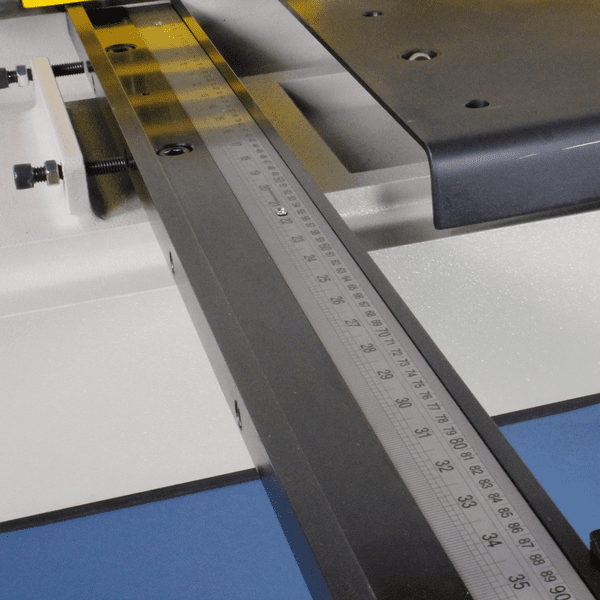

Heavy support arms keep your material square to the blade and fully welded plate steel frame ensures rigidity and prolongs blade life

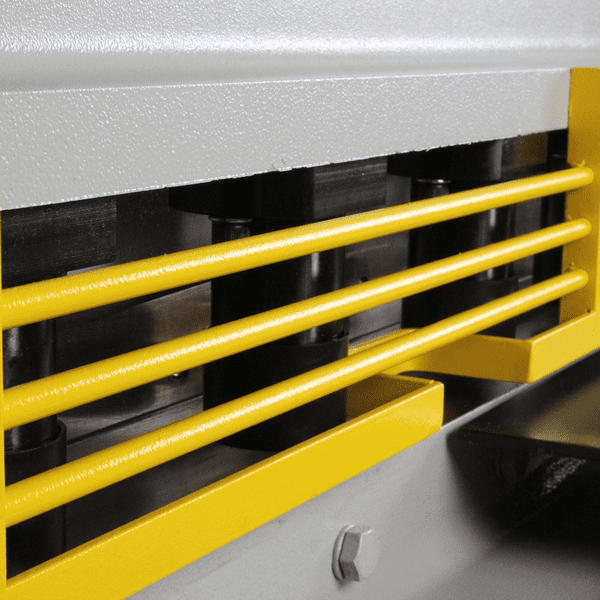

Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops
Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and Automatic cycling mode: Continuously cutting for production runs

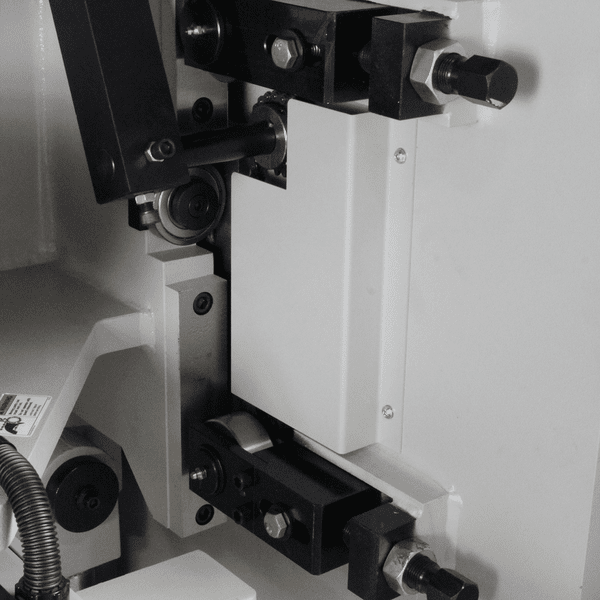

Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials

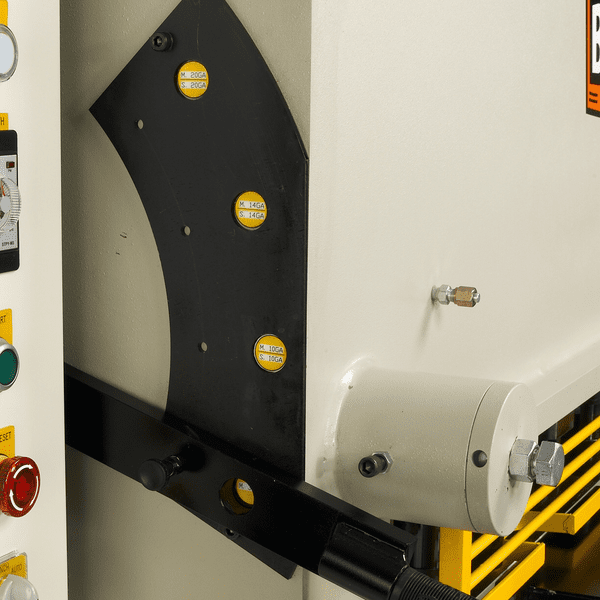

Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics
It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle
Comes standard with high carbon chromium blades – 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money

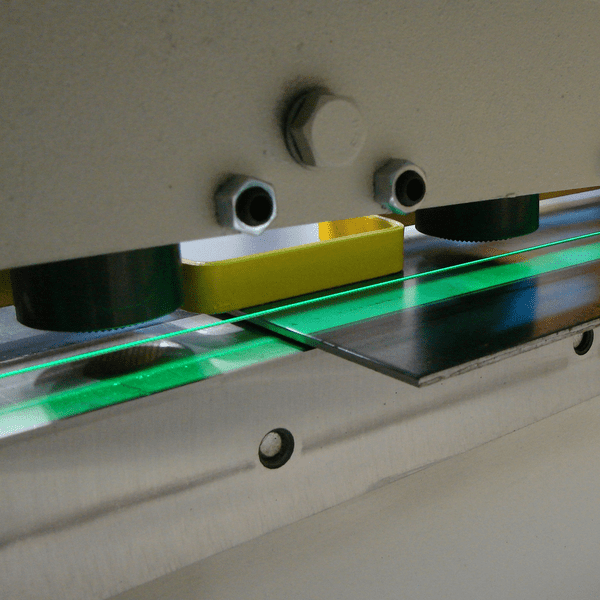

Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 5820 lbs
Dimensions 88 × 54 × 66 in
