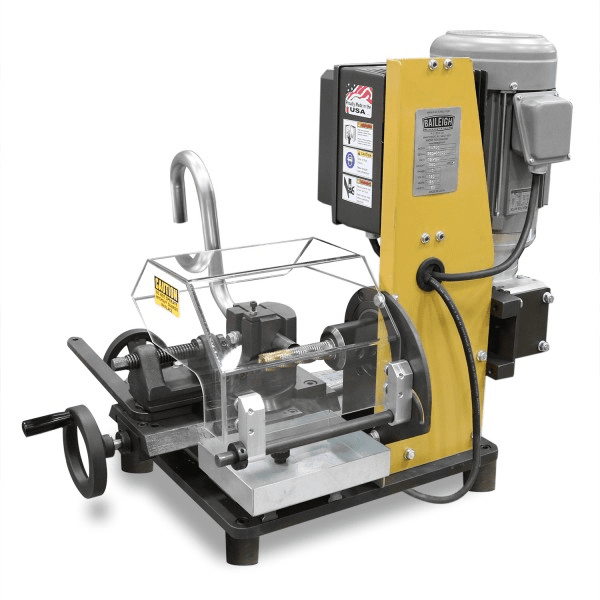

BAILEIGH TN-700-110V FIXED ENDMILL TUBE NOTCHER

Original price was: $6,839.00.Current price is: $5,813.15.

Angle Adjustment: 0 - 60 Degrees
Gross Weight: 340
Motor Amps: 2HP
Notch Capacity (in./OD): .5 - 2.5
Range of Speeds: 3200 beats / minute
Weight: 350

Features:

2 hp motor runs on 115-volt power so you can operate it almost anywhere, including in the field
Notches up to 60°

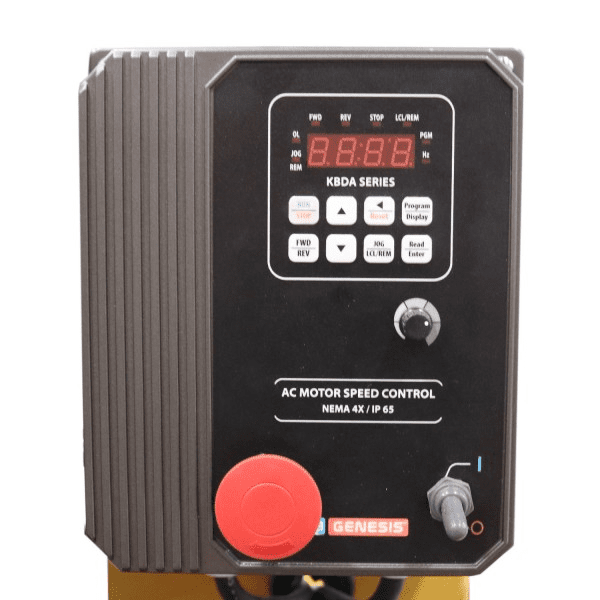

Inverter driven variable speeds allow for the optimum milling speed that balances cutting power with long machine life and low wear and tear

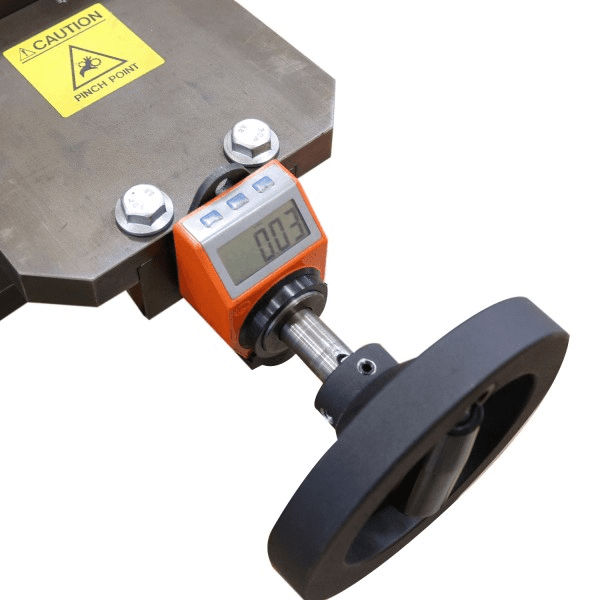

Digital readout for RPM, included

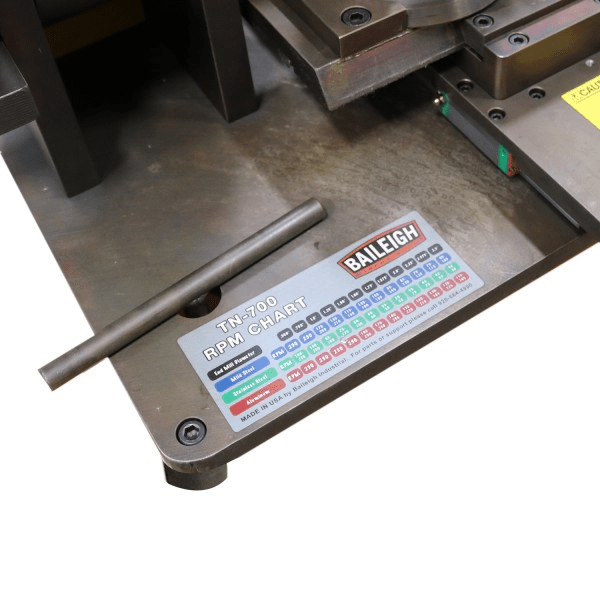

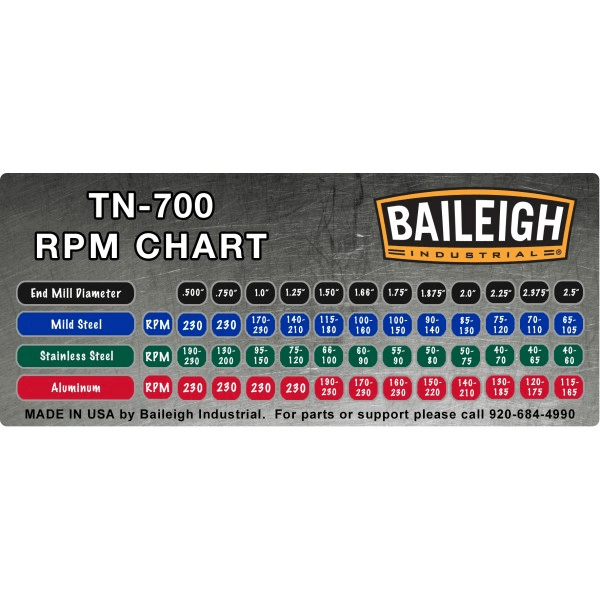

Included speed chart helps dial the perfect speed for your cut

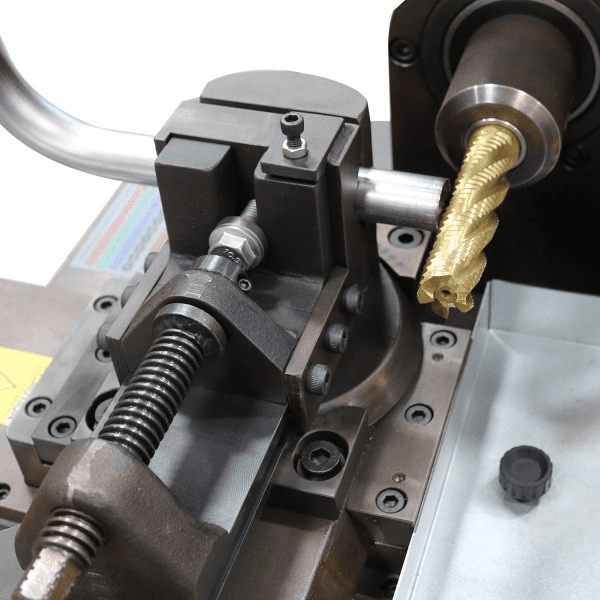

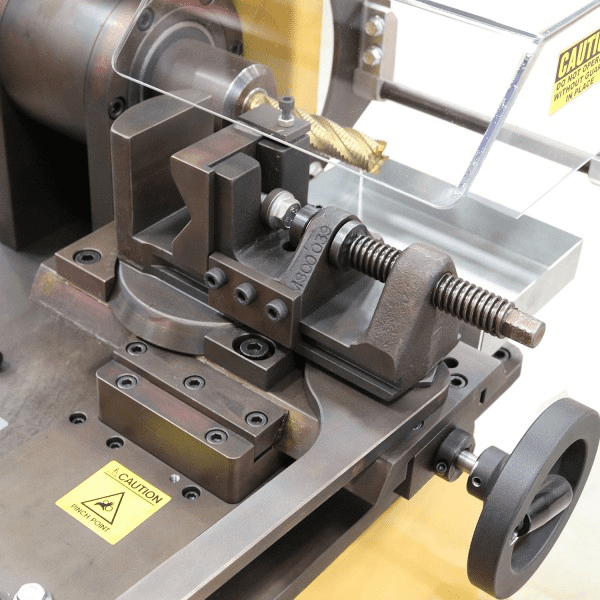

Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position
Degree or angle-finder makes it simple to check the angle and ensure repeatability
If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch
Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results
Optional portable cart with wheels, so that when you’re not using the TN-700 you can roll it out of the way

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 350 lbs
Dimensions 36.0 × 36.0 × 36.0 in
