Eckold HZ 52 Hand Operated Shrinker Stretcher

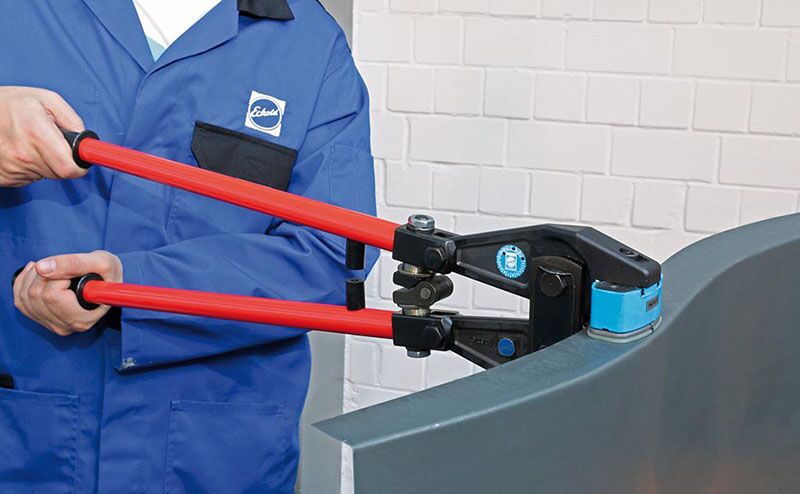

Eckold HZ 52 Hand Pliers Shrinking a Metal Panel with the Non-Marring Tooling

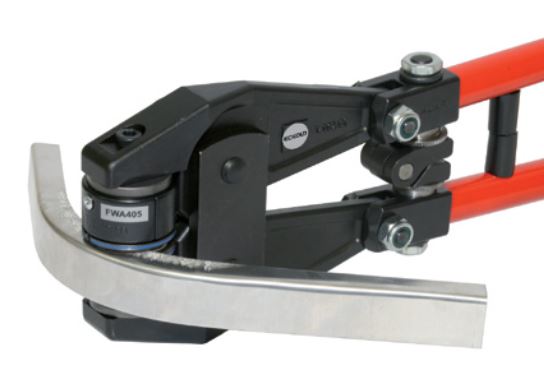

Eckold HZ 52 Hand Pliers Shrinking a Metal Part

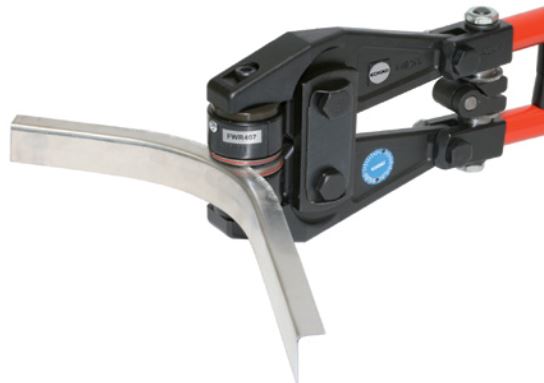

Eckold HZ 52 Hand Pliers Stretching a Metal Part

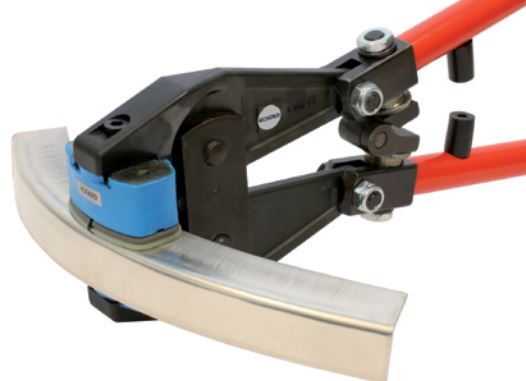

Eckold HZ 52 Hand Pliers Shrinking an Aluminum Part with the Non-Marring Tooling

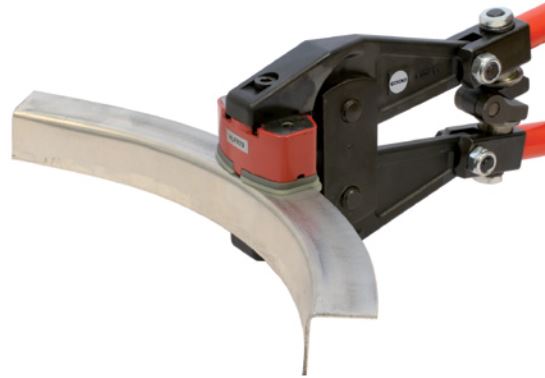

Eckold HZ 52 Hand Pliers Stretching an Aluminum Part with the Non-Marring Tooling

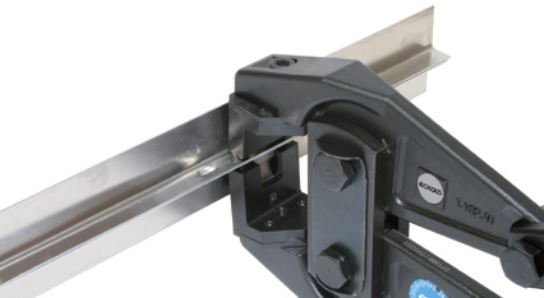

Eckold HZ 52 Hand Pliers Clinching Aluminum Parts Together

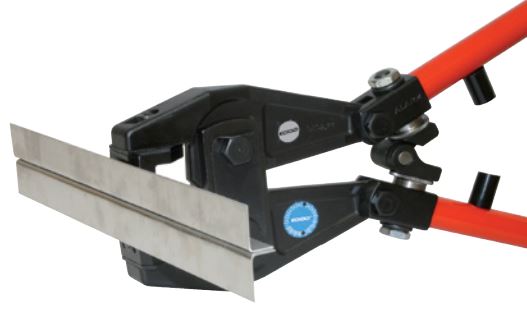

Eckold HZ 52 Hand Pliers Clinching Metal Parts Together

Metal Shaping & Forming, New Machinery, Shrinker/ Stretchers, Shrinker/ Stretchers

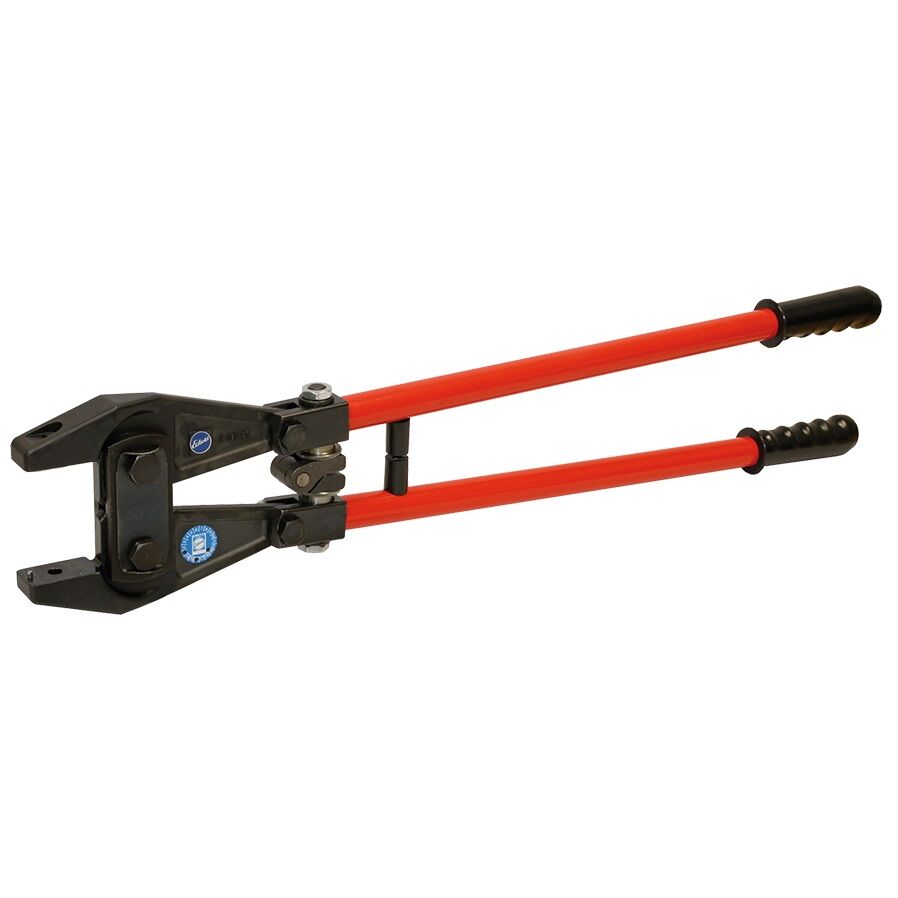

Eckold HZ 52 Portable Hand Pliers

The Eckold HZ 52 Portable Hand Pliers are ideal for on-site work and can be used in areas not accessible with standard shrinking and stretching machines, even if the sheet metal part is already mounted! The HZ 52 has a throat depth of 1.85″ / 47mm and can easily handle materials up to 20 gauge (.039″ / 1 mm) mild steel. The hand-held pliers can also be used for clinching to join sheet metal without the need for welding or separate fixtures. The Handformer HZ 52 is specially designed for making adjustments and corrections for fitting work on construction sites.

Forming Capacities	Aluminum – 16ga / .059″ / 1.5 mm Steel – 20ga / .039″ / 1 mm
Throat Depth	1.85″ / 47mm
Dimensions	27 × 1.1 × 5.3 in
Weight	8 lbs

Categories: Metal Shaping & Forming, New Machinery, Shrinker/ Stretchers, Shrinker/ Stretchers Tag: Eckold

Eckold HZ 52 Portable Hand Pliers

HZ 52 Portable Hand Pliers Features:

Portable for taking anywhere stationary machines aren’t available
Quick-change tooling

Eckold has been a leader of shrinking and stretching technology since 1957 because they offer an unrivaled range of solutions. These machines have been an industry favorite in sheet metal forming or finishing work because they’re precise, durable, and easy-to-use. When sheet metal needs to be shaped and profiles must be bent, Eckold is your industry leader.
