Sale!
, ,

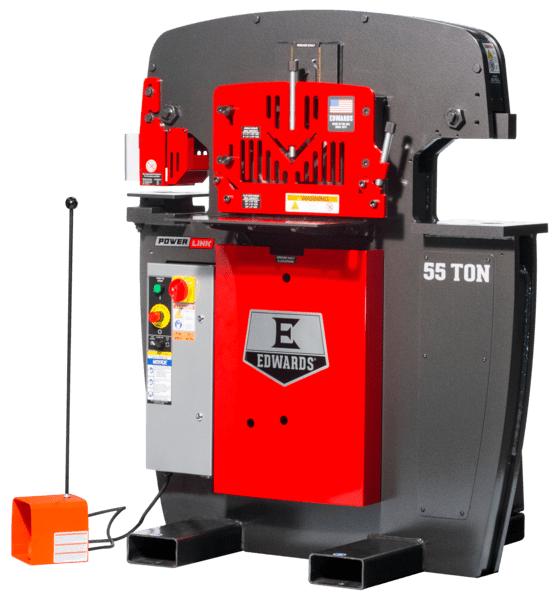

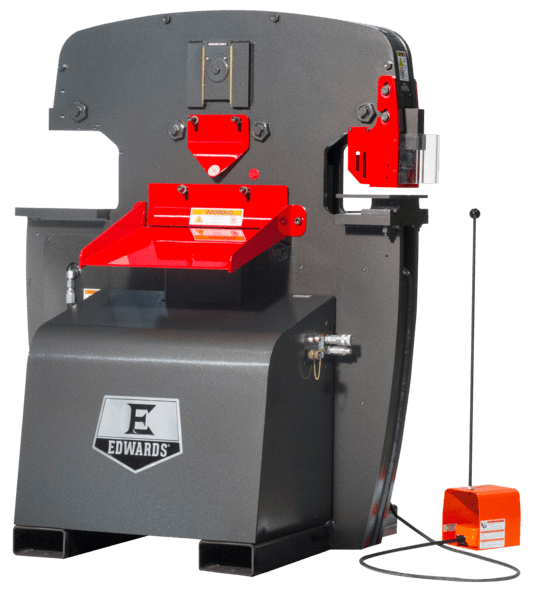

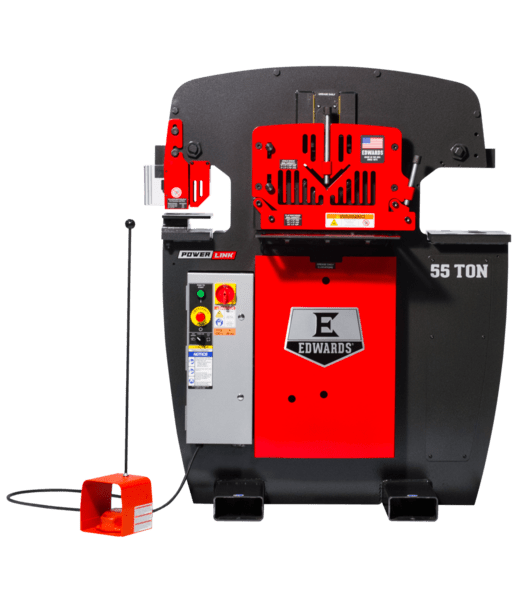

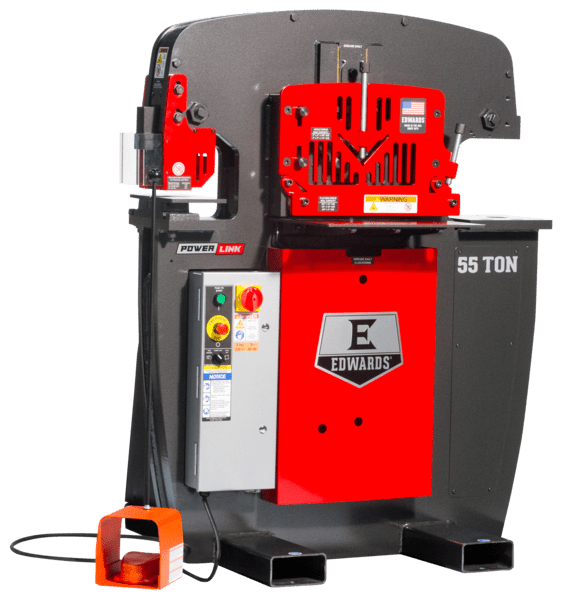

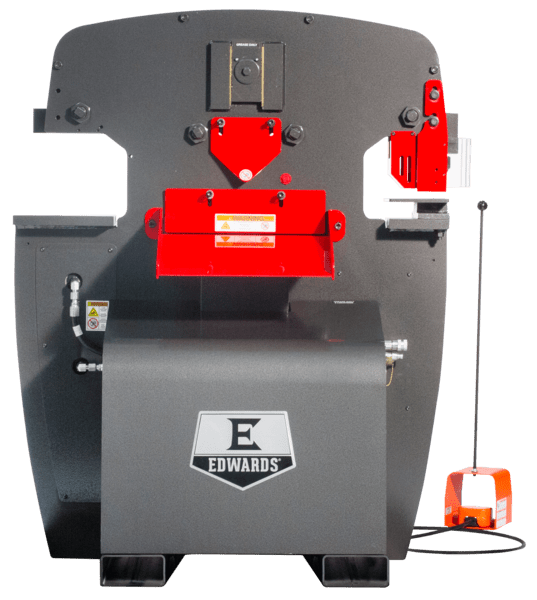

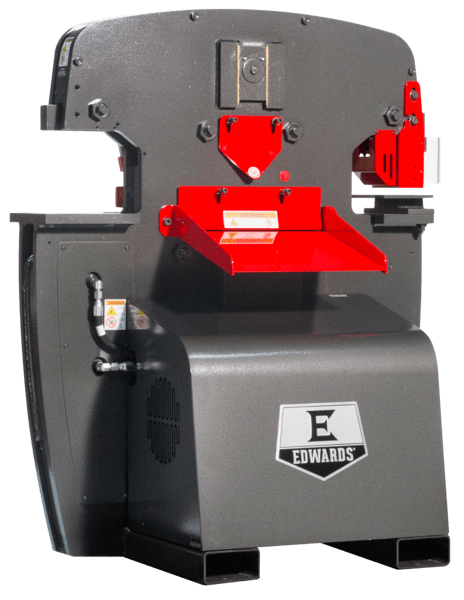

EDWARDS 55T IRONWORKER – 1PH 230V AC

Original price was: $17,409.00.Current price is: $14,797.65.

Amps: 23
Angle Shear Max Capacity 1/4: 4 x 4
Angle Shear Max Capacity: 3 x 3 x 3/8, 4 x 4 x 1/4
Angle Shear Work Height: 39-7/8
Max Capacity 1/2: 12
Max Capacity 3/4: 4
Max Capacity 3/8: 14
Max Capacity: 3/8 x 14, 1/2 x 12, 3/4 x 4
Flat Bar Shear Max Round: 7/8
Flat Bar Shear Max Square: 7/8
Flat Bar Shear Rating: 55
Flat Bar Shear Work Height: 34-1/2
Gross Weight: 2480
Hydraulics (GPM): 3-1/2
Hydraulics (PSI): Pound per square inch
Hydraulic Pump (GPM): 3-1/2
Motor Amps: 23
Motor (HP): 5 HP 1 ~ 230V
Motor Speed: 1725
Open Station Open Height: 8-1/8
Open Station Shut Height: 6-7/8
Open Station Stroke: 1-1/4
Open Station Throat Depth: 11-3/16
Open Station Work Height: 34-1/2
Open Workstation Throat Depth: 11-3/16
Open Workstation Work Height: 34-1/2
Optional Coper Notcher: 39-1/2
Punch Max Capacity: 1-1/16 diam. in 5/8 mild steel
Punch Open Height: 8-1/8
Punch Rating: 55
Punch Shut Height: 6-7/8
Punch Stroke: 1-1/4
Punch Throat Depth: 7-1/2
Punch Work Height: 36-9/16
Rating: Ton
Configurator Option Type: Base Machine
Reservoir (Gal.): 7
Shipping Dimensions: 45 x 51 x 62
Valve Pressure (PSI): Pound per square inch
Weight: 2480
SKU: ED9-IW55-1P230-A Categories: , ,

Features:

Adjustable electric stoke control
ANSI B11.5- 1988(02) Compliant Guarding
Integrated E-Stop, Lock-out/Tag-out
Interchangeable Attachments available to tailor the Ironworker to your needs
Optimized workstation heights for improved efficiency
Optional Accessories available to increase precision and efficiency

About Edwards

Today Edwards Manufacturing is primarily driven by its production of Ironworkers. The JAWS line of Edwards Ironworkers has recently been expanded with the addition of the new Edwards ELITE line. Edwards ELITE Ironworkers boast high-quality design and a host of integrated features. Both lines of Ironworkers are bolstered by our extensive line of Tooling Accessories, giving the user the ability to tailor their Ironworker to their specific needs. The Ironworker line is further complemented by a line of innovative Hydraulic Accessory Tools, powered by an Edwards Ironworker or the Edwards Porta Power, a portable hydraulic power unit. These tools expand the abilities of your shop quickly and economically.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2480 lbs
Dimensions 45 × 51 × 62 in
