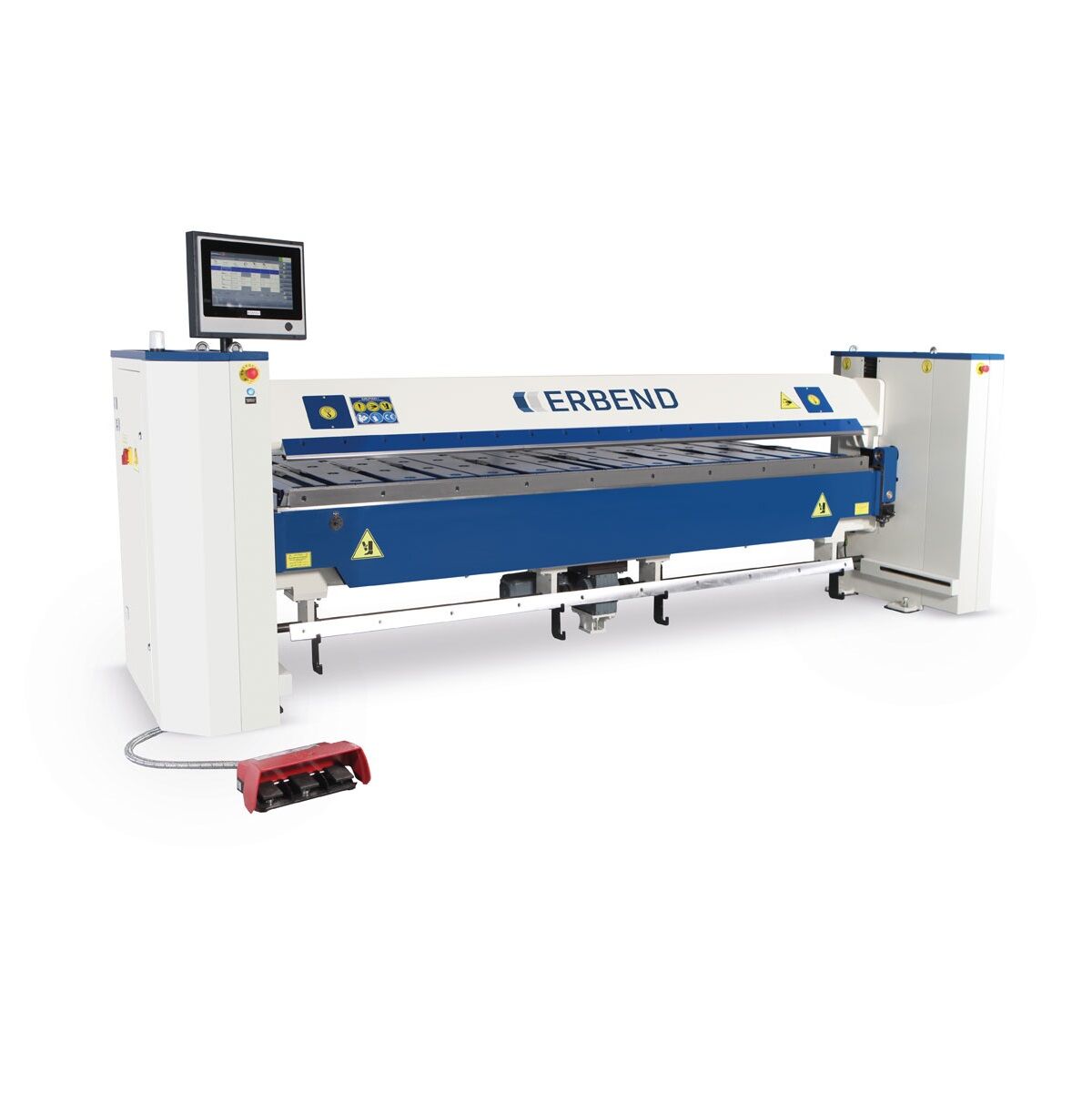

Erbend MFC Series CNC Sheet Metal Folding Machine
Standard Features:

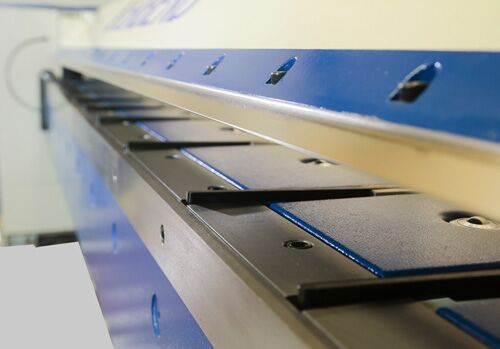

- 6.30″ (160 mm) clamping beam stroke with vertical movement and 20°sharp nose tool
- Eccentric upper beam power transmission system for rapid clamping/unclamping.

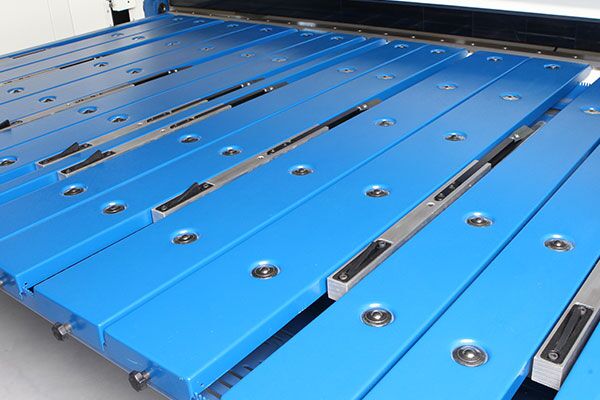

- 29.53″ (1000 mm) motorized back gauge system and sheet support table with ball casters

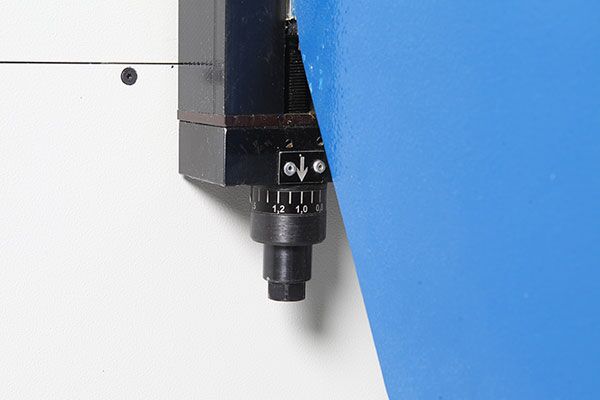

- 3.15″ (80 mm) manual folding beam adjustment

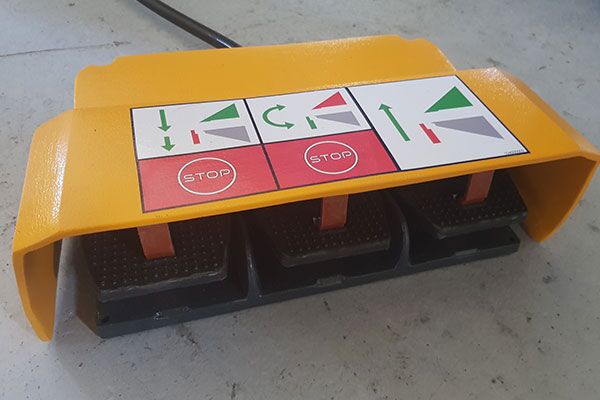

- 3 switch control foot pedal
- Front light barriers

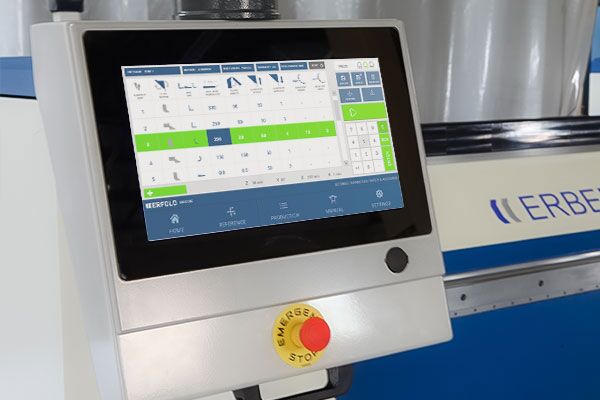

- Erfold Basic CNC line by line software on 10.6” touchscreen controller
Optional Features:
- 39.37″/ 59.06″ (1000/ 1500 mm) motorized back gauge system and sheet support table with ball casters
- 2.36″/3.54″ (60/ 90 mm) high segmented goat foot tools
- Manual crowning system.
- Servo folding beam adjustment.
- ERFOLD ADVANCED 2D/3D Cnc Graphic Control Software.
- Omega geometry upgrade on lower and folding beam.
- Manual conical backgauge finger.
- Motorized conical backgauge system.
- Pneumatic goat foot tool quick clamping system.
| Model | Folding Length | Capacity – Mild Steel | Capacity – Stainless | Capacity – Aluminum | Dimensions | Weight |
| MFC 2025 | 80.7″ (2050mm) | 12 ga. (2.5mm) | 16 ga. (1.5mm) | 0.14″ (3.5mm) | 132″ x 83″ x 73″ (3350 x 2100 x 1860mm) | 4,960 lbs (2550kg) |
| MFC 2520 | 100.4″ (2550mm) | 14 ga. (2mm) | 18 ga. (1.2mm) | 0.12″ (3mm) | 151″ x 83″ x 73″ (3830 x 2100 x 1860mm) | 6,613 lbs (3000kg) |
| MFC 3215 | 126″ (3200mm) | 16 ga. (1.5mm) | 20 ga. (1 mm) | 0.08″ (2mm) | 175″ x 83″ x 73″ (4450 x 2100 x 1860mm) | 7,275 lbs (3300kg) |
