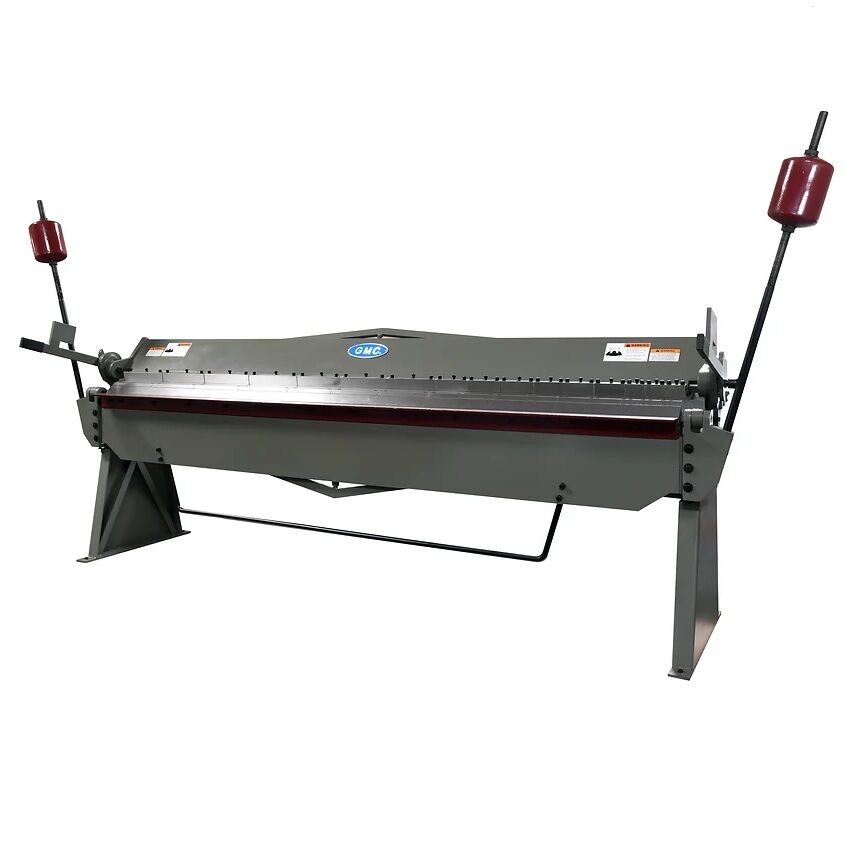

GMC 1014 Box & Pan Brake

$9,950.00

The GMC 1014 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

Bending Capacity Mild Steel – 14 Ga.
Stainless Steel – 18 Ga.
Max. Hemming Capacity 26 ga. (Mild Steel)
Max. Box Depth 6″
Bending Length 10′
Bending Angle 0° – 135°
Beam Adjustment, Front and Back 1″
Minimum Reverse Bend 1/2″
Beam Opening 1-9/16″
Weight 3,250 lbs.
Dimensions 159″ x 32″ x 77″

GMC 1014 Box & Pan Brake

The GMC 1014 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

GMC 1014 Box & Pan Brake Features

  • ISO 9002 certified
  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • Adjustable stop gauge is included to allow the operator to perform repeat bends
  • 16 Total fingers assortment:
    • 3”/1pc, 5”/3pcs, 6”/3pcs, 10”/3pcs, 12”/4pcs
  • 2 – Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • One Year Parts Only Warranty

Optional Equipment

  • One piece straight finger to convert to straight brake – $1,995
  • 2″ or 2.5″ replacement finger – $115
  • 3″ or 3.5″ replacement finger – $115
  • 5″ or 6″ replacement finger – $175
  • 10″ replacement finger – $175
  • 12″ replacement finger – $235

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
  • Lead times may vary, please contact us for exact availability
Please enable JavaScript in your browser to complete this form.
Weight 3350 lbs
Dimensions 142 × 30 × 41 in
Bending Capacity

Mild Steel – 14 Ga.
Stainless Steel – 18 Ga.

Max. Hemming Capacity

26 ga. (Mild Steel)

Max. Box Depth

6"

Bending Length

10'

Bending Angle

0° – 135°

Beam Adjustment, Front and Back

1"

Minimum Reverse Bend

1/2"

Beam Opening

1-9/16"

Weight

3,250 lbs.

Dimensions

159" x 32" x 77"

Brand

GMC
