GMC 4′ x 14 ga. Powered Slip Roller

$4,950.00$5,650.00

Max. Bending Capacities Mild Steel – 14 ga.
Stainless Steel – 18 ga.
Max. Bending Length 50″
Roll Diameter 3″
Min. Bending Diameter 3 1/2″
Roll Speed 16.5 FPM
Roll Opening 1/4″

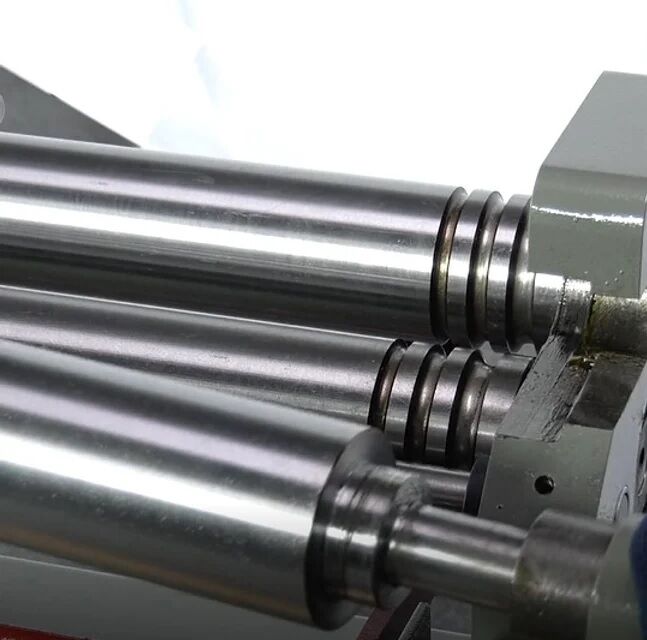

Groove Sizes 5/16”, 3/8” ,1/2”
Motor 2 HP
Weight 932 lbs
Dimensions 68″ x 29″ x 48″

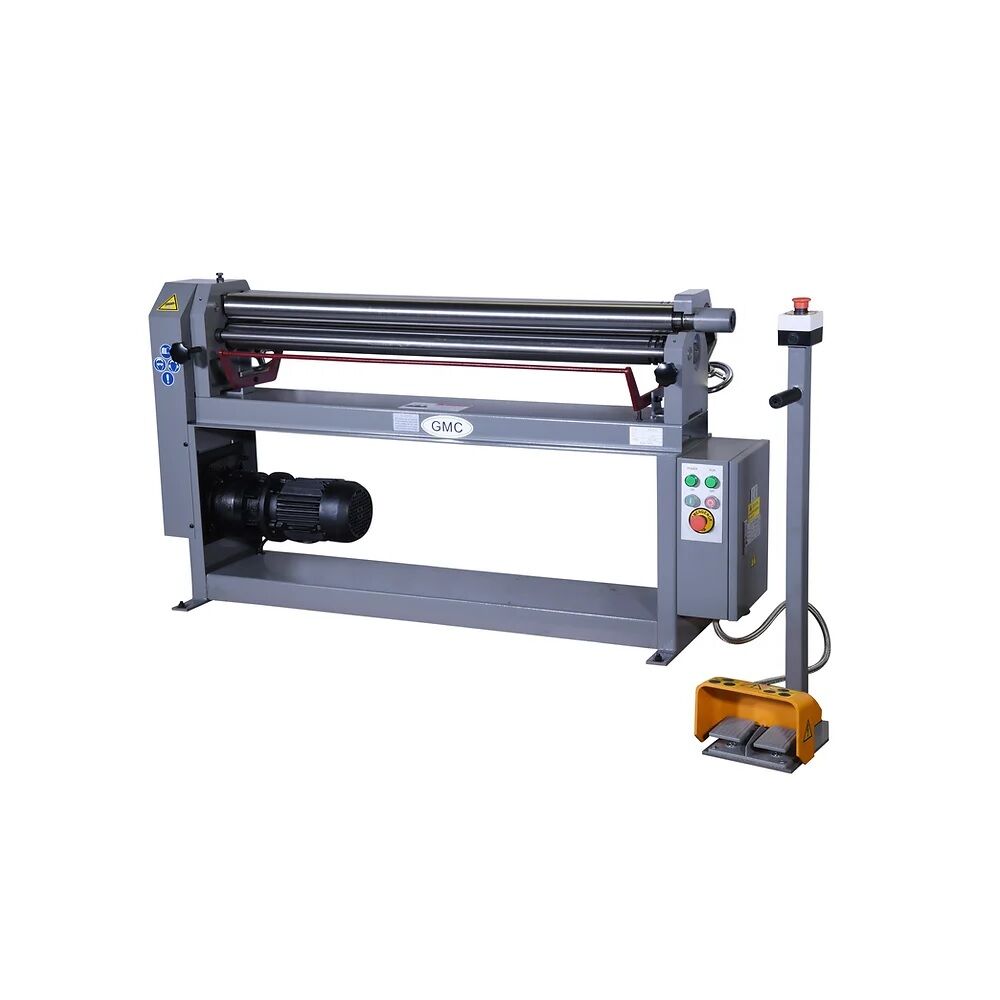

GMC 4′ x 14 ga. Powered Slip Roller

GMC’s 4′ x 14 ga. Powered Slip Rollers are made for bending and rolling 14 gauge metal sheets into cones and other cylindrical shapes. All rolls are hardened, and made of high grade alloy steel. GMC’s Powered Slip Rollers are designed to provide precise bending of various materials, including steel, aluminum, and brass, with exceptional accuracy and repeatability. A wide range of models are offered to meet diverse customer needs, from small shops to large industrial operations. One of the key features of GMC’s Powered Slip Rolls is their versatility. Rolls can be used to create a wide range of shapes, from simple curves to complex geometries. This allows customers to produce a variety of parts and components with ease, without the need for multiple machines or tools.

In addition to their versatility, GMC’s Powered Slip Rolls are also known for their durability and reliability. GMC uses only the highest quality materials in their manufacturing process, ensuring their machines can withstand the rigors of daily use in even the toughest environments. Rolls are also designed for easy maintenance, with simple and intuitive controls that allow operators to quickly and easily adjust settings as needed.

GMC 4′ x 14 ga. Powered Slip Roller Features:

  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven

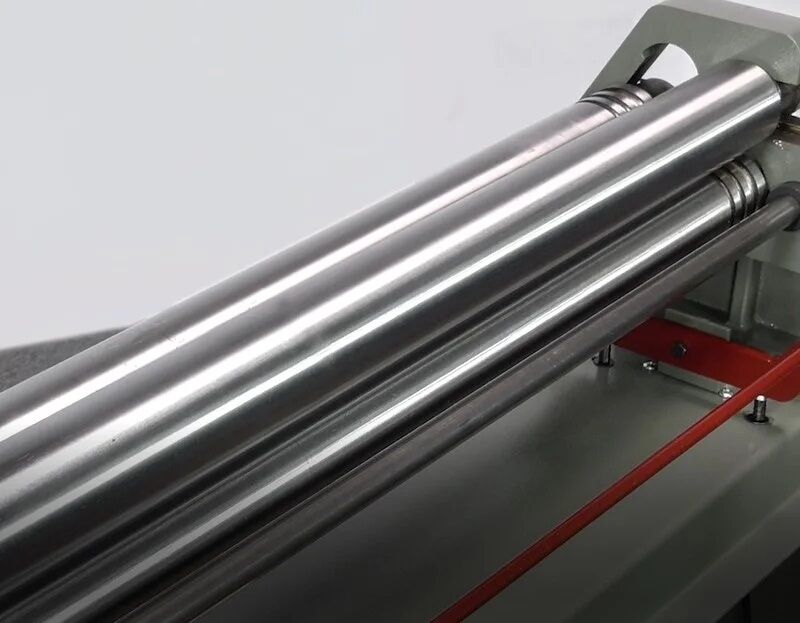

  • Precision ground rollers
  • 1” roll opening
  • All three rolls are made of high grade alloy steel, hardened up to 50 HRC
  • All rolls run forward and reverse
  • Safety type removable foot pedal
  • Overload protection and disconnect switch
  • ISO 9001 certified
  • One year warranty for parts

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
  • Lead times may vary, please contact us for exact availability
Please enable JavaScript in your browser to complete this form.
Weight 932 lbs
Dimensions 68 × 30 × 48 in
Max. Bending Capacities

Mild Steel – 14 ga.
Stainless Steel – 18 ga.

Max. Bending Length

50"

Roll Diameter

3"

Min. Bending Diameter

3 1/2"

Roll Speed

16.5 FPM

Roll Opening

1/4"

Groove Sizes

5/16”, 3/8” ,1/2”

Motor

2 HP

Weight

932 lbs

Dimensions

68" x 29" x 48"
