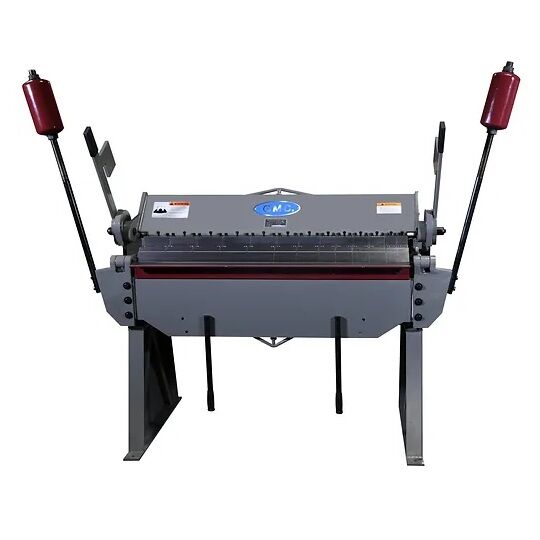

GMC 412 Box & Pan Brake

$3,950.00

The GMC 412 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

Bending Capacity Mild Steel – 12 Ga.
Stainless Steel – 16 Ga.
Max. Hemming Capacity 26 ga. (Mild Steel)
Max. Box Depth 6″
Bending Length 4′
Bending Angle 0° – 135°
Beam Adjustment, Front and Back 1″
Minimum Reverse Bend 1/2″
Beam Opening 1-9/16″
Weight 1,150 lbs.
Dimensions 82″ x 32″ x 69″

GMC 412 Box & Pan Brake

The GMC 412 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

GMC 412 Box & Pan Brake Features

  • ISO 9002 certified

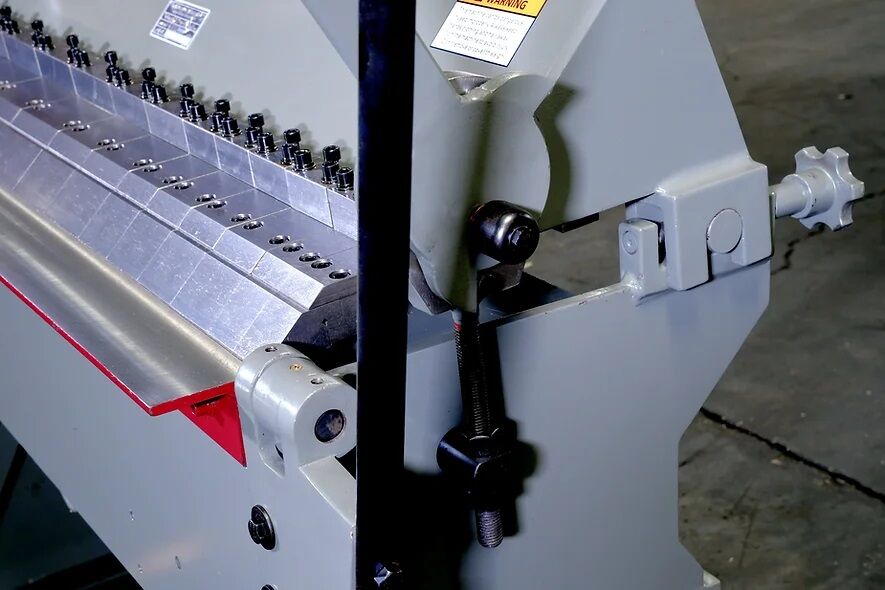

  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • Adjustable stop gauge is included to allow the operator to perform repeat bends

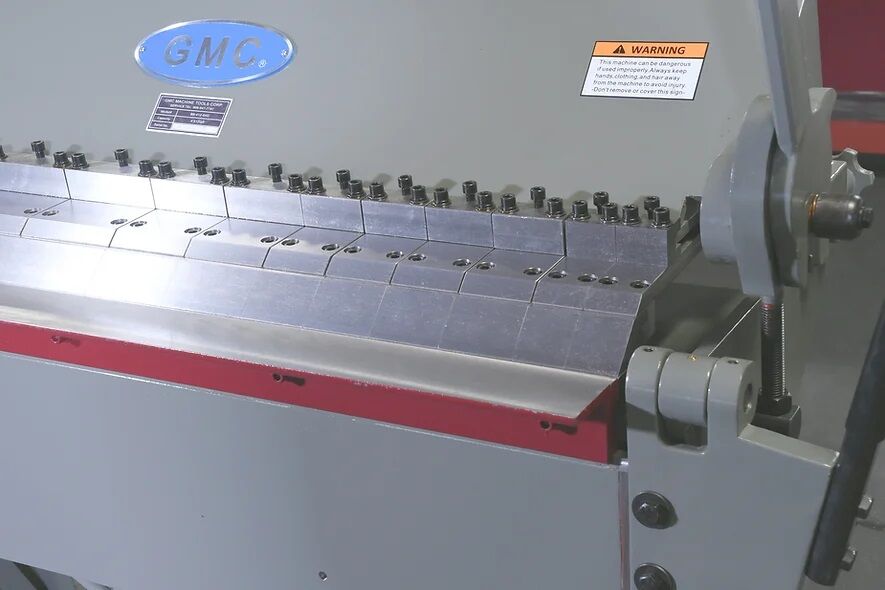

  • 9 total fingers assortment:
    • 2”/2pcs, 3”/4pcs, 4”/2pc, 25”/1pc

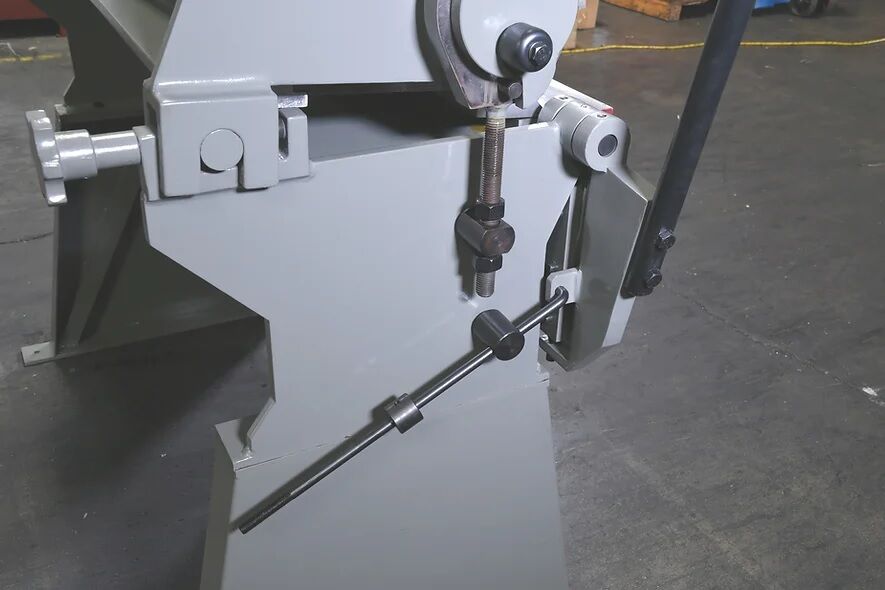

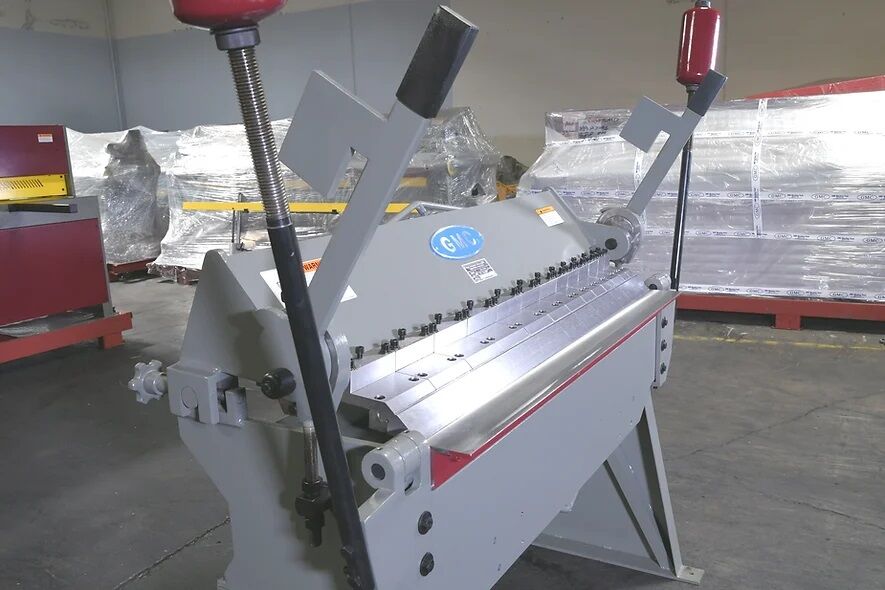

  • 2 – Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • One Year Parts Only Warranty

Optional Equipment

  • 2″ or 2.5″ replacement finger – $115
  • 3″ or 3.5″ replacement finger – $115
  • 4″ replacement finger – $135
  • 25″ replacement finger – $275

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
  • Lead times may vary, please contact us for exact availability
Please enable JavaScript in your browser to complete this form.
Weight 1265 lbs
Dimensions 67 × 30 × 40 in
Bending Capacity

Mild Steel – 12 Ga.
Stainless Steel – 16 Ga.

Max. Hemming Capacity

26 ga. (Mild Steel)

Max. Box Depth

6"

Bending Length

4'

Bending Angle

0° – 135°

Beam Adjustment, Front and Back

1"

Minimum Reverse Bend

1/2"

Beam Opening

1-9/16"

Weight

1,150 lbs.

Dimensions

82" x 32" x 69"

Brand

GMC
