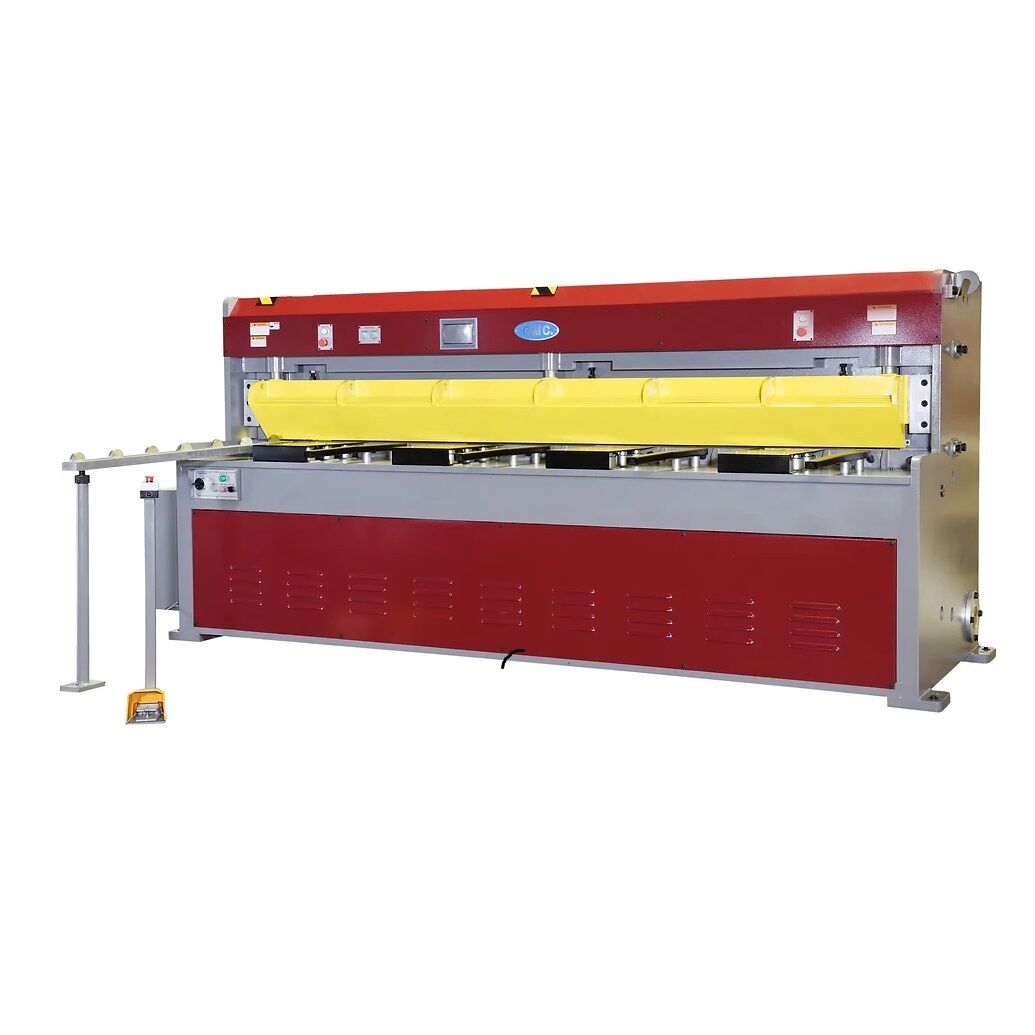

GMC HS-1025E, 10′ x 1/4″ Hydraulic Metal Shear

$33,850.00



Cutting Capacities: Mild Steel - 10’ x ¼” Stainless Steel - 10’ x 10 ga. Aluminum - 10' x 3/8"
Min. Thickness: 20 ga.
Blade Length: 10' 2"
Strokes per Min.: 10 - 12
Throat Depth: 18"
Work Table Height: 34-1/2"
Front Support Arm: 24"
Blade Rake Angle: 2 degrees
Oil Tank Cap.: 53 gal.
Main Motor: 20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL)
NC Back Gauge: 1 HP, 220V, 3 Phase
Weight: 13,850 LBS
Dimensions: 181" x 117" x 65" (with back gauge and squaring arm)

SKU: HS-1025E Categories: , ,

Standard Features

  • ISO 9001 certified
  • Taiwan machines
  • comes with go-to NC power back gauge with touch screen
  • Quick Change Blade Gap Adjustment (BGA), with gap dial
  • CE standard “OMERO” electric control system
  • Meet OSHA safety standard code
  • Shadow line for accurate straight cutting
  • Adjustable cutting length and stroke

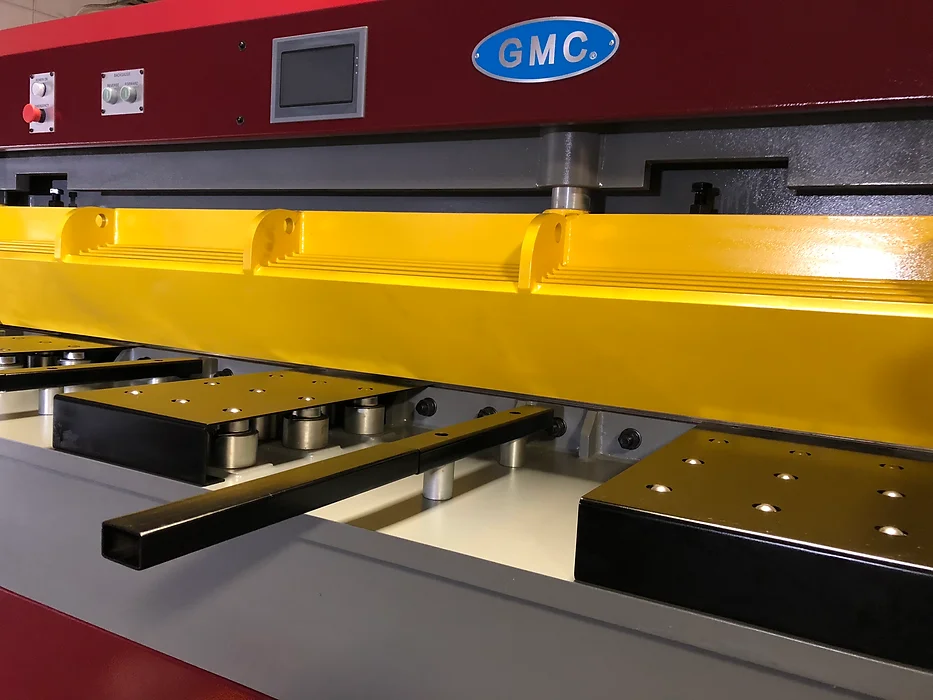

  • Ball transfer plates on worktable for easy loading workpiece
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened
    to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected & low voltage control system
  • Jog or continuous auto cycle cutting operation modes
  • One year industrial warranty for parts

Standard Equipment

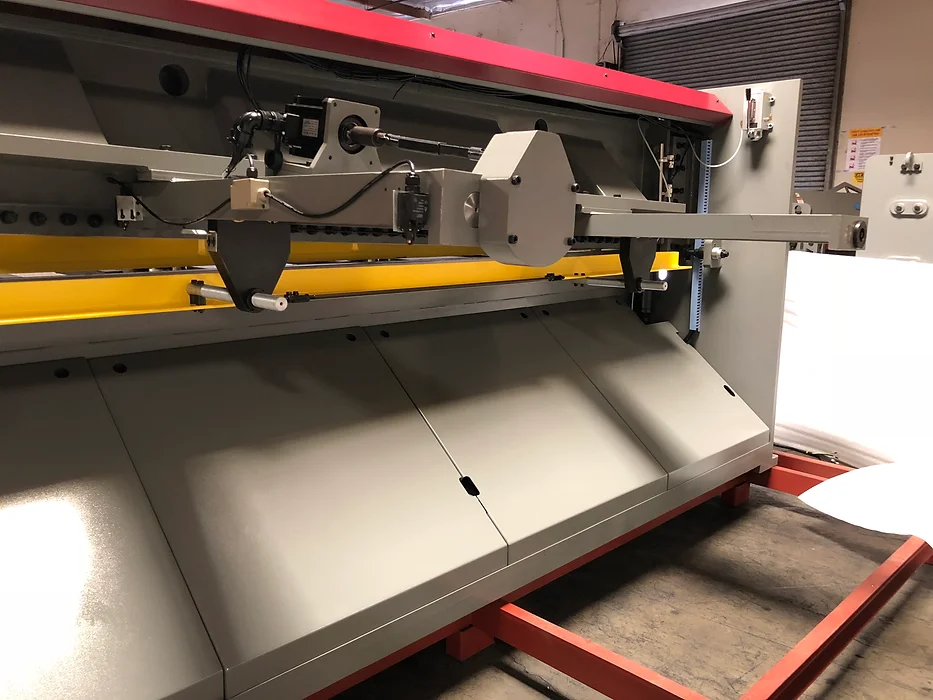

  • 36” go to NC back gauge w/ touch screen

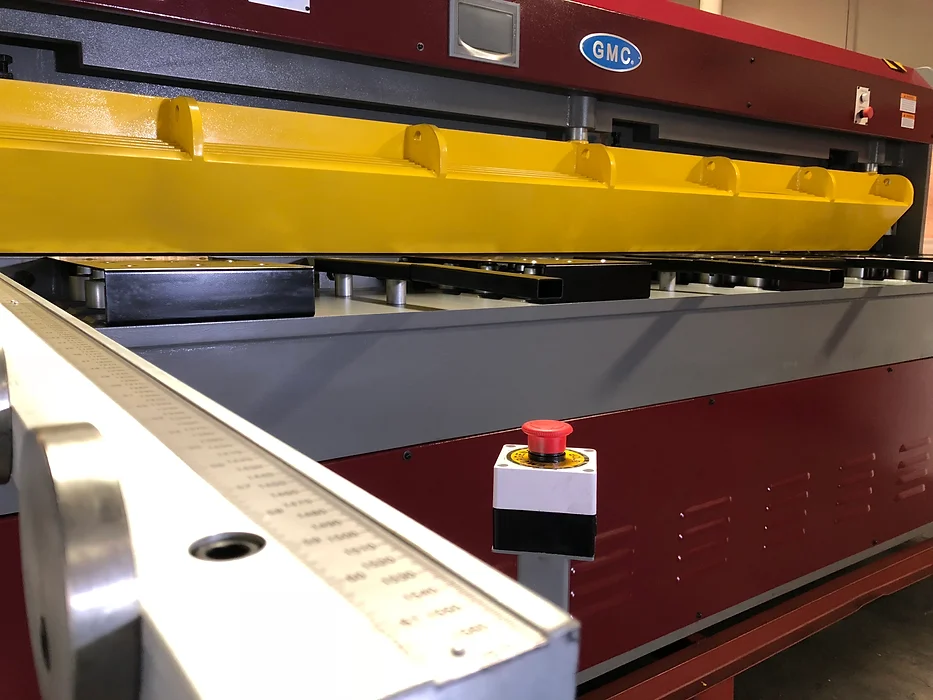

  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 4 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal

Optional Equipment

  • 440V 3-Phase
  • Safety fence for enclosure of the back side of the machine

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
  • Lead times may vary, please contact us for exact availability
Please enable JavaScript in your browser to complete this form.
Weight 14000 lbs
Dimensions 181 × 117 × 65 in
Cutting Capacities

Mild Steel – 10’ x ¼”
Stainless Steel – 10’ x 10 ga.
Aluminum – 10' x 3/8"

Min. Thickness

20 ga.

Blade Length

10' 2"

Strokes per Min.

10 – 12

Throat Depth

18"

Work Table Height

34-1/2"

Front Support Arm

24"

Blade Rake Angle

2 degrees

Oil Tank Cap.

53 gal.

Main Motor

20 HP, 220V/70A, 3 Phase
440V/35A, 3 Phase (OPTIONAL)

NC Back Gauge

1 HP, 220V, 3 Phase

Weight

13,850 LBS

Dimensions

181" x 117" x 65" (with back gauge and squaring arm)
