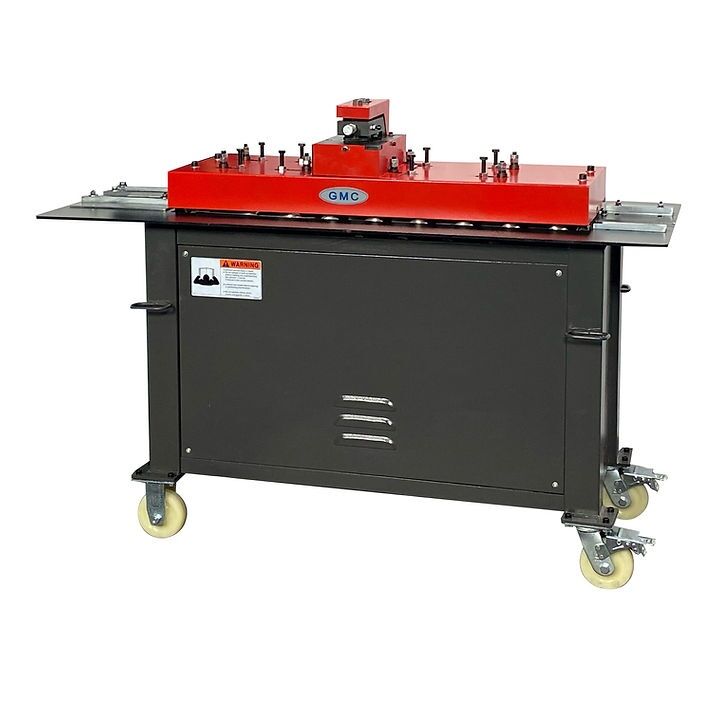

GMC PL-18E Pittsburgh Lockformer Machine
GMC’s PL-18E Pittsburgh Lockformer Machine is a versatile and reliable machine for sheet metal fabrication. This machine has a 18 gauge capacity and can create Pittsburgh seams, standing seams, and various other duct work shapes. With 5 forming stations, this machine is capable of producing high-quality duct work quickly and efficiently. The GMC PL-18E Pittsburgh Lockformer Machine is made with high-quality components and features a heavy-duty frame for durability. The machine is also equipped with a powerful motor to provide consistent and reliable performance.
GMC PL-18E Pittsburgh Lockformer Machine Features:
- 18 gauge capacity: The PL-18E can handle sheet metal up to 18 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal
- Made with high-quality materials and construction for durability and longevity
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Backed by a 1-year parts warranty for peace of mind
- Compact and portable design for easy storage and transport
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
- ISO 9001 certified
- 3 HP Heavy Duty AC main motor, 220V, 3 phase
- Standard Pittsburgh Attachment
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving
Standard Equipment
- Standard Pittsburgh Attachment # PA-18E, installed
- Slip & Drive Roll (S & Drive)# SDR-18E , installed
- Drive Cleat Roll # DCR-18E, installed
- Double Seam Roll # DSR-18E, installed
- Power Flanger # PF-18E, installed
Optional Equipment
-
Right Angle Roll # RAR-18E, ¼” | 3/8” & ½” – $995
Contact us today to start your quote!
Please complete the form below or call us at (815) 451-7086.
- Lead times may vary, please contact us for exact availability
