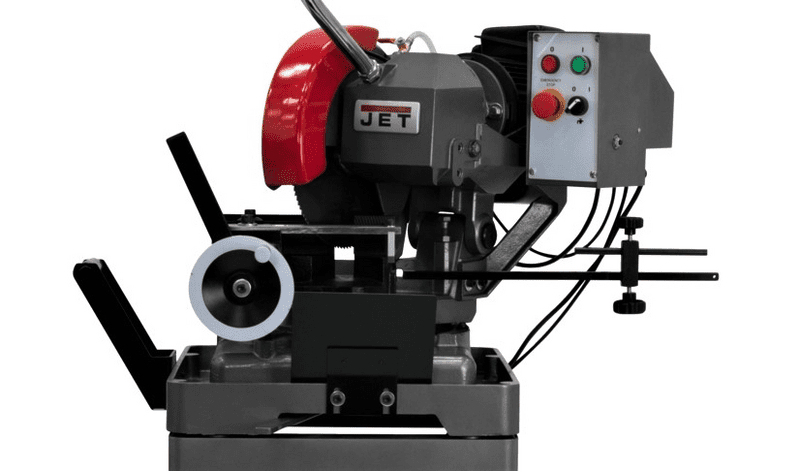

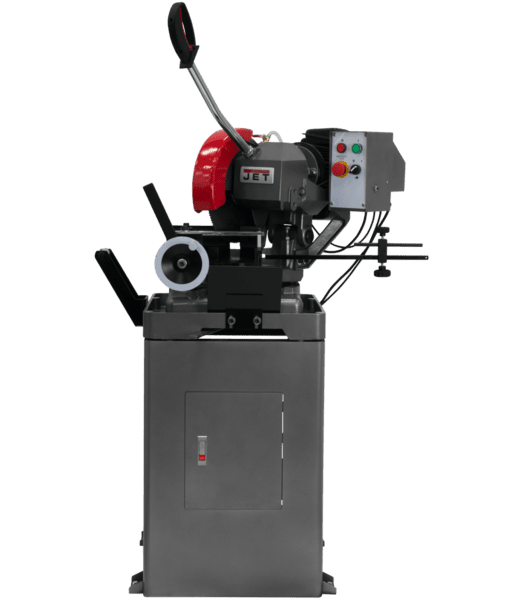

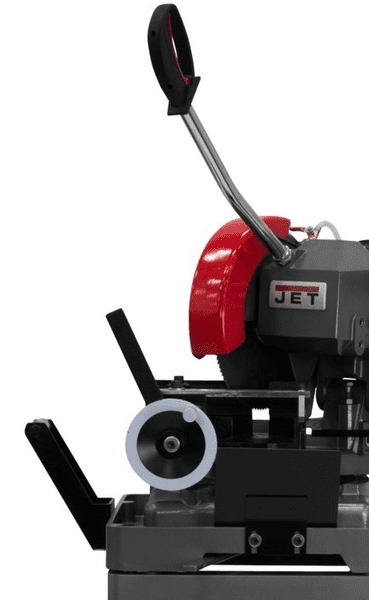

JET CS-315-1 Cold Saw 1Ph 220v

$3,299.00

Blade Speeds: 54
Maximum Vise Opening: 4-11/16
Motor (HP): 2HP, 230V, 1Ph, 13.2Amps
Solid Rectangle at 45 Degrees: 3-3/16 x 2-19/32
Solid Rectangle at 90 Degrees: 4 x 3-3/16
Solid Round at 45 Degrees: 3-1/2
Solid Round at 90 Degrees: 3-1/2
Solid Square at 45 Degrees: 2-19/32 x 2-19/32
Solid Square at 90 Degrees: 3-3/16 x 3-3/16
Style (Type): Ferrous
Tubing Rectangle: 4 x 3-3/16
Tubing Round at 45 Degrees: 3-1/2
Tubing Round at 90 Degrees: 3-1/2
Weight: 420

SKU: JT9-414229 Categories: , ,

Features:

315mm (12″) Ferrous Cold Saw for steel, stainless and tough to cut alloys
Blade drive reduction gearbox operates in an oil bath for increased durability
Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
Fully adjustable material depth stop for sawing repeatability and increased production
Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
Quick tension and release mitering capabilities with stops at 45° right, 45° left
Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 420 lbs
Blade Speeds

Maximum Vise Opening

Motor (HP)

Solid Rectangle at 45 Degrees

Solid Rectangle at 90 Degrees

Solid Round at 45 Degrees

Solid Round at 90 Degrees

Solid Square at 45 Degrees

Solid Square at 90 Degrees

Style (Type)

Tubing Rectangle

Tubing Round at 45 Degrees

Tubing Round at 90 Degrees

Weight
