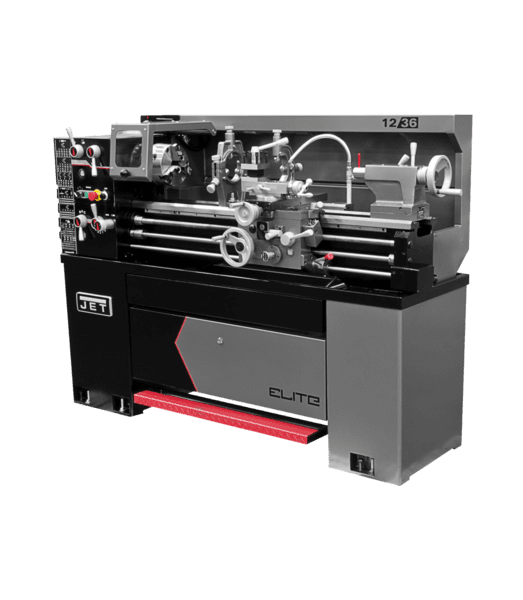

JET E-1236VS Elite 12×36 EVS Lathe

$15,899.00

Amperage Draw @ 230V 3Ph: 19
Compound Slide Travel: 3-1/2
Drive: EVS
Length of Gap: 9-1/2
Max Tool Size: 1/2 x 1/2
Motor (HP): 2HP, 230V,3ph
Motor Phase: 3
Motor Power (HP): 2
Motor Voltage (V.): 230
Number of Inch Threads: 34
Longitudinal and CrossRates: 50
Number of Metric Threads: 34
Range of Cross Feeds (IPR): 0.0005 - 0.015
Range of Inch Threads (TPI): 2 - 56
Range of Longitudinal: 0.0016 - 0.046
Range of Metric Threads: 0.5 - 12
Range of Spindle Speeds: 0 - 2,000
Configurator Option Type: Base Machine
Size: 12 x 36
Spindle Bore: 1-9/16
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT5

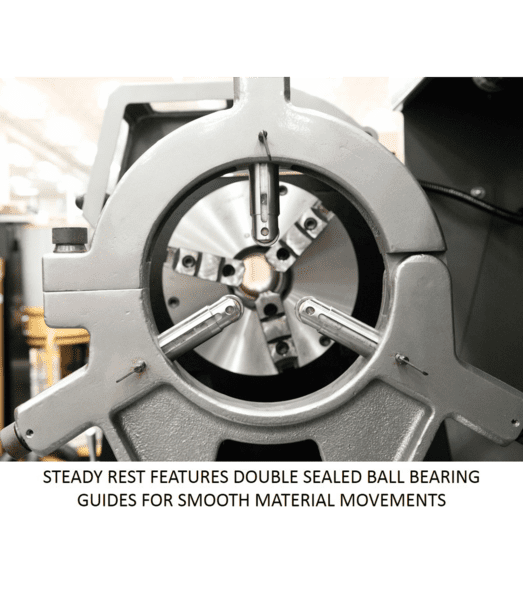

Steady Rest Capacity: 1/4 - 2-1/2
Style (Type): ELITE EVS
Swing Over Bed: 12
Swing Over Cross Slide: 7-5/16
Swing Through Gap: 17-1/2
Tailstock Spindle Travel: 4
Taper in Tailstock Spindle: MT3
Weight: 1212
Width of Bed: 7-1/2

SKU: JT9-892000 Categories: , , ,

Features:

4-Position Carriage Stop

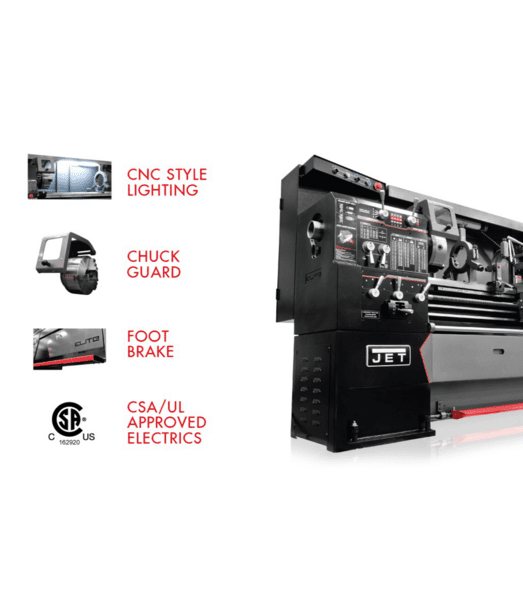

Chuck guards are standard equipment on all ELITE lathes for increased safety

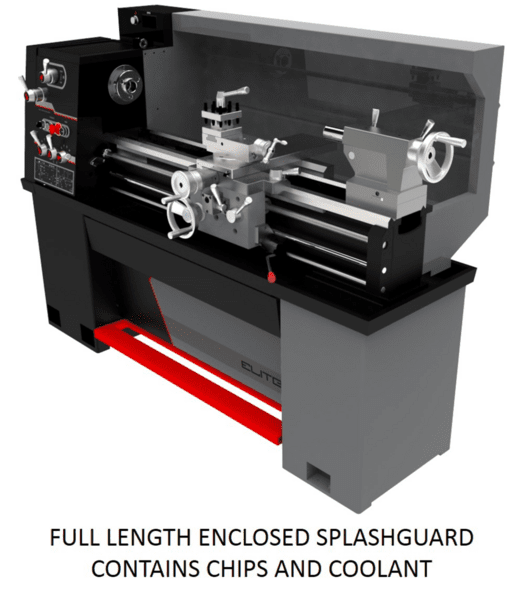

Front facing chip pan allows easy chip removal from the front of the machine

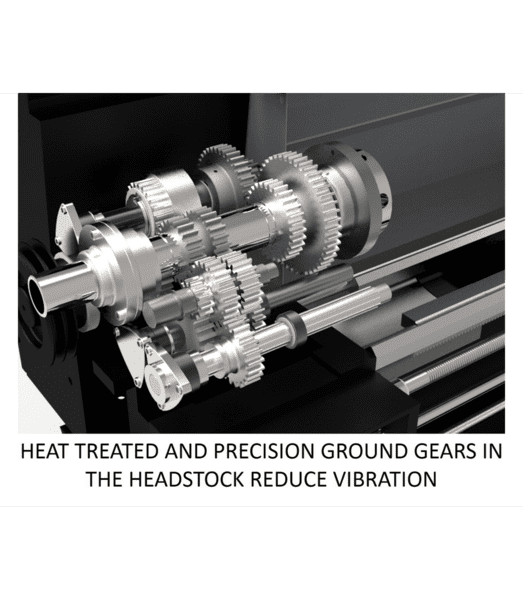

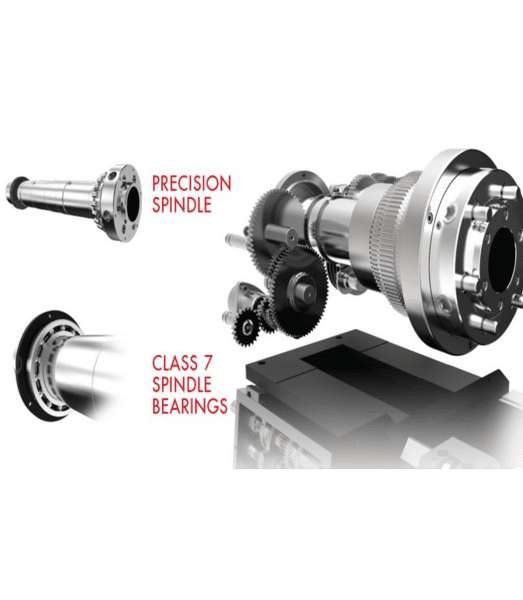

Hardened and ground gears in headstock reduce vibration and deflection
Integrated locking tool cabinet in stand on 12″ Lathe
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds
Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1212 lbs

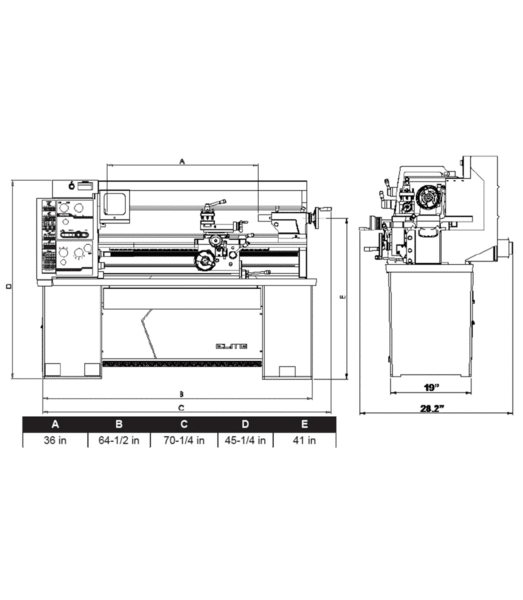

Dimensions 70 × 29.5 × 60 in
