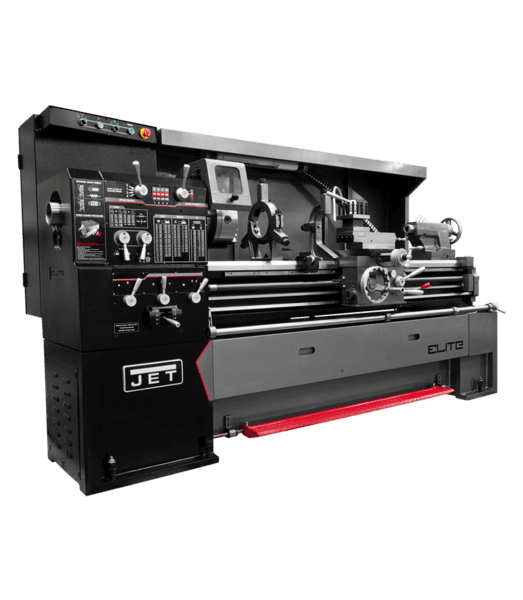

JET EGH-1740 ELITE GH LRG SPND BORE

$35,789.00

Amperage Draw @ 230V 3Ph: 22
Amperage Draw @ 460V 3Ph: 11
Compound Slide Travel: 6-2/7
Drive: Geared Head
Length of Gap: 7-2/3
Max Tool Size: 1 x 1
Number of Inch Threads: 45
Number of Metric Threads: 39
Number of Spindle Speeds: 12
Range of Cross Feeds (IPR): 0.00075 - 0.02
Range of Inch Threads (TPI): 2 - 72
Range of Longitudinal: 0.0015 - 0.04
Range of Metric Threads: 0.2 - 14
Range of Spindle Speeds: 36 - 1,800
Configurator Option Type: Base Machine
Size: 17 x 40

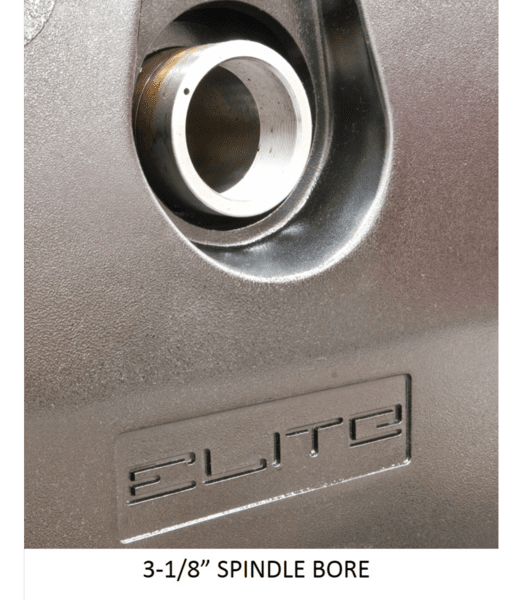

Spindle Bore: 3-1/8
Spindle Mount: D1-6
Spindle Taper with Sleeve: MT5
Steady Rest Capacity: 3/8 - 6-3/4
Style (Type): Engine
Swing Over Bed: 17
Swing Over Cross Slide: 11
Swing Through Gap: 24-1/2
Tailstock Spindle Travel: 5
Taper in Tailstock Spindle: MT 4
Weight: 3747
Width of Bed: 12

SKU: JT9-892100 Categories: , , ,

Features:

4-Position Carriage Stop

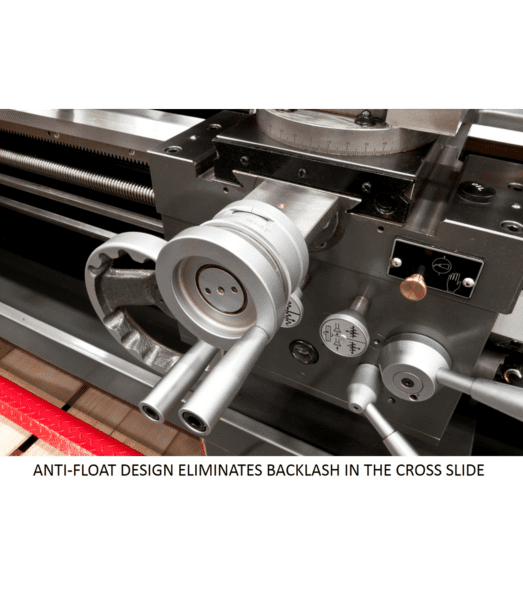

Anti-Float design eliminates backlash in the cross slide
Enclosed coolant system contains excess coolant for increased safety
Front facing chip pan allows easy chip removal from the front of the machine

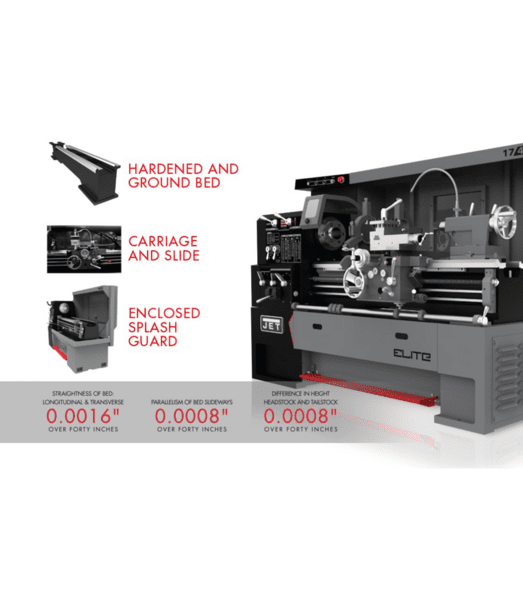

Full Length Splash Guard

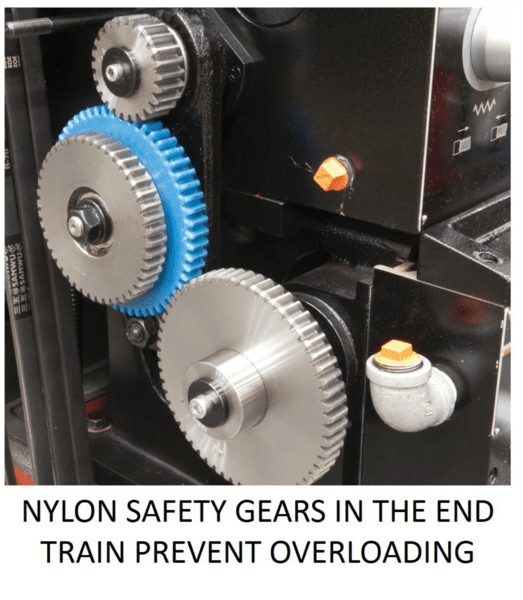

Nylon safety gears in the end train prevent overloading, increasing safety
One-Shot lubrication in the carriage reduces maintenance
Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock

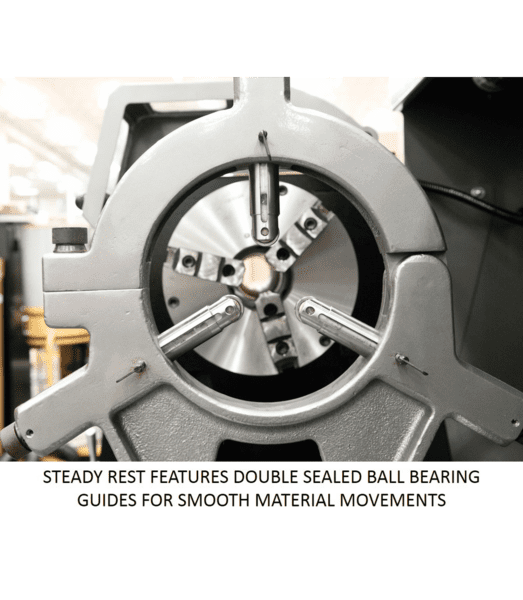

Steady rests feature ball bearing guides for smooth material movements

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 3747 lbs

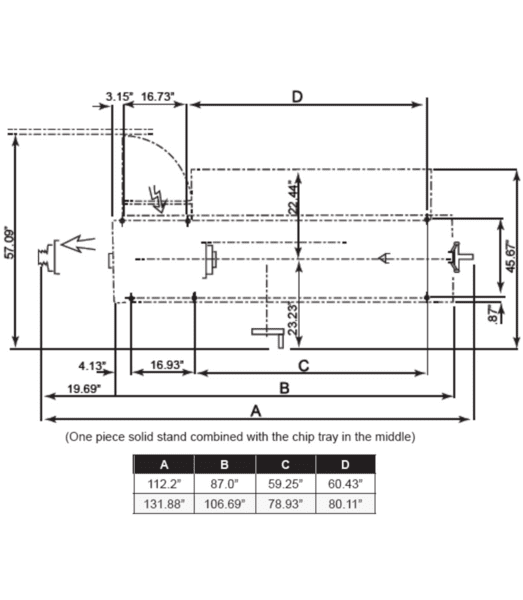

Dimensions 95 × 47 × 74 in
