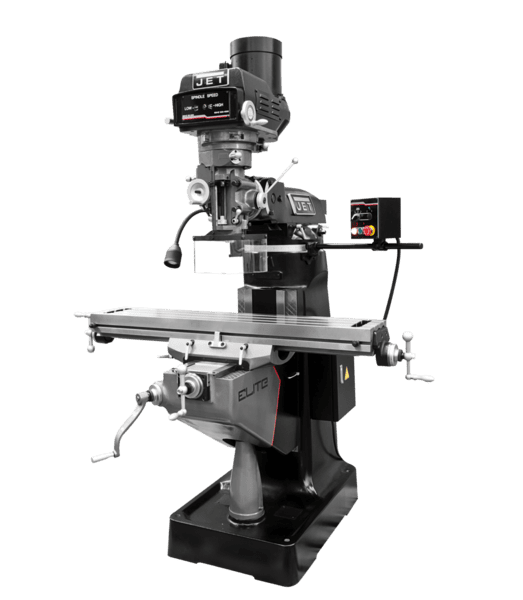

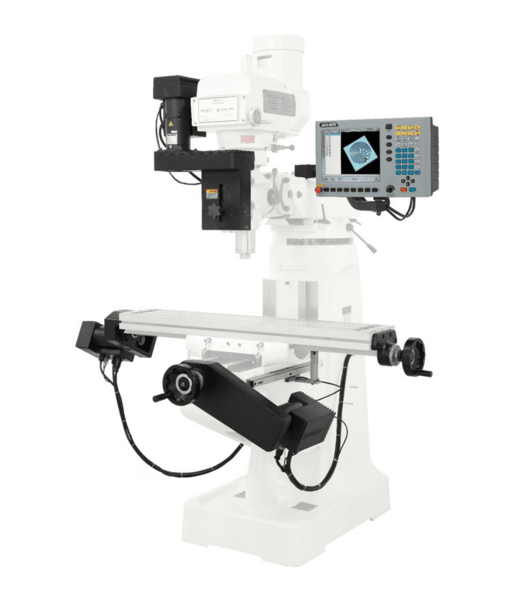

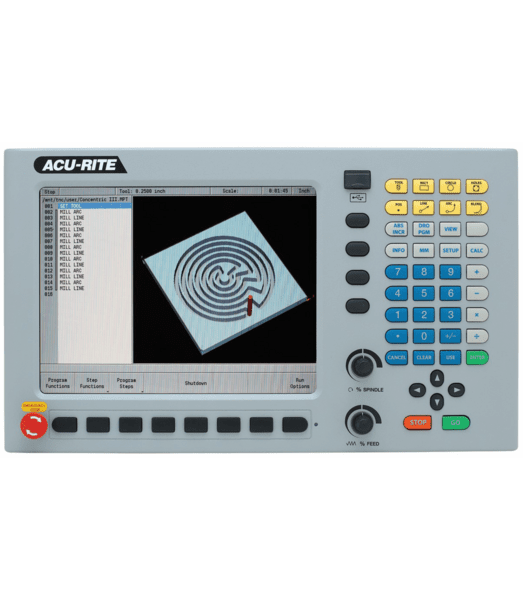

JET ETM-949 W/3-AXIS MILLPWR

$59,899.00

Amperage Draw @ 230V 3Ph: 18
Collet Capacity: 1/8 - 7/8
Max Distance Spindle to Table: 18-3/4
Motor (HP): 3 HP, 230V, 3 Ph
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): 0.0015 - 0.003 - 0.006
Range of Spindle Speeds: 60 - 4,500
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed
Table Cross Travel: 12
Table Size (L x W): 9 x 49
Travel of Knee: 16
Travel of Ram: 14
T-Slot Centers: 2-1/2
Weight: 2200
Work Table Weight Capacity: 550

SKU: JT9-894041 Categories: , ,

Features:

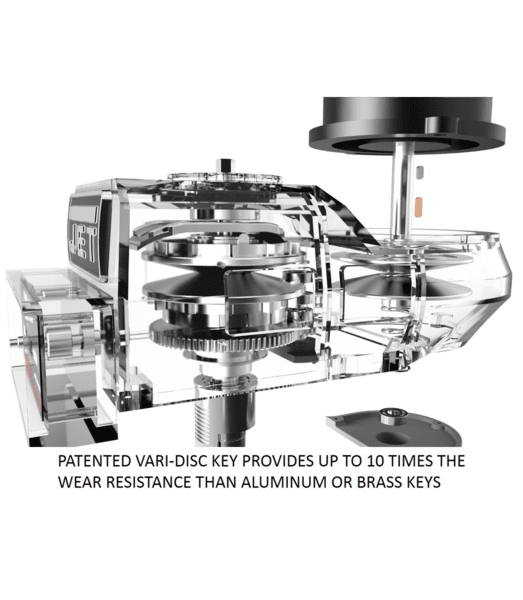

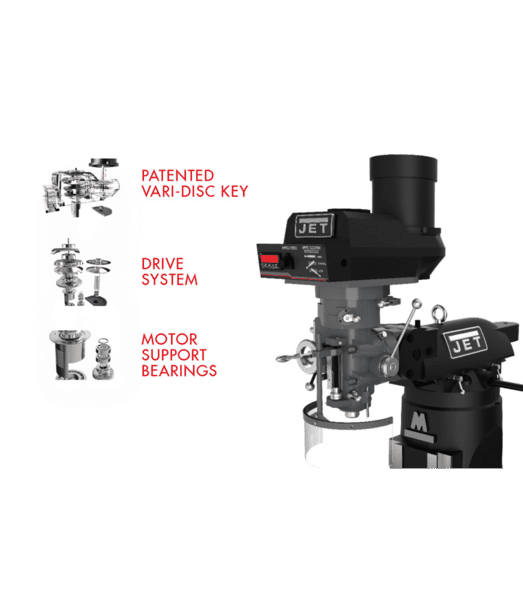

Patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys
Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

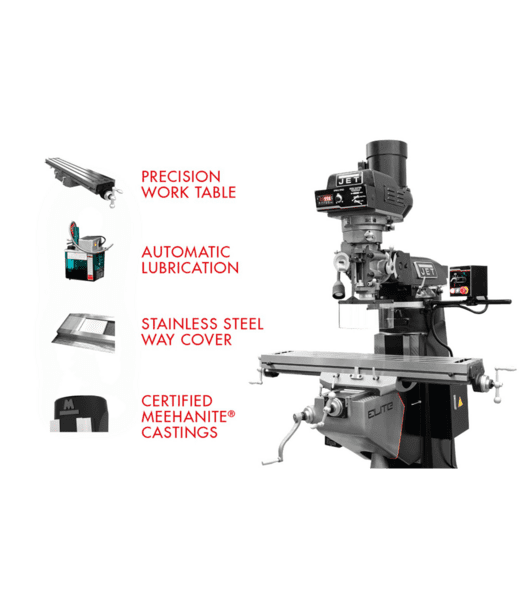

Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

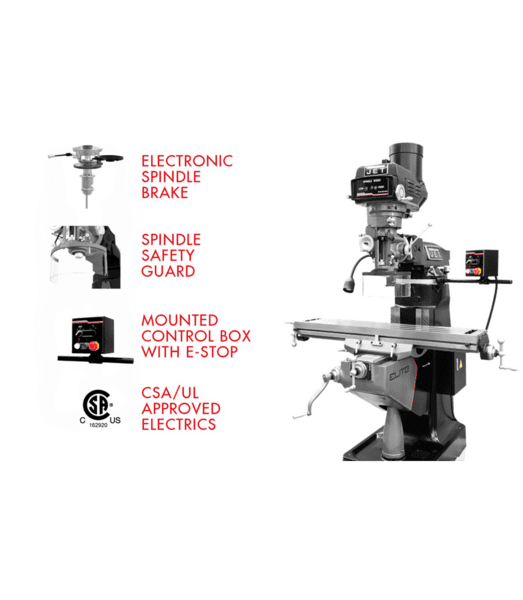

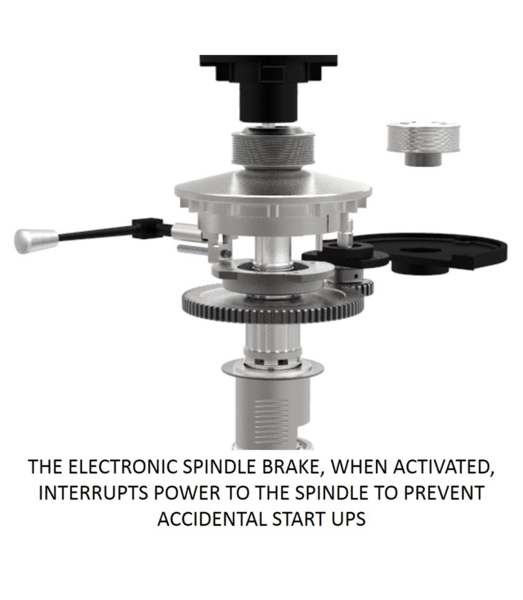

The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups

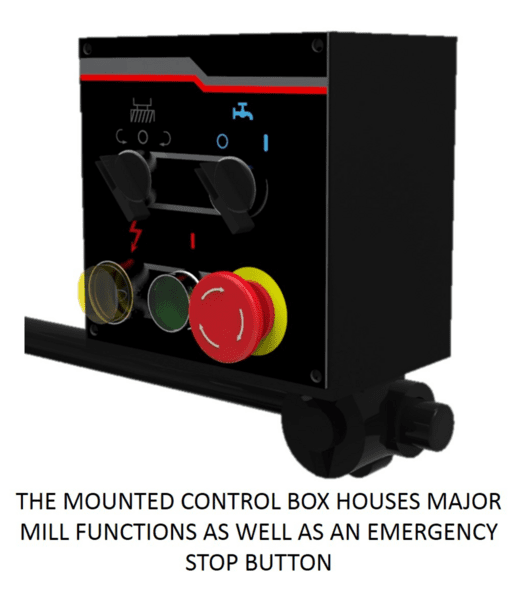

The mounted control box houses major mill functions as well as an emergency stop button

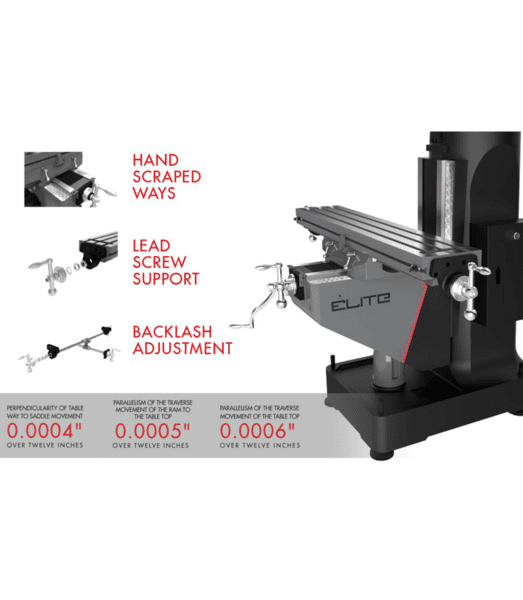

The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

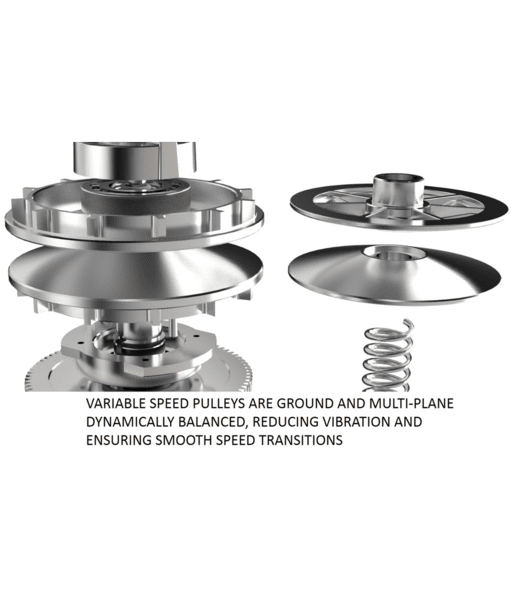

Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
