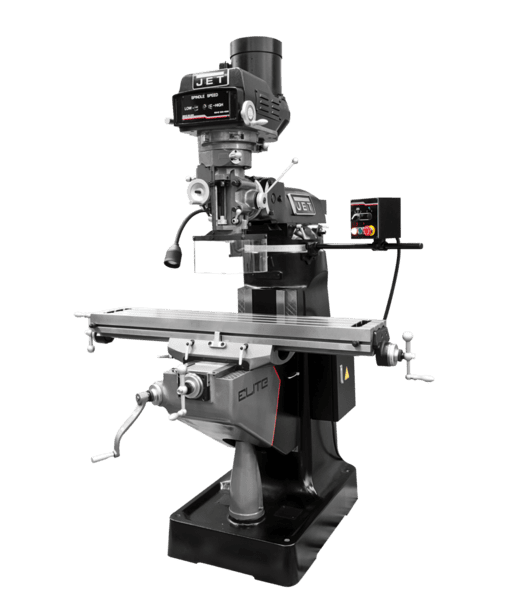

JET ETM-949 & X Y Z PWRFD & PWR DRBR

$26,989.00

Amperage Draw @ 230V 3Ph: 18
Collet Capacity: 1/8 - 7/8
Max Distance Spindle to Table: 18-3/4
Motor (HP): 3 HP , 230/460V, 3-Ph
Power Draw Bar: USA Made
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): 0.0015 - 0.003 - 0.006
Range of Spindle Speeds: 60 - 4,500
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed
Table Cross Travel: 12
Table Size (L x W): 9 x 49
Travel of Knee: 16
Travel of Ram: 14
T-Slot Centers: 2-1/2
Weight: 2420
Work Table Weight Capacity: 550

SKU: JT9-894108 Categories: , ,

Features:

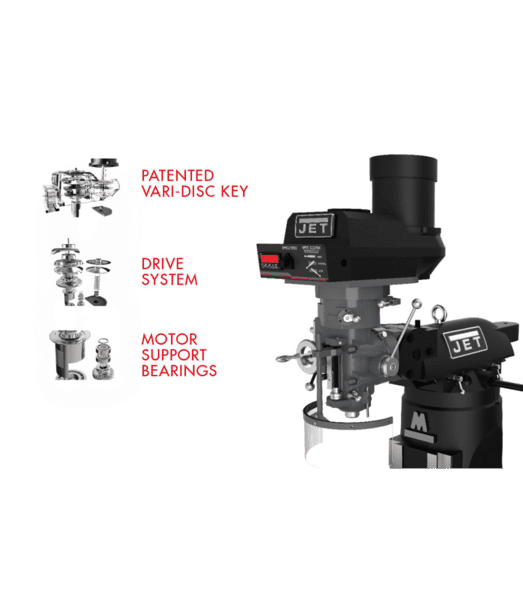

Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

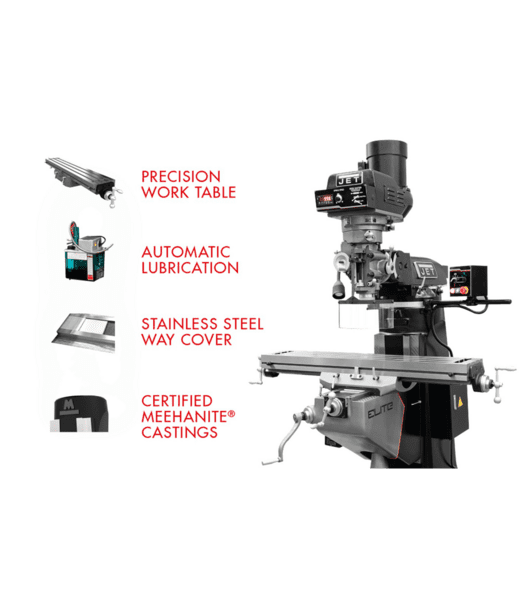

Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

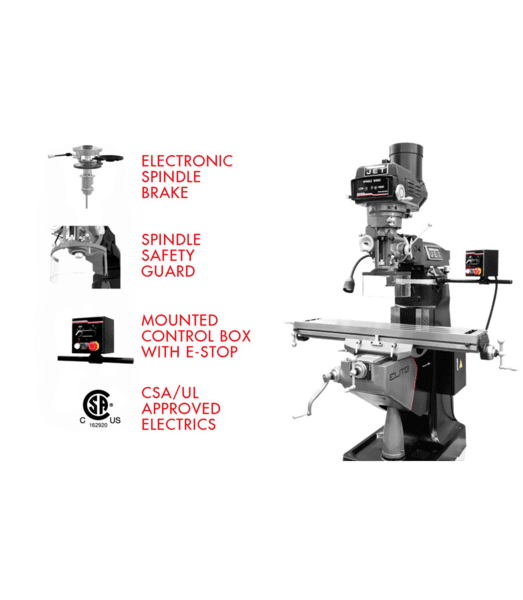

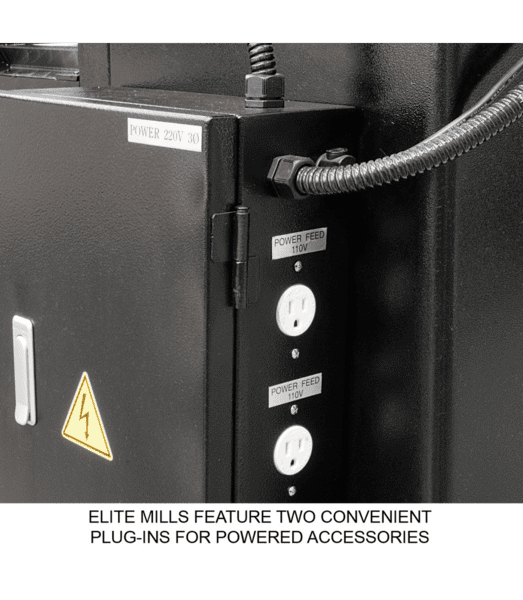

The mounted control box houses major mill functions as well as an emergency stop button

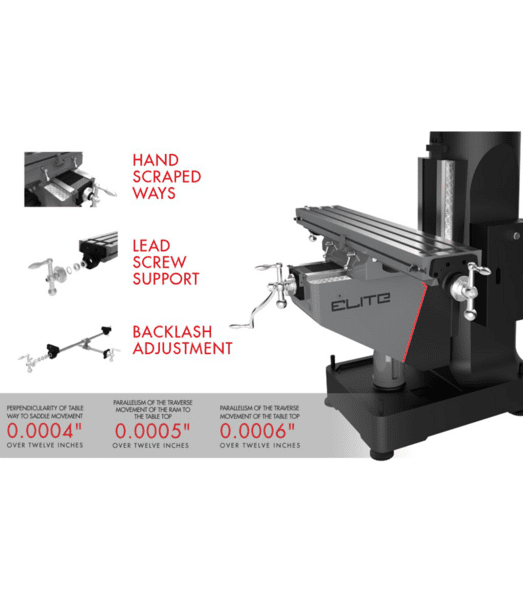

The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

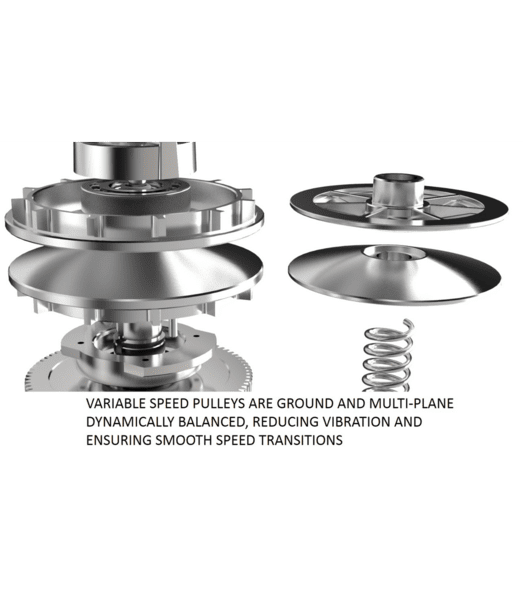

Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.
