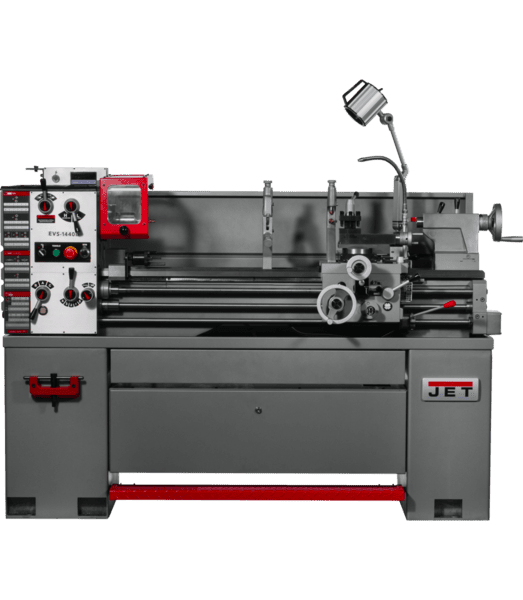

JET EVS-1440B EVS LATHE

$16,099.00

Compound Slide Travel: 3-1/2
Cross Slide Travel: Inch
Distance Between Centers: 40"
Drive: EVS
Gross Weight: 1584
Input Power: 230V 3ph
Length of Gap: 9-1/2
Max Tool Size: 3/4 x 3/4
Motor (HP): 3 HP, 230V, 3-Phase
Motor Phase: 3
Motor Power (HP): 3
Motor Voltage (V.): 230
Net Weight: Pound
Number of Inch Threads: 34
Longitudinal and CrossRates: 25
Number of Metric Threads: 34
Number of Spindle Speeds: Variable
Prewired Voltage (V.): 230
Range of Cross Feeds (IPR): 25
Range of Inch Threads (TPI): 2 - 56
Range of Longitudinal: 0.0016-0.0460
Range of Metric Threads: 0.5 - 12
Range of Spindle Speeds: 40-2000
Configurator Option Type: Base Machine
Shipping Dimensions: 76 x 30 x 61
Spindle Bore: 1-1/2
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5
Spindle Thread (In./TPI): 2 - 56
Steady Rest Capacity: 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed: 14"
Swing Over Cross Slide: 9-1/16
Tailstock Spindle Travel: 6-1/8
Taper in Tailstock Spindle: MT-3
Weight: 1584
Width of Bed: 7.48

SKU: JT9-311440 Categories: , , ,

Features:

Standard Equipment

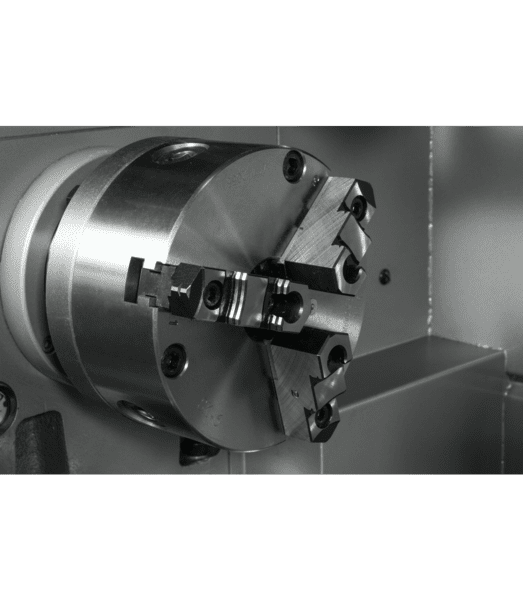

6″ 3-Jaw Chuck

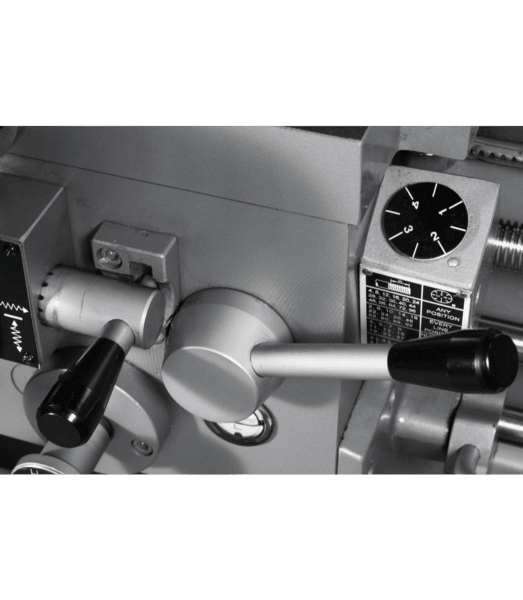

Threading Dial Indictor

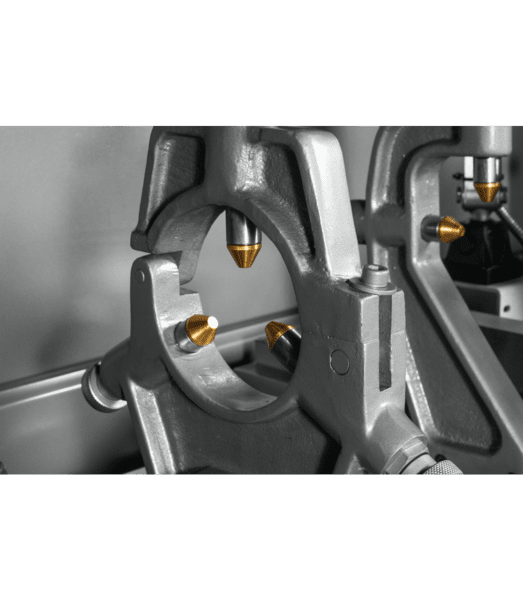

Steady & Follow Rest

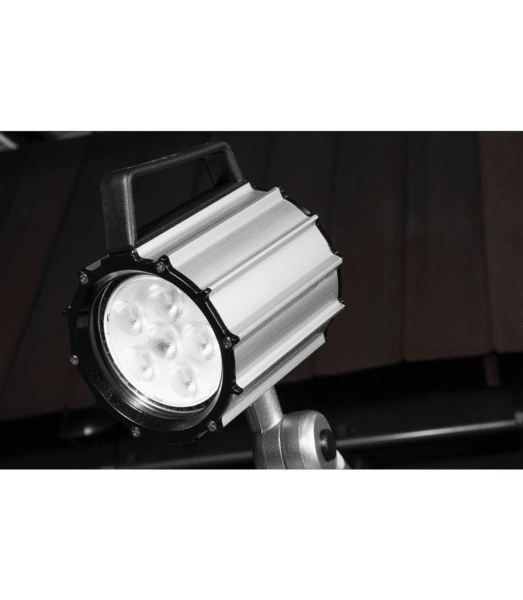

LED Work Lamp

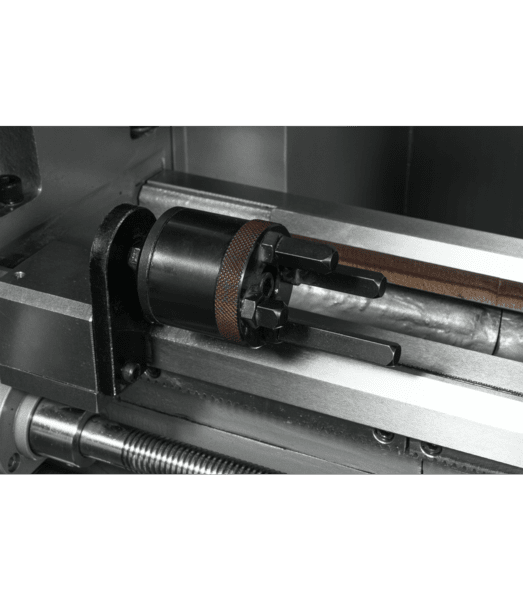

4-Position Carriage stop
Chuck Guard
Threading Dial Indicator

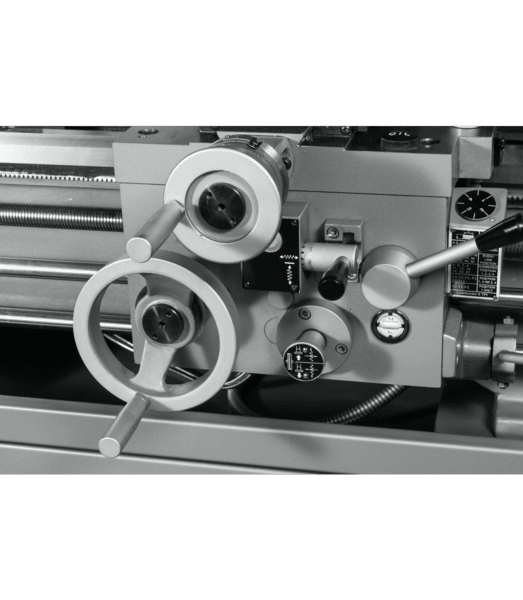

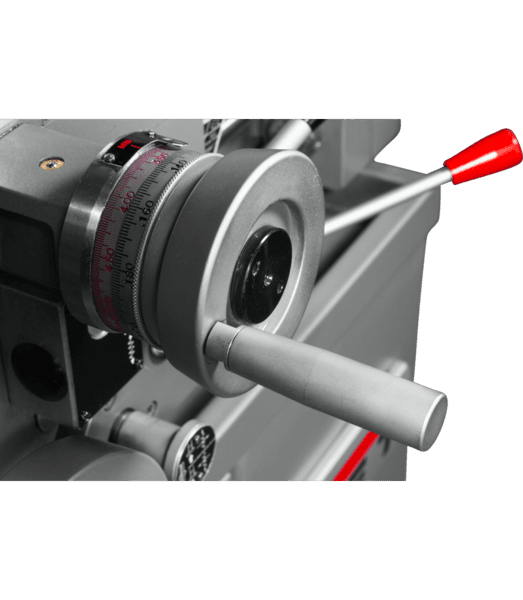

Compound and cross slide have backlash elimination

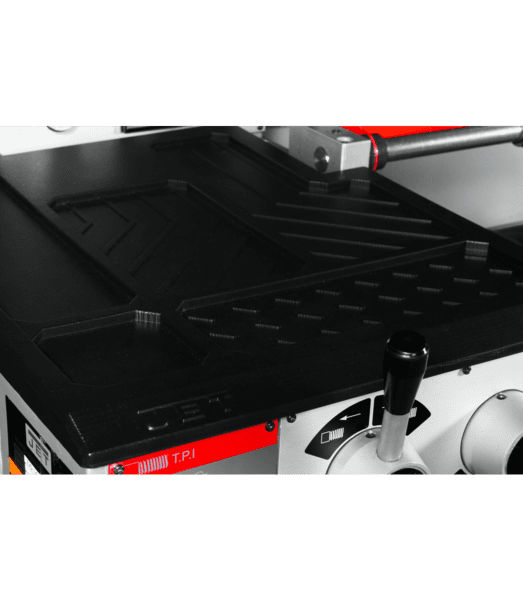

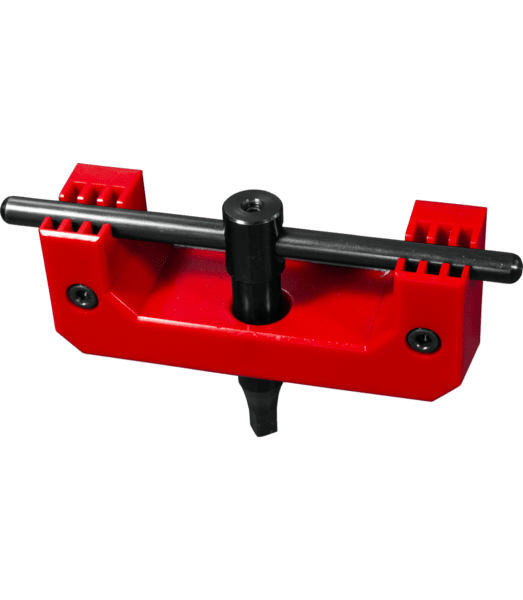

Electronic Chuck Key Docking Station

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1584 lbs
Dimensions 68.5 × 28.3 × 50 in
