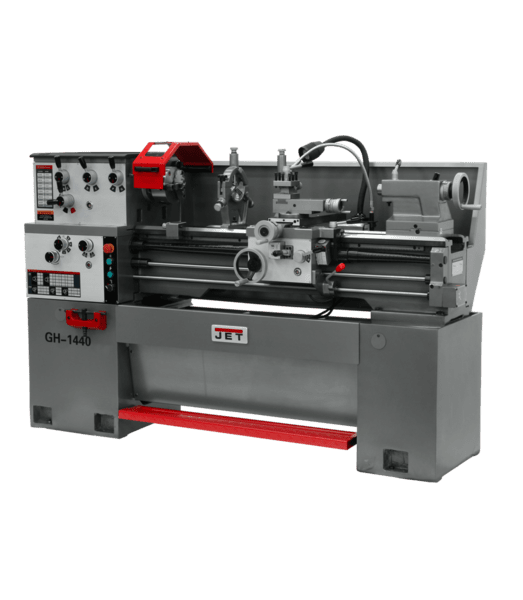

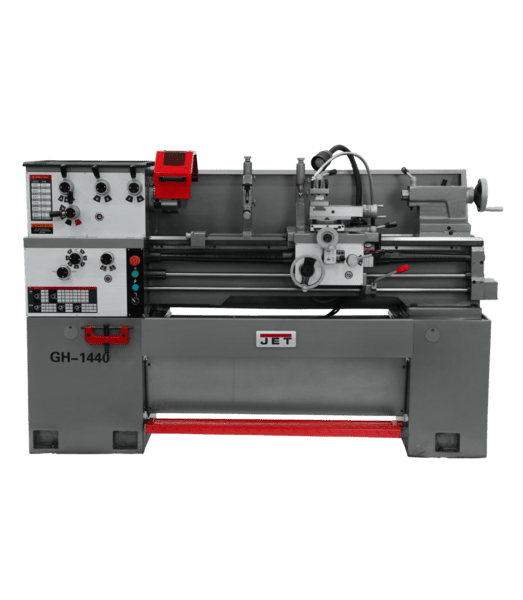

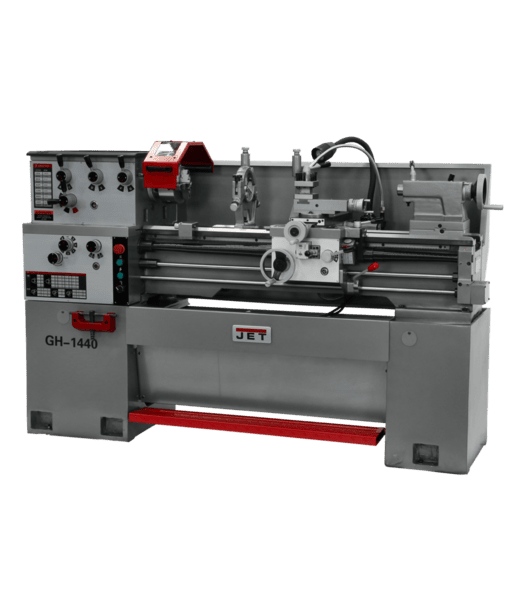

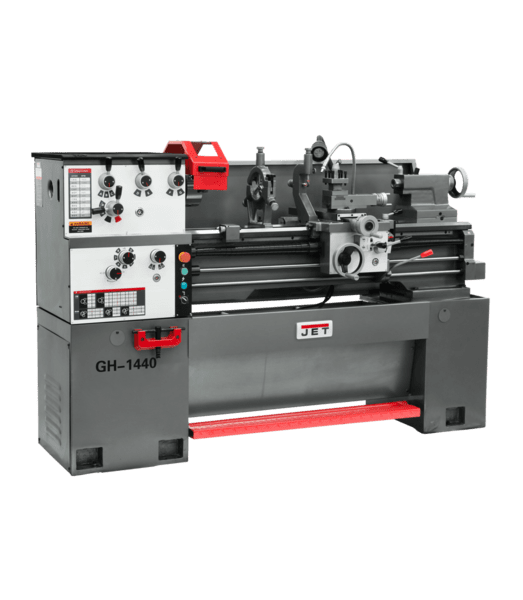

JET GH-1440-3 14×40 ENG 3HP 220V 3PH

$14,999.00

Carriage Travel: 37-1/2
Compound Slide Travel: 3-1/2
Length of Gap: 9-3/8
Max Tool Size: 5/8 x 5/8
Motor (HP): 3HP, 230/460V, 3PH
Number of Inch Threads: 40
Longitudinal and CrossRates: 40
Number of Metric Threads: 23
Number of Spindle Speeds: 12
Range of Cross Feeds (IPR): 0.0004 - 0.0103
Range of Inch Threads (TPI): 4 - 112
Range of Longitudinal: 0.0012 - 0.0294
Range of Metric Threads: 0.45 - 7.5
Range of Spindle Speeds: 40-1800
Configurator Option Type: Base Machine
Spindle Bore: 1-1/2
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5

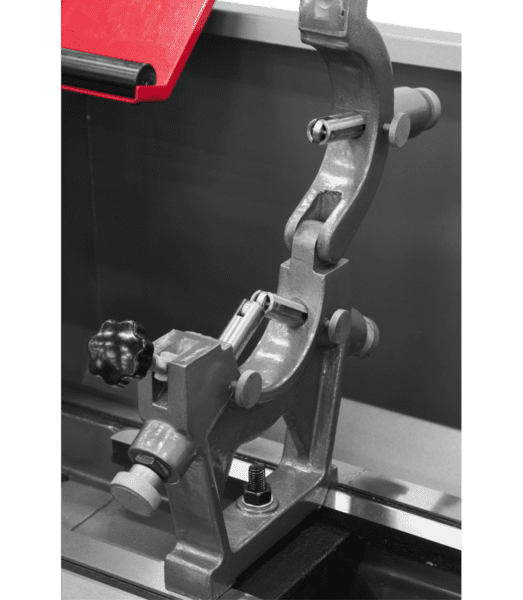

Steady Rest Capacity: 3-1/2
Swing Over Bed: 14"
Swing Over Cross Slide: 8-1/5
Swing Through Gap: 20
Tailstock Spindle Travel: 4-3/4
Taper in Tailstock Spindle: MT-3
Weight: 2336
Width of Bed: 10-1/5

SKU: JT9-322840 Categories: , , ,

Features:

Compound and cross slide have backlash elimination
Front Removable Chip Tray
Full Length Splash Guard
Inch-metric dials are standard
Independent lead screw and feed rod
Safety on/off switch

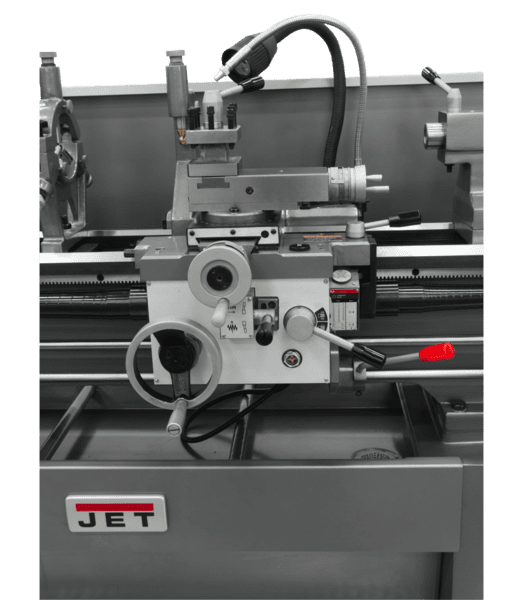

Spindle actuation control is apron mounted
Spindle jog button for easy gear engagement and spindle inching
Splined, not keyed, shafts are utilized

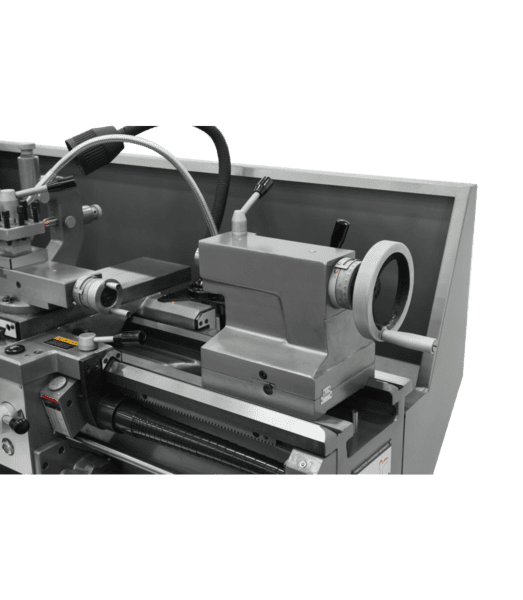

Tailstock may be offset for turning taper

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2336 lbs
Dimensions 74.8 × 30 × 56.5 in
