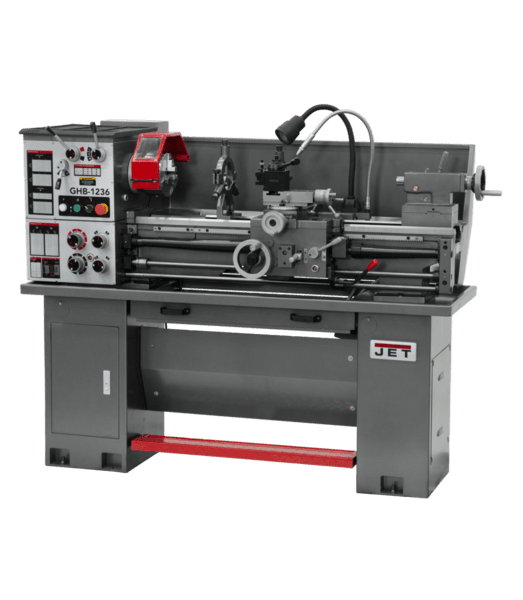

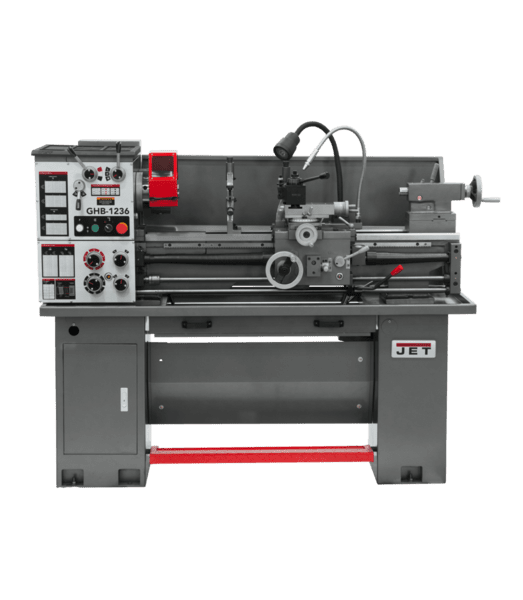

JET GHB-1236 GH BNCH LTH W/ DP700

$14,559.00

Carriage Travel: 27-3/8
Compound Slide Travel: 3
Length of Gap: 8-3/4
Max Tool Size: 3/4 x 3/4
Motor (HP): 2HP, 230V, Single Phase
Number of Inch Threads: 36
Longitudinal and CrossRates: 48/36
Number of Metric Threads: 32
Number of Spindle Speeds: 9
Range of Cross Feeds (IPR): 0.0014 - 0.0116
Range of Inch Threads (TPI): 4-60
Range of Longitudinal: 0.0019 - 0.0472
Range of Metric Threads: 0.4-7mm
Range of Spindle Speeds: 75 - 1400
Spindle Bore: 1.575
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5
Steady Rest Capacity: 0.31-2.95
Swing Over Bed: 12
Swing Over Cross Slide: 7-1/2
Swing Through Gap: 18
Tailstock Spindle Travel: 3-1/2
Taper in Tailstock Spindle: MT-3
Weight: 1210
Width of Bed: 7.12

SKU: JT9-323231 Categories: , , ,

Features:

Compound and cross slide have backlash adjustment
Emergency stop within easy reach of the Operator

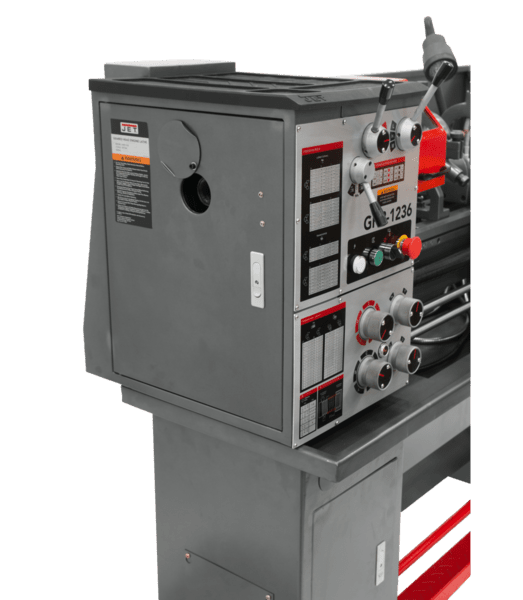

Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Mounted on stand with foot pedal, coolant and ready to use
Spindle Spider available for ease of turning Gun barrels
Steady Rest with Roller Bearings

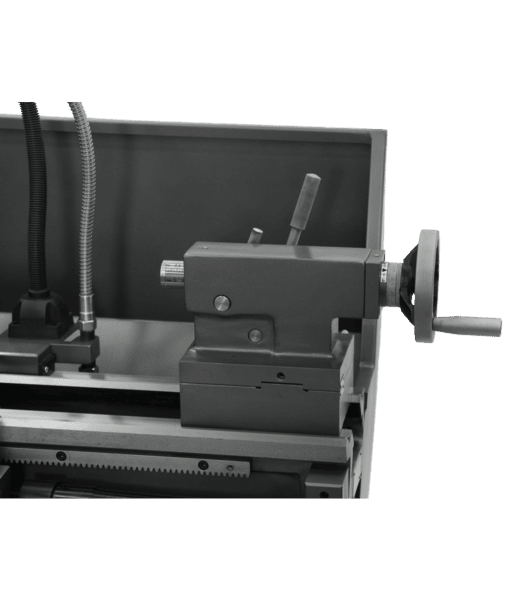

Tailstock may be offset for turning taper

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1210 lbs
Dimensions 66 × 30 × 58 in
