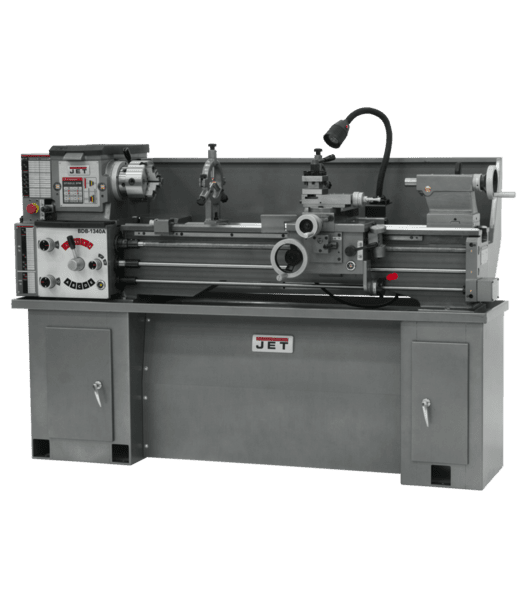

JET GHB-1340A LATHE W/ CBS-1340A STAND

$9,739.00

Carriage Travel: 35
Compound Slide Travel: 2-11/16
Drive: Geared Head
Length of Gap: 8
Max Tool Size: 5/8 x 5/8
Motor (HP): 2 HP, 230V, 1Ph
Number of Inch Threads: 38
Longitudinal and CrossRates: 40
Number of Metric Threads: 23
Number of Spindle Speeds: 8
Range of Cross Feeds (IPR): .0006 - .0130
Range of Inch Threads (TPI): 3-1/2 - 80
Range of Longitudinal: .0018 - .0374
Range of Metric Threads: .45 - 10
Range of Spindle Speeds: 70 - 2,000
Size: 13 x 40
Spindle Bore: 1-3/8
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5 (MT-3)
Steady Rest Capacity: 2-3/4
Style (Type): Bench - Geared Head
Swing Over Bed: 13"
Swing Over Cross Slide: 7-25/32
Swing Through Gap: 18-3/4
Tailstock Spindle Travel: 3-3/4
Taper in Tailstock Spindle: MT-3
Weight: 1154
Width of Bed: 7-3/8

SKU: JT9-321101AK Categories: , , ,

Features:

6″ 3-jaw direct mount chuck with top reversing jaw
Compound and cross slide have backlash elimination
Fast, easy speed changes
Hardened and ground gears are featured in the headstock and gearbox
Image shown with optional bench, p/n 321443AK
Independent lead screw and feed rod
Spindle actuation control is apron mounted
Tailstock may be offset for turning taper
Tolerance test certificate included
V-Way bed design is induction hardened and ground

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 1154 lbs
Dimensions 71 × 32 × 47 in
