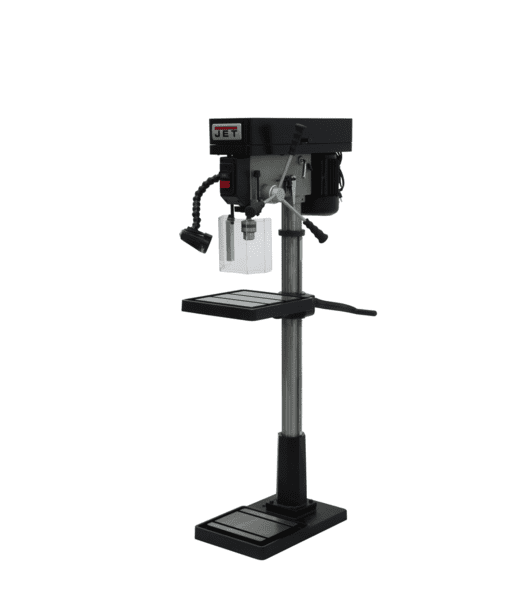

JET IDP-17 17 INDUSTRIAL DRILL PRESS

$2,119.00

Base Dimensions: 21-3/4 x 13-3/4 x 2-3/16
Base Work Table: 16-15/16 x 10-13/16
Chuck Size: 5/8
Column Diameter: 3-1/8
Distance Column to Spindle: 8-3/8
Drilling Capacity Cast Iron: 3/4
Drilling Capacity Mild Steel: 5/8"
Drills to Center of Circle: Inch
Motor (HP): 1 HP, 115/230V, 1Ph
Number of Spindle Speeds: 12
Range of Spindle Speeds: 350 - 2,800
Spindle Distance to Base: 50
Spindle Distance to Table (Max.): 30-1/2
Spindle Taper: MT-2
Spindle Travel: 3-5/16
Style (Type): Belt Drive
Table Size (L x W): 14 x 14
T-Slots Number and Size: 2 and 1/2
T-Slot Centers: 9/16
Weight: 276

Features:

1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key attach to the side of the drill press always within reach of the operator
Hinged metal belt and pulley cover
Large Hand Grips designed with the users comfort in mind
On/off switch located on front of the drill press head
Rotating, 45° tilting, crank-operated worktable with quick release clamp
Spindle is supported by high quality ball bearings
Table ground for accuracy
