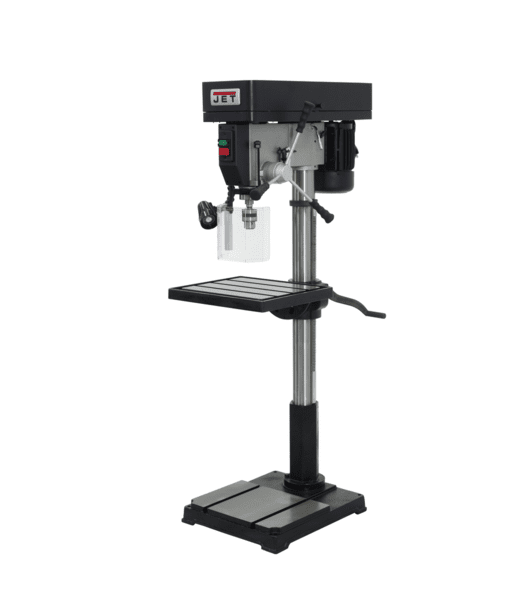

JET IDP-22 22 INDUSTRIAL DRILL PRESS

$2,599.00

Base Dimensions: 22-5/8 x 19-7/16 x 3-3/8
Base Work Table: 21-1/2 x 18-5/16
Chuck Size: 5/8
Column Diameter: 3-5/8
Distance Column to Spindle: 10-7/8
Drilling Capacity Cast Iron: 1-1/4
Drilling Capacity Mild Steel: 1"
Drills to Center of Circle: Inch
Motor (HP): 1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds: 12
Range of Spindle Speeds: 175 - 3,050
Spindle Distance to Base: 48-1/2
Spindle Distance to Table (Max.): 28
Spindle Taper: MT-3
Spindle Travel: 4-13/16
Style (Type): Belt Drive
Table Size (L x W): 18-5/8 x 16-1/8
T-Slots Number and Size: 2 and 5/8
T-Slot Centers: 3/4
Weight: 364
Work Table Weight Capacity: 176

Features:

1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key attach to the side of the drill press always within reach of the operator
Hinged metal belt and pulley cover
Large Hand Grips designed with the users comfort in mind
On/off switch located on front of the drill press head
Rotating, 45° tilting, crank-operated worktable with quick release clamp
Spindle is supported by high quality ball bearings
Table ground for accuracy

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 364 lbs
Dimensions 35 × 19 × 67 in
