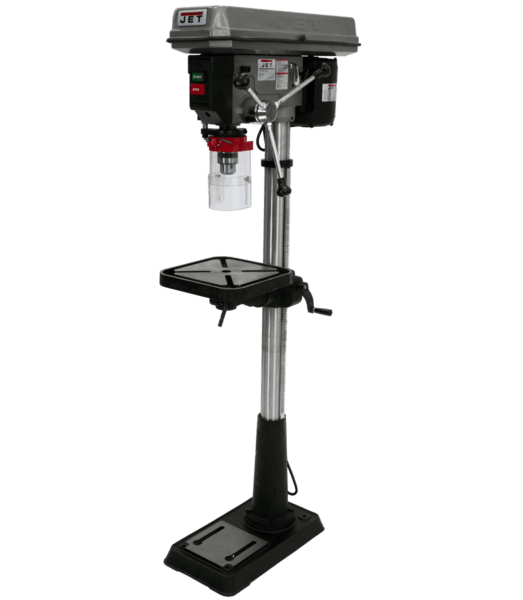

JET J-2500 15 FLOOR DRILL PRESS 115/230V

$999.00

Base Dimensions: 11 x 19-1/2
Column Diameter: 2-7/8
Distance Column to Spindle: 7-1/2
Drilling Capacity Cast Iron: 5/8
Drilling Capacity Mild Steel: 1/2
Drills to Center of Circle: Inch
Motor (HP): 3/4 HP, 115/230V, 1Ph
Number of Spindle Speeds: 16
Range of Spindle Speeds: 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Spindle Distance to Base: 48
Spindle Distance to Table (Max.): 24
Spindle Taper: MT-2
Spindle Travel: 3-3/8
Style (Type): Belt Drive
Table Size (L x W): 11-1/2 x 11-1/2
Table Travel: 24
T-Slots Number and Size: 3 - 5/8
Weight: 167
Work Table Weight Capacity: 44

Features:

3-1/8″ stroke for deep hole applications
Cast iron head
Constructed to provide a solid base for drilling
Large ground steel column for maximum head and table support
Large quill allows greater accuracy
Telescoping safety spindle guard
The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 167 lbs
Dimensions 54 × 20 × 10.5 in
