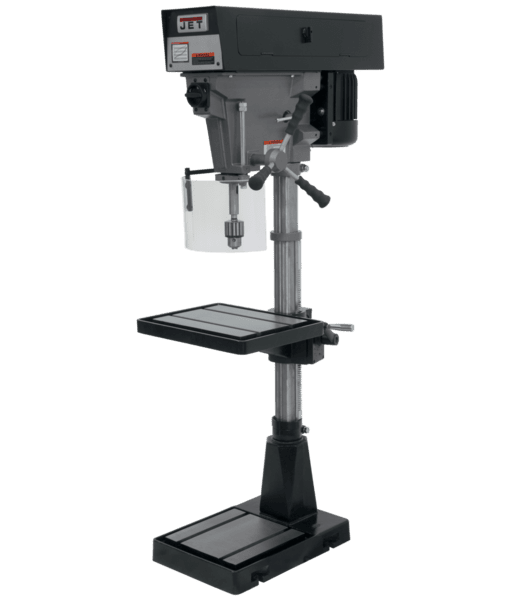

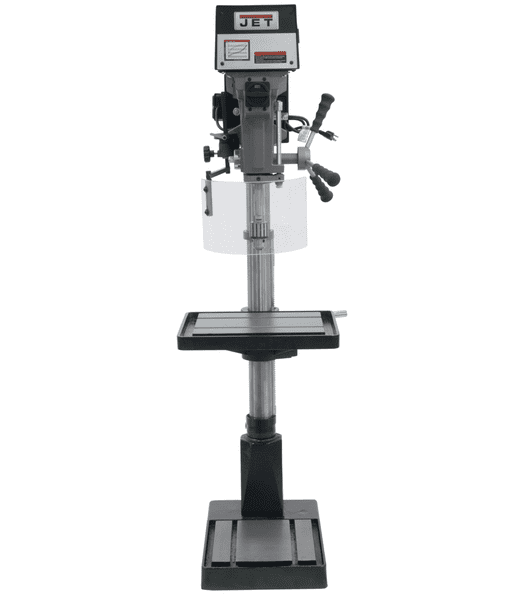

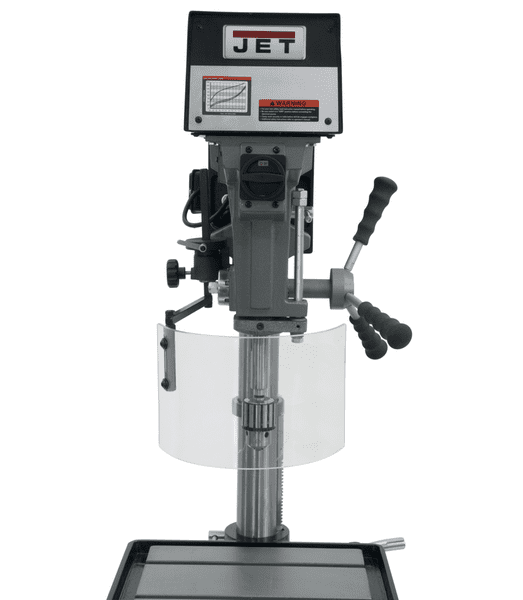

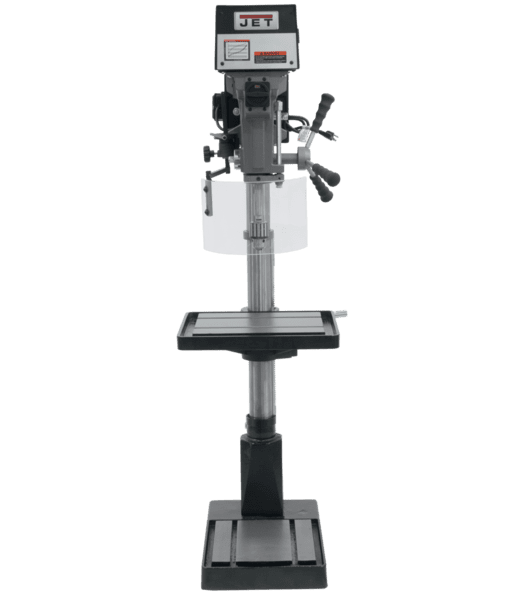

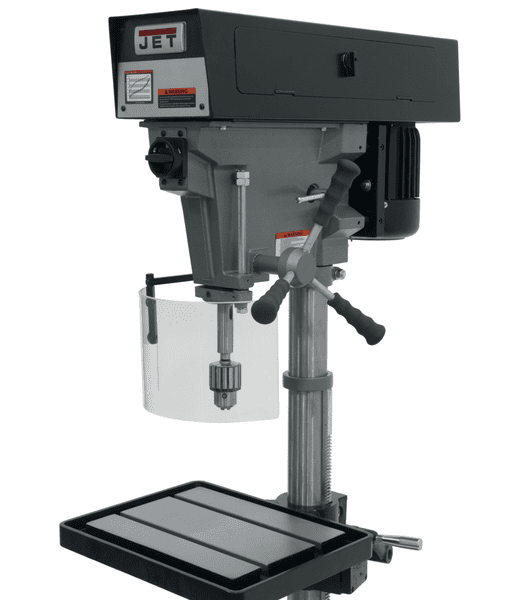

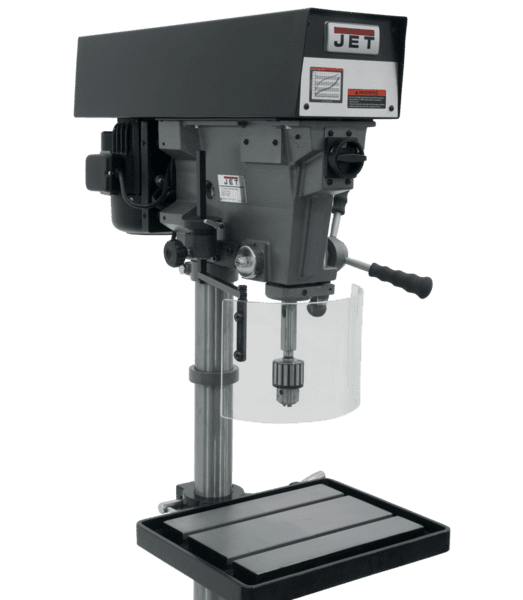

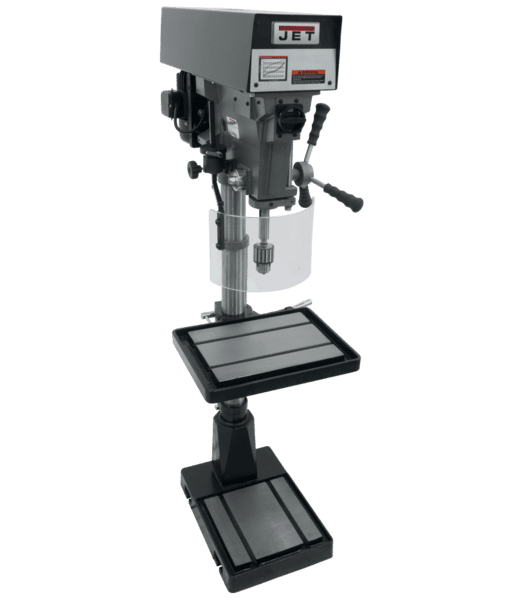

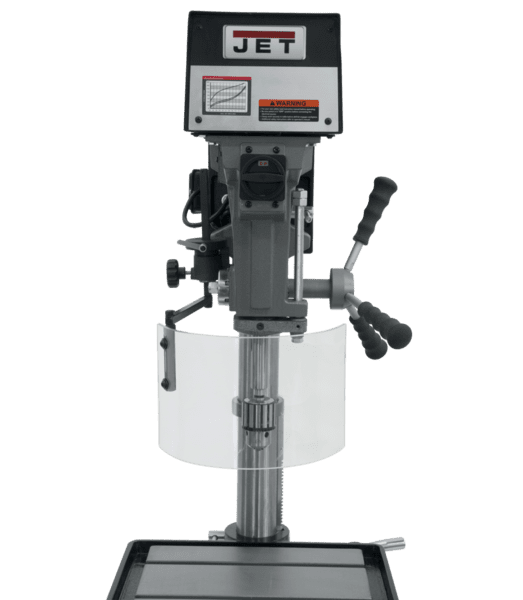

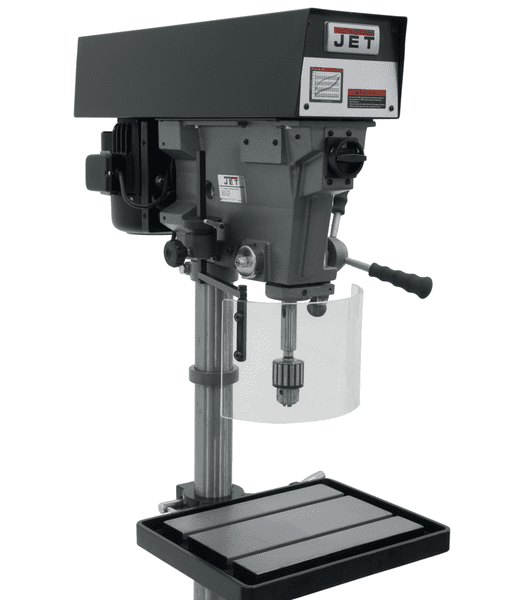

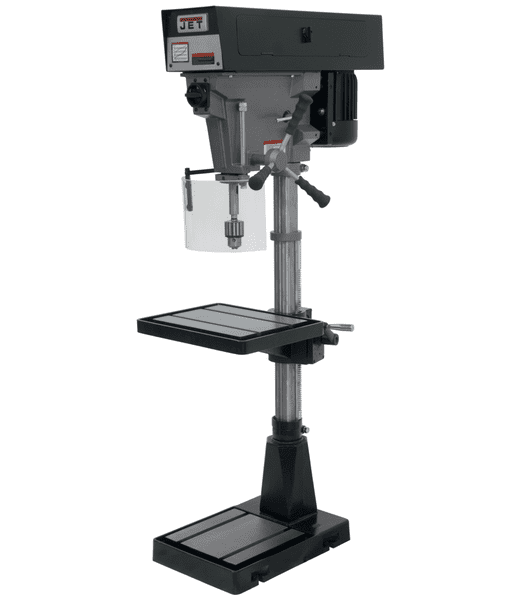

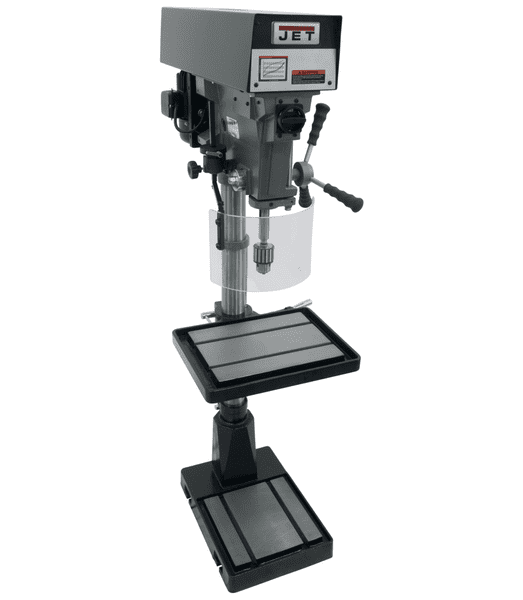

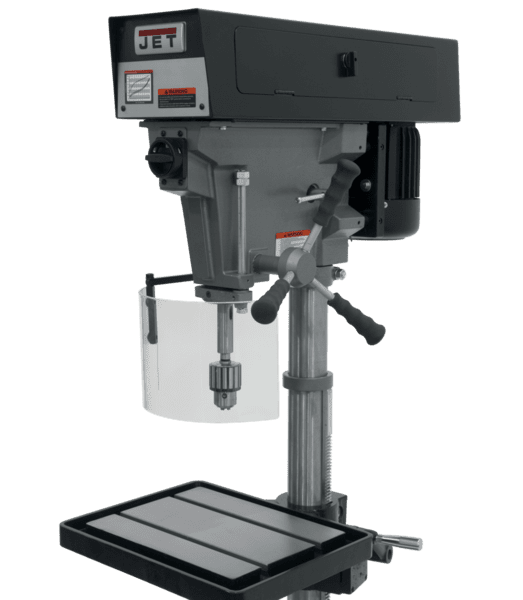

JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
JET J-A3816 15 6 SPEED FLOOR MODEL DRILL
, , ,

JET J-A3816 15 6 SPEED FLOOR MODEL DRILL

$2,369.00

Base Dimensions: 20-7/8 x 14-3/16 x 3-1/8
Base Work Table: 12-1/8 x 11-13/16
Column Diameter: 3
Distance Column to Spindle: 15
Drilling Capacity Cast Iron: 5/8
Drilling Capacity Mild Steel: 1/2
Drills to Center of Circle: Inch
Motor (HP): 1 HP, 115/230V, 1Ph
Number of Spindle Speeds: 6
Range of Spindle Speeds: 375, 625, 1,125, 1,950, 3,400, 5,000
Spindle Distance to Base: 44-1/2
Spindle Distance to Table (Max.): 25-3/4
Spindle Taper: MT-2
Spindle Travel: 6
Style (Type): Belt Drive
Table Size (L x W): 15 x 18
Table Travel: 16-3/4
T-Slots Number and Size: 2 and 1/2
T-Slot Centers: 5-5/16
Weight: 394
Work Table Weight Capacity: 90

SKU: JT9-354500 Categories: , , ,

Features:

1/2″ Drill chuck and arbor included
3″ column for maximum head support
6-Spindle Speeds from 375 to 5,000 RPM
Constructed to provide a solid base for drilling
Larger quill provides greater accuracy

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 394 lbs
Dimensions 21.5 × 32.5 × 70 in
