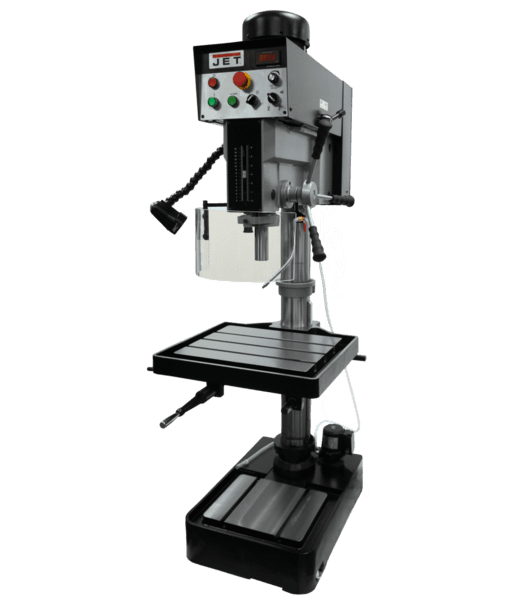

JET JDP-20EVST-460 20 EVS DRILLPRESS TAPPING

$6,549.00

Base Dimensions: 27" x 19"
Column Diameter: 4-1/2
Distance Column to Spindle: 10-7/16
Drilling Capacity Cast Iron: 1-1/2
Drilling Capacity Mild Steel: 1-3/8
Drills to Center of Circle: Inch
Inverter Type: M Type 460V 1/3Ph
Motor (HP): 2HP, 460V, 3 Ph
Range of Spindle Speeds: 65-540 /245- 2,000
Spindle Distance to Base: 44-1/2
Spindle Distance to Table (Max.): 30-1/4
Spindle Taper: MT-3
Spindle Travel: 6
Style (Type): Variable Speed
Table Size (L x W): 22x18-3/4
Table Travel: 20
Tapping Capacity Cast Iron: 7/8
Tapping Capacity Mild Steel: 3/4
T-Slot Centers: 7-7/16
Weight: 792
Work Table Weight Capacity: 154

Features:

CSA Coolant System
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Heavy-duty steel column for increased precision and rigidity
High torque at all speeds both forward and reverse
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Latest AC Inverter Variable Speed Technology

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 792 lbs
Dimensions 38.18 × 27.16 × 79.52 in
