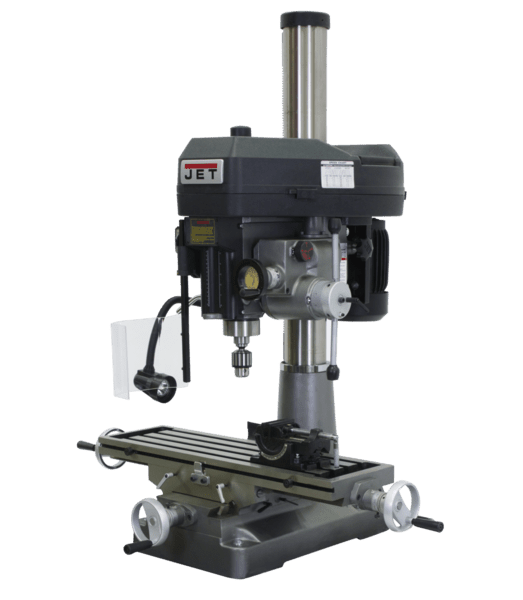

JET JMD-18PFNA W/ TBL PFD & 203 DRO (TEXT)

$8,419.00

Base Dimensions: 15-3/4 x 23-3/4
Column Diameter: 4-1/2
Face Mill Capacity: Inch
Max Distance Spindle to Table: 28
Motor (HP): 2 HP,115/230V, 1 Ph, Prewired 115V
Number of Spindle Speeds: 12
Powerfeed: X-Axis
Quill Diameter: 3"
Quill Down Feed Rates (IPR): 0.0047, 0.007, 0.001
Range of Spindle Speeds: 150 - 3,000
Spindle Taper: R-8
Spindle Travel: 5
Swing: 15-7/8
Table Size (L x W): 9-1/2 x 32-1/4
T-Slots Number and Size: 4 and 5/8
T-Slot Centers: 1-13/16
Weight: 700
Work Table Weight Capacity: 400

SKU: JT9-350120 Categories: , ,

Features:

1/2” Drill chuck, chuck arbor
360° head swivel
Adjustable carbide facemill
Base taper allows for easier clean up
Easy to read internal depth gauge
Heavy-duty power downfeed with manual feed (JMD-18PFN)
Mill Drill Stand, p/n 320020, shown in some images, is optional
One-piece cast iron column for added support
Positive quick-stop knob and easy to read internal depth gauge
UL Listed

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 700 lbs
Dimensions 56 × 66 × 73 in
Base Dimensions

Column Diameter

Face Mill Capacity

Max Distance Spindle to Table

Motor (HP)

Number of Spindle Speeds

Powerfeed

Quill Diameter

Quill Down Feed Rates (IPR)

Range of Spindle Speeds

Spindle Taper

Spindle Travel

Swing

Table Size (L x W)

T-Slots Number and Size

T-Slot Centers

Weight

Work Table Weight Capacity
