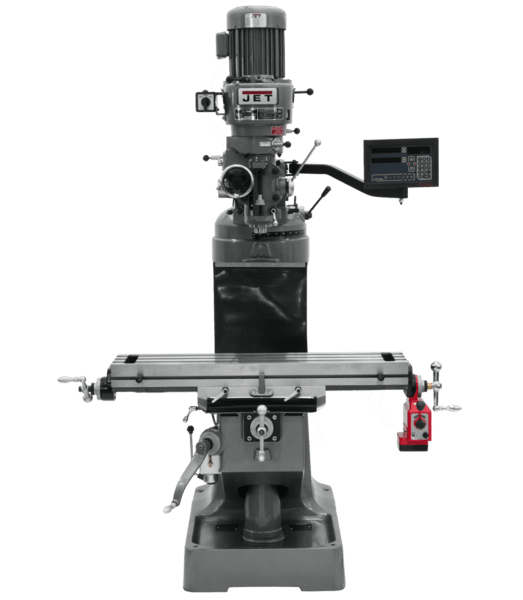

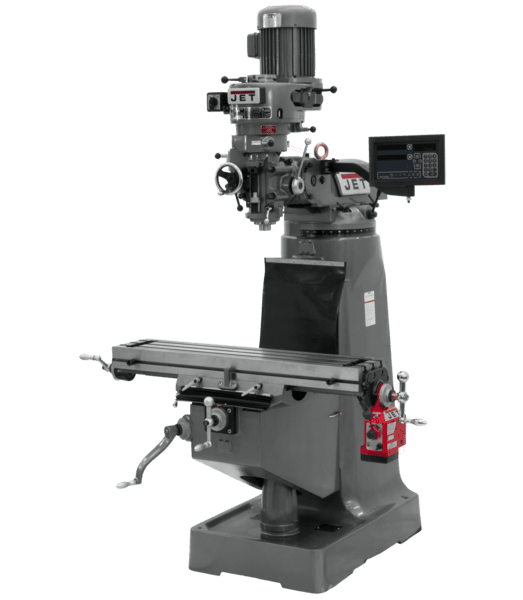

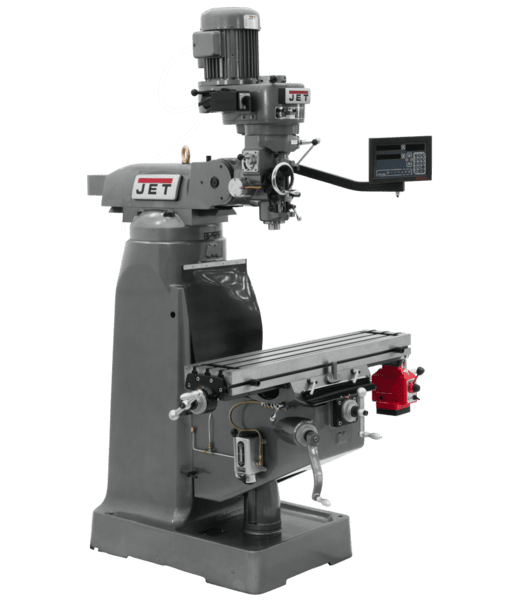

JET JTM-1 9X42 MILL W/DP700 3-AXS Q DRO&XPWR

$16,559.00

Collet Capacity: 1/8 - 7/8
Max Distance Spindle to Table: 17-1/2
Motor (HP): 2 HP, 230V 3ph
Number of Axis: 3 (Quill)
Number of Spindle Speeds: 16
Powerfeed: X-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 - .003 - .006
Range of Spindle Speeds: 80 - 5,440
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Step Pulley R8
Table Cross Travel: 12-1/2
Table Longitudinal Travel: 20-2/7
Table Size (L x W): 9 x 42
Travel of Knee: 14-1/2
Travel of Ram: 13-3/8
T-Slot Centers: 2-1/2
Weight: 2200
Work Table Weight Capacity: 550

SKU: JT9-691191 Categories: , ,

Features:

Heavy duty splined motor drive
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Precision bored and honed milling head
Precision hardened and ground ways
Satin chrome finished dials
Tolerance test sheet included

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2200 lbs
Dimensions 64 × 57 × 82 in
