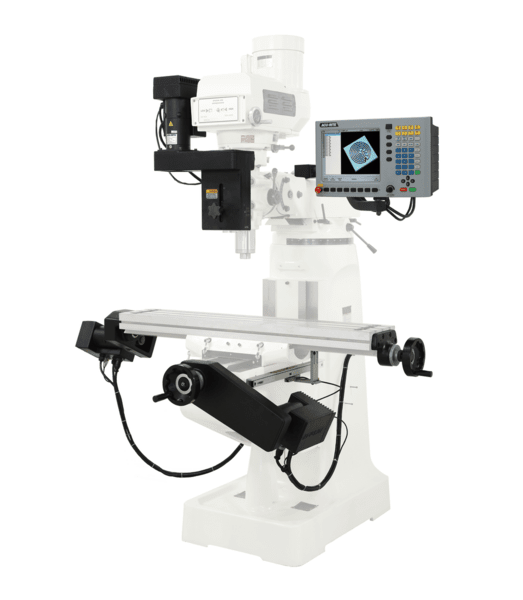

JET JTM-1050EVS2/230 3X MILL PWR CNC

$50,729.00

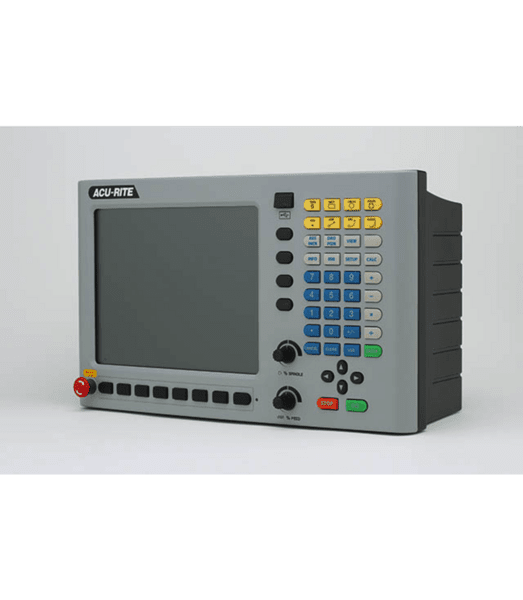

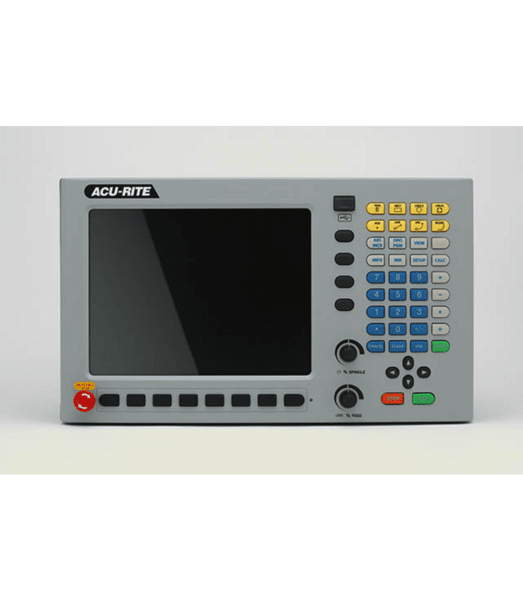

CNC Package: ACU-RITE MILLPWR® G2
Collet Capacity: 1/8 - 7/8
Column Width: 20
Inverter Type: Delta, B
Max Distance Spindle to Table: 20-3/4
Motor (HP): 3 HP, 230V, 3Ph
Number of Axis: 3
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 - .003 - .006
Range of Spindle Speeds: 60 - 4,500
Saddle Width: 11-1/2
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): CNC
Table Cross Travel: 14-3/4
Table Longitudinal Travel: 29-7/8
Table Size (L x W): 10 x 50
Travel of Knee: 16-1/8
Travel of Ram: 15-7/8
T-Slot Centers: 2-1/2
Weight: 2860
Work Table Weight Capacity: 840

SKU: JT9-690676 Categories: , ,

Features:

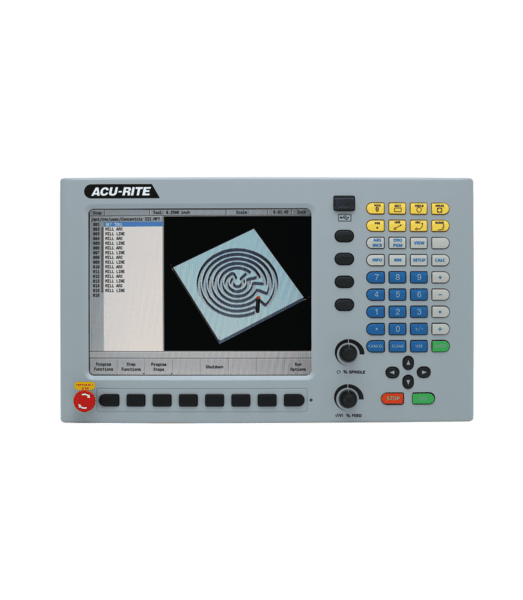

12.1″ High resolution display (1024 x 768) with 3D graphics
Available offline software
Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
Closed loop feedback using Acu-Rite precision linear encoders with 0.00005″ resolution

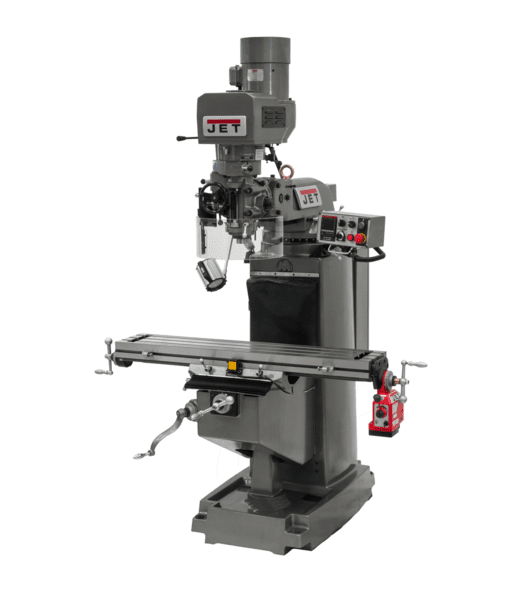

CNC electronic variable speed vertical milling machine package for JTM-1050EVS
Estimated run time feature
Jog Control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneously

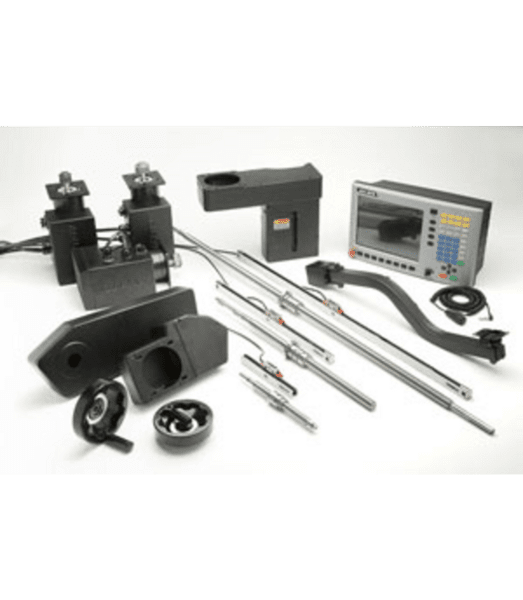

Powerful DC Servo motor assemblies that include mounting castings and hardware
Precision ground ball screws eliminate backlash for precise lateral movements
USB + Ethernet compatible

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2860 lbs
Dimensions 66 × 63 × 87 in
