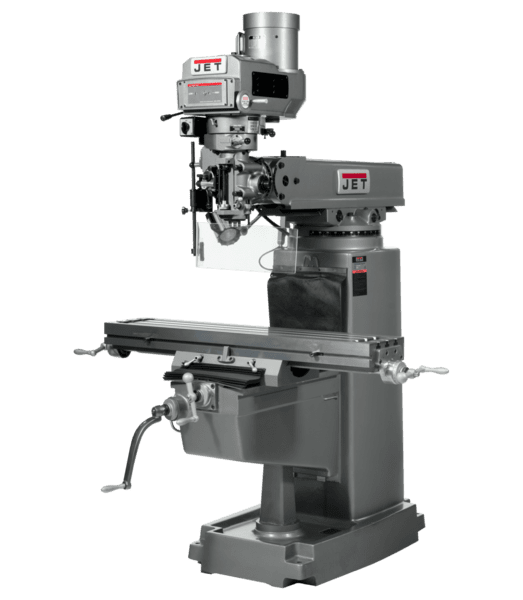

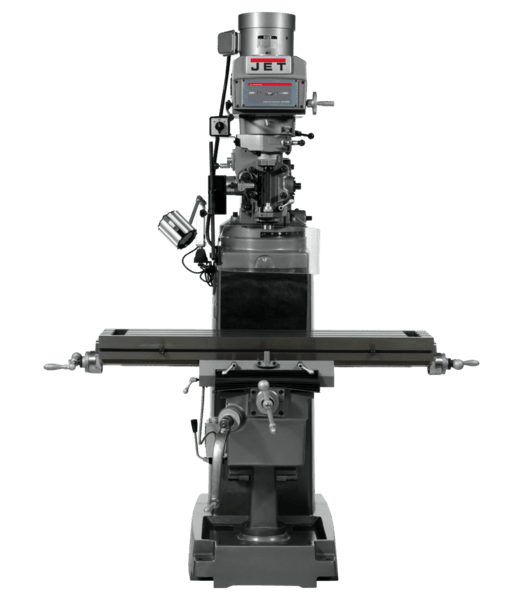

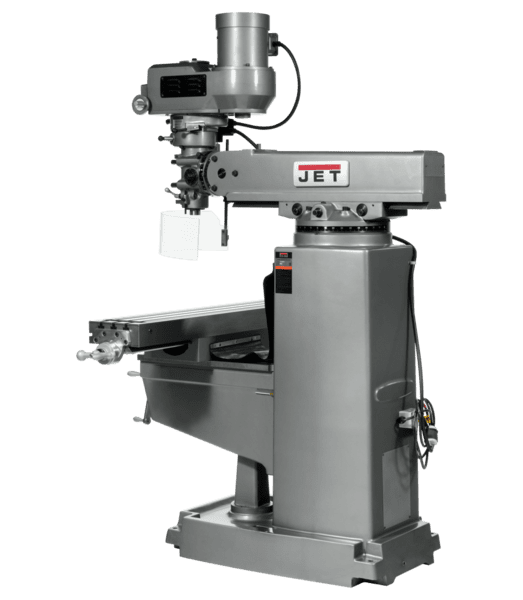

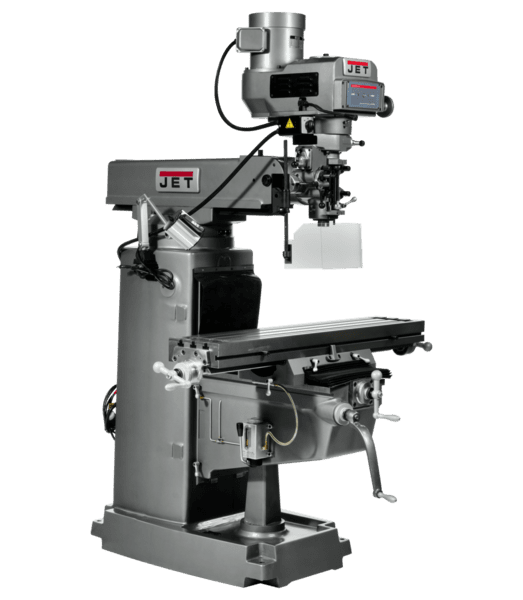

JET JTM-1050VS2 DP700 3-AXIS Q DRO&X-Y PWFD

$23,399.00

Collet Capacity: 1/8 - 7/8
Max Distance Spindle to Table: 19
Motor (HP): 3 HP, 230/460V, 3Ph
Number of Axis: 3 (Quill)
Powerfeed: X and Y-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 - .003 - .006
Range of Spindle Speeds: 70 - 3,800
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed R8
Table Cross Travel: 15-1/4
Table Longitudinal Travel: 29-3/4
Table Size (L x W): 10 x 50
Travel of Knee: 14-1/4
Travel of Ram: 20-1/2
T-Slot Centers: 2-1/2
Weight: 2900
Work Table Weight Capacity: 720

SKU: JT9-691209 Categories: , ,

Features:

Adjustable gibs throughout
Chrome lead screws on X and Y axis
Chrome-plated motor shaft with bearing support at end
Hardened and ground square vertical knee ways and cross ways
Heavy duty motor drive
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Spindle head is internally cooled
Tolerance test sheet included

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2900 lbs
Dimensions 68.75 × 95.75 × 87 in
Collet Capacity

Max Distance Spindle to Table

Motor (HP)

Number of Axis

Powerfeed

Quill Diameter

Quill Down Feed Rates (IPR)

Range of Spindle Speeds

Spindle Taper

Spindle Travel

Style (Type)

Table Cross Travel

Table Longitudinal Travel

Table Size (L x W)

Travel of Knee

Travel of Ram

T-Slot Centers

Weight

Work Table Weight Capacity
