Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender
The Pro Tools BRUTE Hydraulic Tube & Pipe Bender is a heavy duty machine for race car chassis, roll bars, handrails and more. With its 2 1/2″ tube or 2″ schedule 80 pipe capacity, the BRUTE can handle almost any job. Features include a 15 ton hydraulic cylinder with a 16″ stroke and a 1″ thick main bending frame with an integrated CNC machined degree ring. The large selection of round, square, pipe and metric die sets make this machine extremely versatile and custom sizes and radii can be quoted upon request.
Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender Features:
- Perfect for production applications
- Adjustable stop included-set it once and create as many parts as you need
- Bend up to 2″, 0.134″ tubing or NPS 1-1/2 pipe without any effort!
- 100% Designed, Machined, and Assembled in the USA!
- Bend up to 90 degrees, after springback, in one stroke of the cylinder
- Designed for a lifetime of constant use
- Forms quality, repeatable bends (less than 10% distortion in most cases)
- Creates 90-degree bends in less than 30 seconds
- Tooling changes in less than 60 seconds
- All parts are CNC-machined for accuracy
- Full selection of over 300 dies

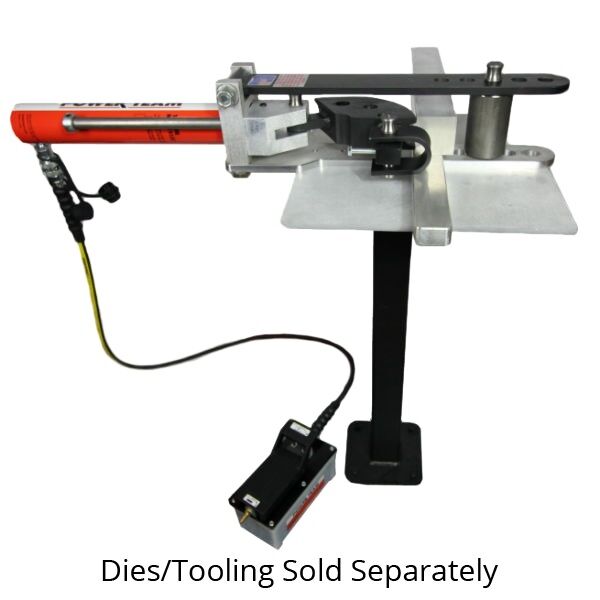

Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender Includes:
- One-Shot Tube and Pipe Bender
- 16″ x 17″ Aluminum Table
- Follow Bar Support Bar
- Adjustable Stop
- Stand
- 15-Ton American-Made Hydraulic Cylinder
- 10,000 PSI American-Made Air/Hydraulic Pump
- Full Pin Set
- Tensioning Bolt
Round Tube
- Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
- Maximum Outside Diamter (OD): 2″ (50.8 mm)
- Minimum Wall Thickness: Depends on Die (See Die Charts)
- Maximum Wall Thickness: 0.134″
Pipe
- Minimum Size: NPS 1/4 (DN 8)
- Maximum Size: NPS 1-1/2 (DN 35)
- Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
Square Tube
- Minimum Size: 1/2″ (12.7 mm)
- Maximum Size: 1-1/2″ (38.1 mm)
- Minimum Wall Thickness: 0.065″ (1.7 mm)
- Maximum Wall Thickness: 0.125″ (3.2 mm)
Other Specifications
- Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Charts for details.)
- Maximum Centerline Radius (CLR): 7″ (177.8 mm)
- Maximum Degree of Bend: 90 degrees, after springback
About Pro-Tools
Pro-Tools Tube Benders and Notchers are made in the USA and are a great choice for beginners as well as professional metal fabricators. The popular Pro 105 series benders can be found in garages and race car shops around the world. Choose from manual or hydraulic benders that are affordable and upgradeable.
*Please Contact Us For Die/ Tooling Charts and Pricing
