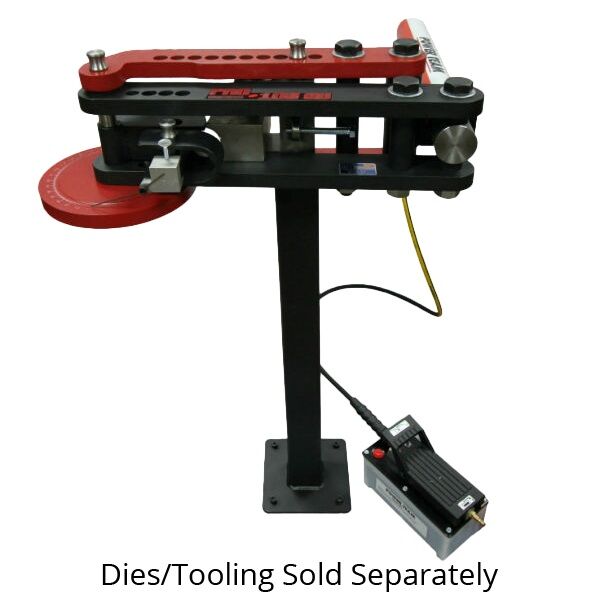

Pro-Tools BRUTE Hydraulic Tube & Pipe Bender
The Pro Tools BRUTE Hydraulic Tube & Pipe Bender is a heavy duty machine for race car chassis, roll bars, handrails and more. With its 2 1/2″ tube or 2″ schedule 80 pipe capacity, the BRUTE can handle almost any job. Features include a 15 ton hydraulic cylinder with a 16″ stroke and a 1″ thick main bending frame with an integrated CNC machined degree ring. The large selection of round, square, pipe and metric die sets make this machine extremely versatile and custom sizes and radii can be quoted upon request.
Pro-Tools BRUTE Hydraulic Tube & Pipe Bender Features:
- Great for custom fabrication applications
- Bend up to 2-1/2″, 0.134″ tubing or NPS 1-1/2 pipe with no effort!
- 100% Designed, Machined, and Assembled in the USA!
- The world’s only true anti-springback system
- Designed for a lifetime of constant use
- Forms quality, repeatable bends (less than 10% distortion in most cases)
- Creates 180-degree bends in less than 2 minutes (requires appropriate die)
- Tooling changes in less than 30 seconds
- All parts are CNC-machined for accuracy
- Industrial-strength 1”-thick arms
- Full selection of over 300 dies
Pro-Tools BRUTE Hydraulic Tube & Pipe Bender Includes:
- Brute Tube and Pipe Bender
- Built-in Degree Ring
- 15-Ton American-Made Hydraulic Cylinder
- 10,000 PSI American-Made Air/Hydraulic Pump with Hose
- Stand
- Full Pin Set
- Tensioning Bolt
Round Tube
- Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
- Maximum Outside Diamter (OD): 2-1/2″ (63.5 mm)
- Minimum Wall Thickness: Depends on Die (See Die Chart)
- Maximum Wall Thickness: 0.134″ (3.4 mm)
Pipe
- Minimum Size: NPS 1/4 (DN 8)
- Maximum Size: NPS 2 (DN 50)
- *Benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
Square Tube
- Minimum Size: 3/4″ (19.1 mm)
- Maximum Size: 1-1/2″ (38.1 mm)
- Minimum Wall Thickness: 0.065″ (1.7 mm)
- Maximum Wall Thickness: 0.125″ (3.2 mm)
Other Specifications
- Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Chart for details)
- Maximum Centerline Radius (CLR): 7″ (177.8 mm)
- Maximum Degree of Bend: 180 degrees, depending on the die
About Pro-Tools
Pro-Tools Tube Benders and Notchers are made in the USA and are a great choice for beginners as well as professional metal fabricators. The popular Pro 105 series benders can be found in garages and race car shops around the world. Choose from manual or hydraulic benders that are affordable and upgradeable.
*Please Contact Us For Die/ Tooling Charts and Pricing
