Name: Pro-Tools End Mill Notcher
SKU: 4128
Availability: InStock

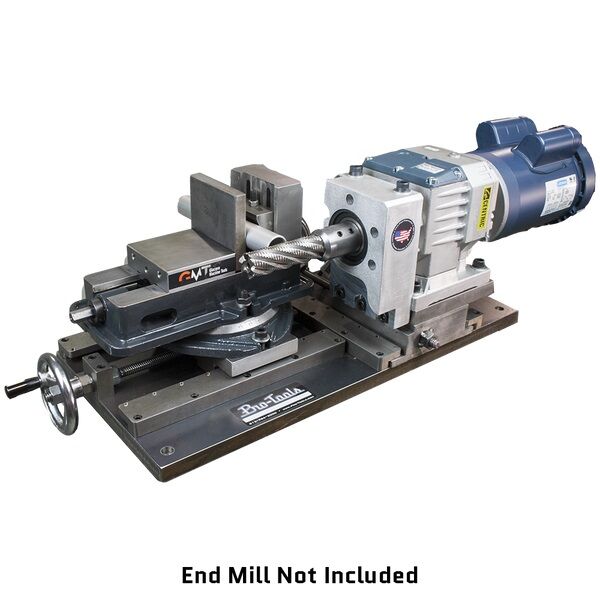

Pro-Tools End Mill Notcher

$6,409.99 – $7,159.00

Great for custom fabrication applications
Designed for constant use
Forms quality, repeatable notches in seconds
Made in the USA
Tooling changes in less than 30 seconds
1-1/2 HP motor comes standard
Adjustable x- and y-control on the vise allows for precise adjustments and offset notching
360-degree vise rotation allows you to form a notch in any direction

Pro-Tools End Mill Notcher

The Pro-Tools End Mill Notcher operation is simple, just clamp your tube in the calibrated swivel vise that allows for accurate and repeatable positioning at any angle.

Pro-Tools End Mill Notcher Features:

Great for custom fabrication applications
Designed for constant use
Forms quality, repeatable notches in seconds
Made in the USA
Tooling changes in less than 30 seconds
1-1/2 HP motor comes standard
Adjustable x- and y-control on the vise allows for precise adjustments and offset notching
360-degree vise rotation allows you to form a notch in any direction

Round Tube

Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 2-1/2″ (63.5 mm)
Maximum Wall Thickness: Solid

Pipe

Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 2 (DN 50)

Other Specifications

Angled Notches: 0-180 degrees
Offset Notches: Up to 1/2 the OD of the material

About Pro-Tools

Pro-Tools Tube Benders and Notchers are made in the USA and are a great choice for beginners as well as professional metal fabricators. The popular Pro 105 series benders can be found in garages and race car shops around the world. Choose from manual or hydraulic benders that are affordable and upgradeable.
