BAILEIGH RDB-150-AS, 110V, HYDRAULIC, RDB

$8,169.00

Chromoly Round Tube Wall: 2" (.125)
Input Power: 110V
Minimum OD: Inch
Round Pipe Sch. 40 Capacity: 2"
Round Tube Capacity: 2.5" (.125)
Shipping Dimensions: 60x44x77
Square Tube Capacity: 2" (.125)
Weight: 610

*110V hydraulic rotary draw tube and pipe bender
*2″ schedule 40 pipe capacity
*8″ CLR maximum
*Auto-stop programmer

Features:

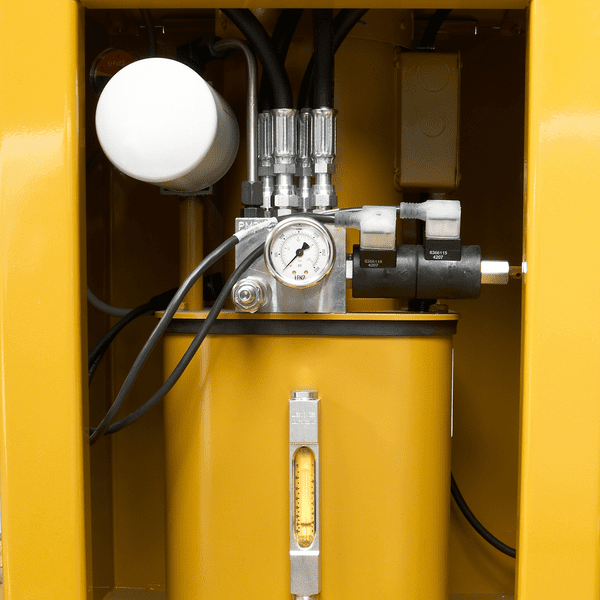

Powerful low-pressure hydraulic system operates on only 110 volts
Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel
Executes consistent 180° bends in one fluid motion
Auto-stop programmer lets you set the desired bend angle for convenient precision and repeatability

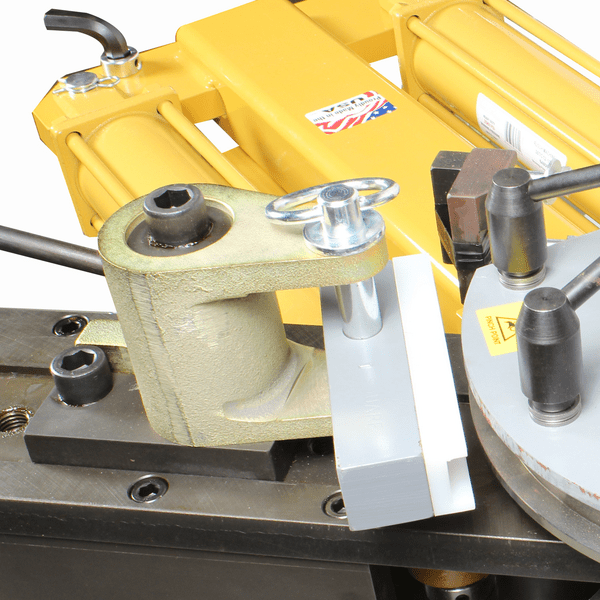

Quick-release counter die makes for fast loading and unloading

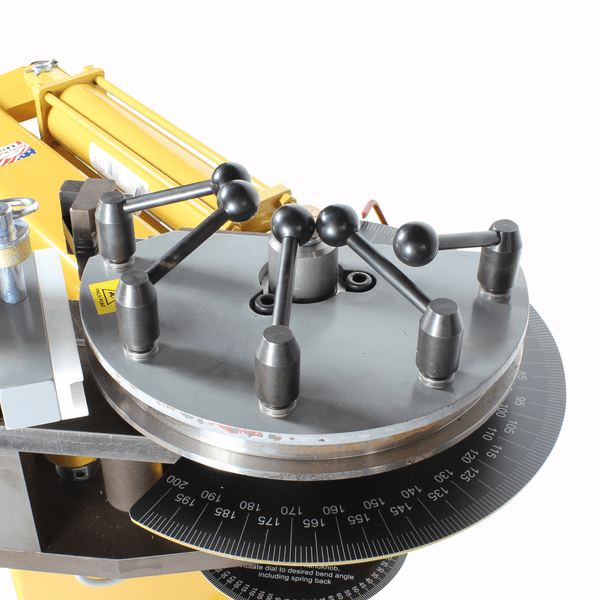

Easy-to-read degree indicator shows a bend’s progress
Compact machine includes wheels on the base for convenient storage in small shops
Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
Covered by a 1-year parts warranty
Includes lifetime technical support form from our experienced team of representatives

About Baileigh Industrial

At Baileigh Industrial®, we design and manufacture industrial metalworking and woodworking machinery that delivers reliable, precise results over decades of use. Since 1999, Baileigh has taken pride in earning a reputation for innovation and customer satisfaction.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 610 lbs
Dimensions 60 × 44 × 77 in
Chromoly Round Tube Wall

Input Power

Minimum OD

Round Pipe Sch. 40 Capacity

Round Tube Capacity

Shipping Dimensions

Square Tube Capacity

Weight
