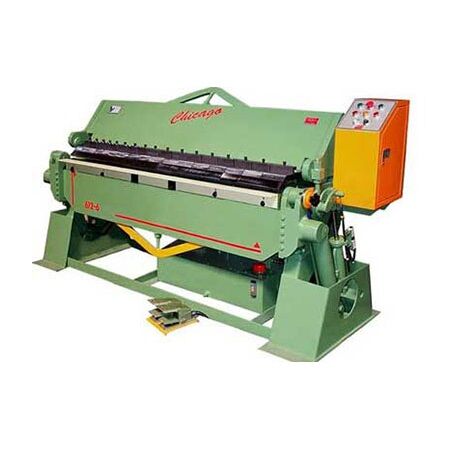

Chicago Dreis & Krump HBPU Series Standard Features
- Removable Nose Bar
- Bolted Bottom Bar
- Compact Hydraulic Power Unit
- Angle Bar
- Insert Bar
- Oil Level Sight Gauge
Electric Foot Switch – Clamps and unclamps Top Leaf. Allows operator mobility when loading and unloading material.
Bend Angle Dial Adjustment – Adjustable cam and scale that read in degrees, actuates an electric limit switch for bend angle control and repeatability of bends.
Material Thickness Dial Adjustment – Reference scale for speedier set up when adjusting clamping pressure.
Back Gauge – 25 1/2″ travel, rack and pinion type gauge with hand wheel adjustment on right side of machine. in/cm scales.
| Model | Bending Length | Capacity Mild Steel | Capacity Stainless Steel | Motor HP | Weight | Dimensions | Price |
| HBPU 412-6 | 48″ | 12 ga. | 16 ga. | 2 | 2,800 lbs | 78″ x 48″ x 54″ | $20,525 |
| HBPU 612-6 | 72″ | 12 ga. | 16 ga. | 2 | 3,300 lbs | 102″ x 48″ x 54″ | $24,600 |
| HBPU 812-6 | 96″ | 12 ga. | 14 ga. | 3 | 4,700 lbs | 125″ x 48″ x 57″ | $28,280 |
| HBPU 810-6 | 96″ | 10 ga. | 14 ga. | 5 | 6,400 lbs | 126″ x 48″ x 57″ | $39,125 |
| HBPU 1014-6 | 120″ | 14 ga. | 18 ga. | 2 | 5,500 lbs | 150″ x 48″ x 57″ | $31,870 |
| HBPU 1012-6 | 120″ | 12 ga. | 16 ga. | 5 | 6,900 lbs | 150″ x 48″ x 57″ | $45,400 |
| HBPU 1010-6 | 120″ | 10 ga. | 14 ga. | 5 | 8,800 lbs | 160″ x 48″ x 72″ | $49,500 |
Optional Motorized Back Gauge
Chicago Dreis & Krump offers a motorized back gauge as optional equipment on their line of hydraulic leaf brakes. The gauging system increases productivity through a faster and more reliable set up process. GO-TO positioning of the crossbar along with a digital readout are featured components of the gauging system. Sheet supports keep light material against the gauge bar not under it. Front operated controls reduce operator fatigue.
- 25″ crossbar travel
- 20 I.P.M. crossbar speed
- Over travel limit switches
- Crossbar alignment rods
- Sheet support rods
- LED Readout for crossbar positioning
- Forward/Backward push buttons for manual positioning of crossbar
- Enter Preset number for GO-TO position
- Start push-button automatically moves crossbar to Preset position
- Reset calibrates crossbar position to match dimension of part formed
About Chicago Dreis & Krump
Chicago Dreis & Krump strives to provide prompt and accurate sales of machines, parts and service to fill customers metal forming needs and to carry on their 125 plus year tradition of “Building ‘em like they had to last forever”.
