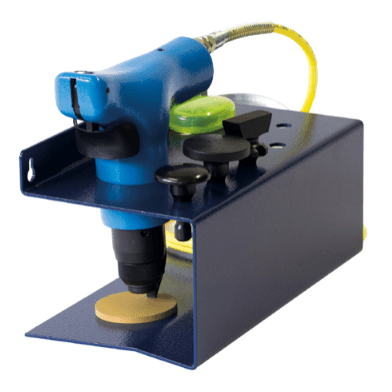

Eckold GL2 Handheld Planishing Hammer

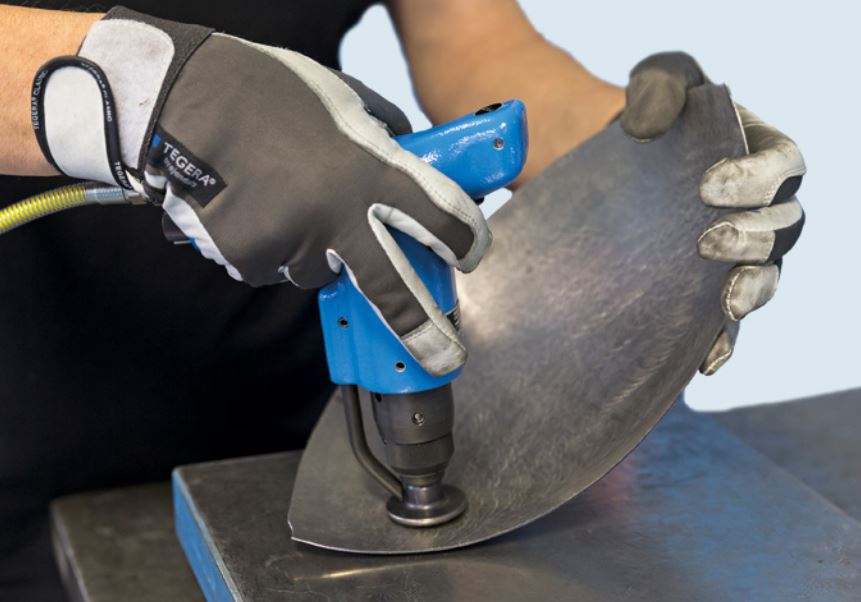

The Eckold GL2 Handheld Planishing Hammer is the perfect tool for the best possible surface finish on preformed sheet metal parts. Fine laser weld seams can be planished fast and efficient using the GL2 Planishing Hammer. It can be used in car body restoration, body repairs or where metal has to be formed into a particular shape. The compact unit is perfect for getting into tight spaces for finish work that may not be possible with a yolk style planishing hammer. The Eckold GL2 Handheld Planishing Hammer comes with inserts for planishing, stretching and curving. Plastic inserts are available for working without marking any surfaces, as well as inserts with a swiveling shaft for better reaching edges and corners. The GL2 comes in 3 different kit options, all with a different number of die options.

Eckold GL2 Handheld Planishing Hammer

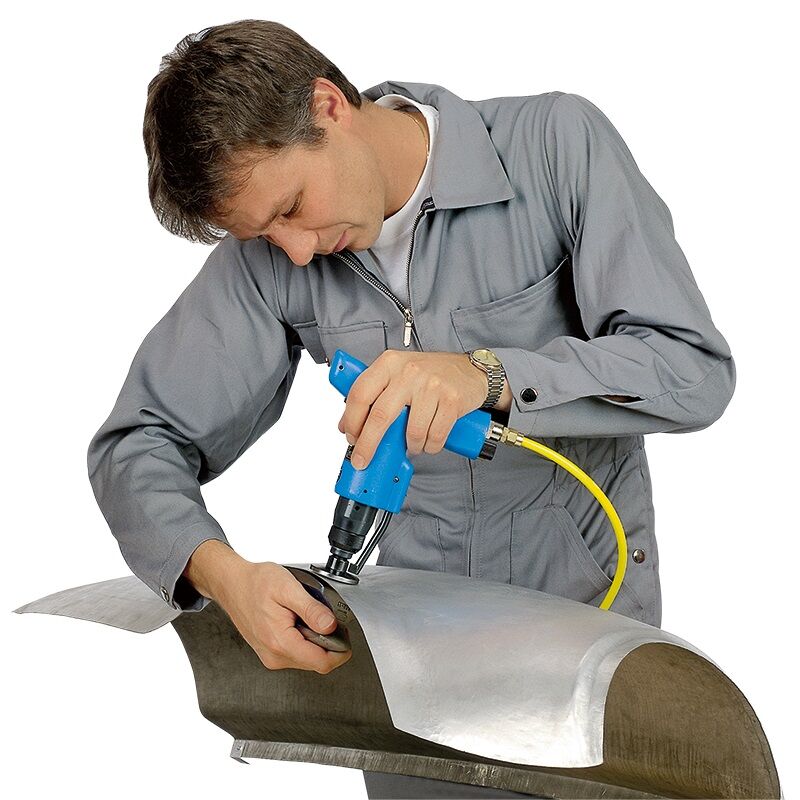

The Eckold GL2 Handheld Planishing Hammer is the perfect tool for achieving a smooth finish on preformed sheet metal parts. The GL2 can quickly and efficiently planish fine laser weld seams. It can be used in car body restoration, body repairs or where metal has to be formed into a particular shape. The compact unit is perfect for getting into tight spaces for finish work that may not be possible with a yolk style planishing hammer. The GL2 Planishing Hammer comes with inserts for planishing, stretching and curving. Plastic inserts are available for working without marking any surfaces, as well as inserts with a swiveling shaft for better reaching edges and corners. The GL2 comes in 3 different kit options, all with a different number of die options.

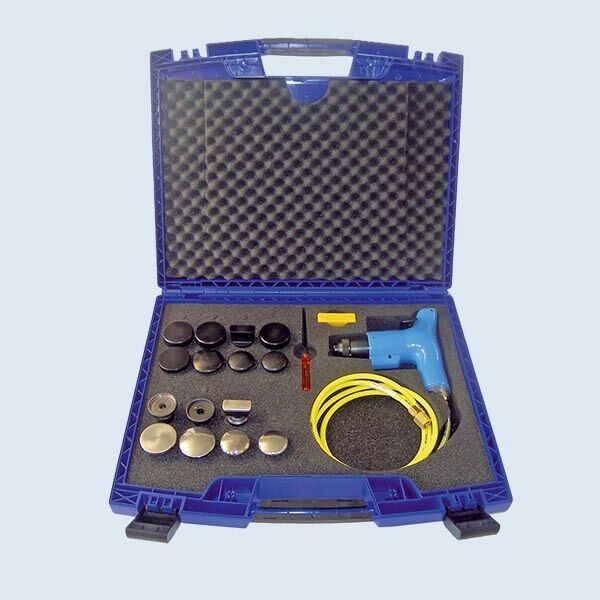

Eckold GL2 Handheld Planishing Hammer Kit Includes:

Qty.	Model	Description	Material	Size
1	GL 2	Planishing hammer
1	GES 48/500	Planishing insert	Steel	Ø 48 / R 500
1	SES 18/40/500	Curving insert	Steel	18 x 40/R 500
1	TES 40/60	Stretching insert	Steel	Ø 40 / R 60
1	TES 40/50	Stretching insert	Steel	Ø 40 / R 50
1	TES 48/70	Stretching insert	Steel	Ø 48 / R 70
1	GEP 48/500	Planishing insert	Synthetic	Ø 48 / R 500
1	ROP 18/40	Blank (Rectangular)	Synthetic	18 x 40 / Flat
1	TEP 40/60	Stretching insert	Synthetic	Ø 40 / R 60
1	TEP 40/50	Stretching insert	Synthetic	Ø 40 / R 50
1	TEP 48/70	Stretching insert	Synthetic	Ø 48 / R 70
3	ROP 48	Blank (Round)	Synthetic	Ø 48 / Flat
1	SA 40	Regular shaft	Steel	Ø 40
1	GS 40	Swivel shaft	Steel	Ø 40

Eckold has been a leader of shrinking and stretching technology since 1957 because they offer an unrivaled range of solutions. These machines have been an industry favorite in sheet metal forming or finishing work because they’re precise, durable, and easy-to-use. When sheet metal needs to be shaped and profiles must be bent, Eckold is your industry leader.
