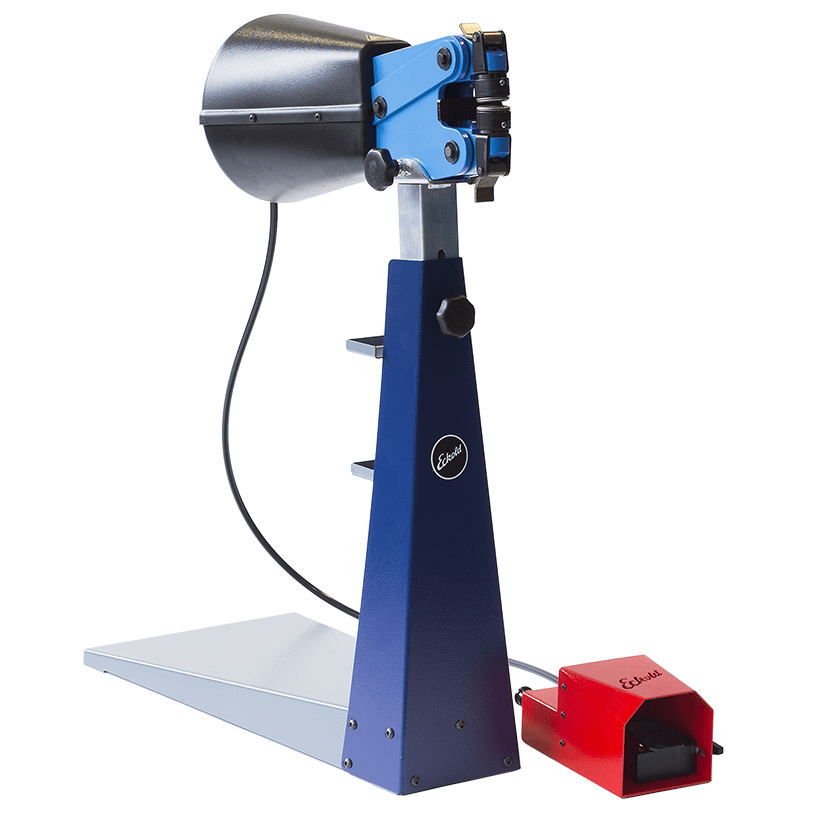

Eckold HF 100 PA Handformer

With the Eckold HF 100 PA Pneumatic Powered Handformer you can use both hands to hold and guide your workpieces, while the precision strokes are triggered with the foot pedal. The convenient “PA” air drive unit is offered as an upgrade to improve the standard HF 100 hand-operated Handformer. The Eckold HF 100 PA has a throat depth of 3.94″ (100 mm) and can easily handle materials up to 16 gauge (.059″ / 1.5 mm) mild steel.
Forming Capacities Aluminum – 14 gauge / .078″ / 2 mm
Mild Steel – 16 gauge / .059″ / 1.5 mm
Stainless Steel – 20 gauge / .039″ / 1 mm
Throat Depth 3.94″ (100 mm)
Throat Height 2.36″ (60 mm)
Drive Pneumatic
Dimensions 27.5 × 15.5 × 46 in
Weight 86 lbs

Eckold HF 100 PA Handformer

The Eckold HF 100 PA air-powered Handformer allows you to use both hands to hold and guide your work pieces, while the precision strokes are triggered with the foot pedal. The convenient “PA” air drive unit is offered as an upgrade to improve the standard HF 100 hand-operated Handformer. The HF 100 PA has a throat depth of 3.94″ (100 mm) and can easily handle materials up to 16 gauge (.059″ / 1.5 mm) mild steel. The HF 100 PA features a pressure control device to prevent tool overload. Each step on the foot pedal releases one working stroke. Pressing down the foot pedal switch lightly releases a stroke with limited pressure. If you want the full power of the machine applied you simply press the pedal down all the way.

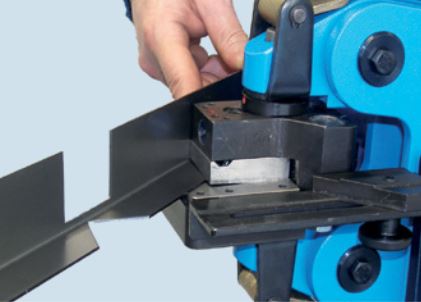

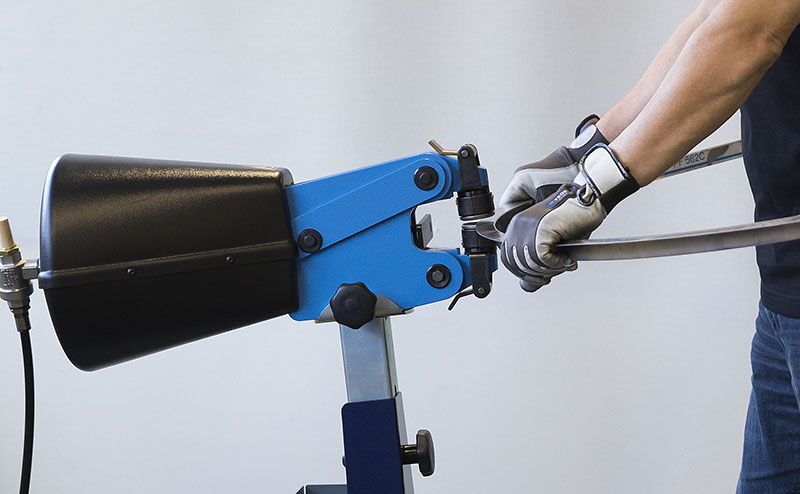

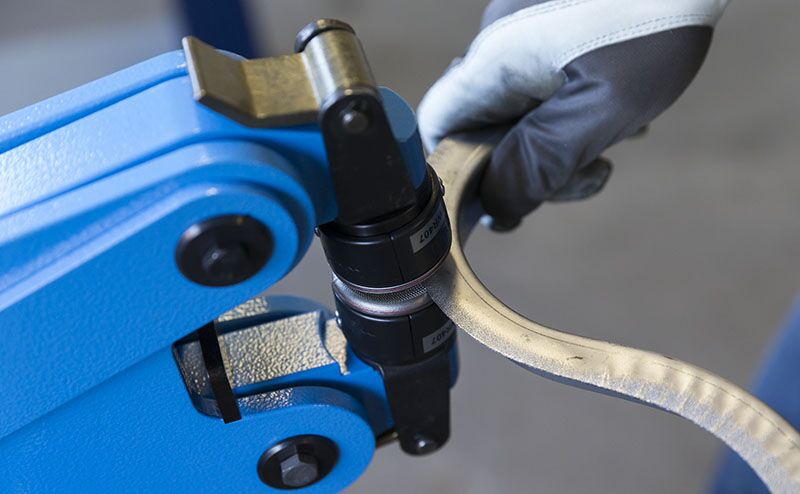

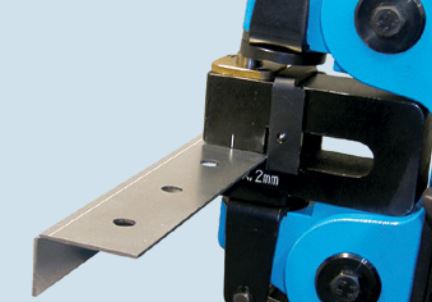

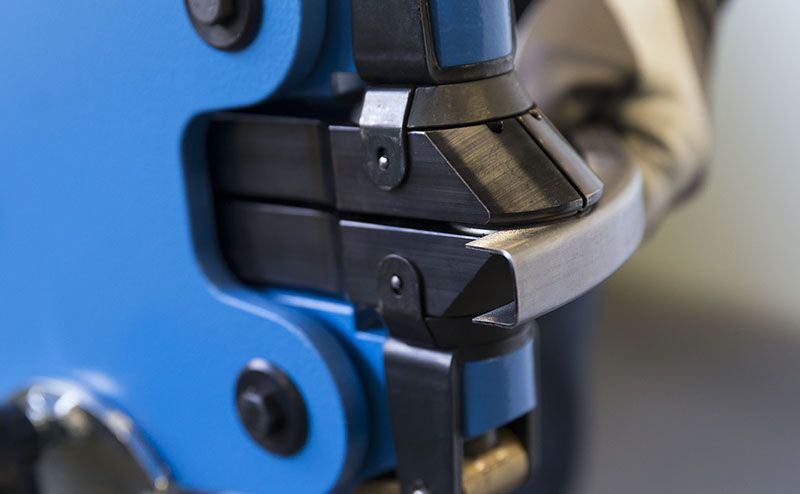

Because of the single stroke operation, tooling inserts are available for clinching, punching, notching and more. As with all of the other Eckold models, the vast number of tooling available makes the Eckold HF 100 PA Handformer the perfect machine for professional metal shapers. Tooling options are available for shrinking, stretching, notching, punching and more. The forming tools have a quick-change design which helps eliminates down time.

Eckold HF 100 PA Handformer Features

  • Adjustable working height
  • Quick-change tooling
  • Integrated tool shelves
  • Material backstop for precise guiding of work pieces

Eckold has been a leader of shrinking and stretching technology since 1957 because they offer an unrivaled range of solutions. These machines have been an industry favorite in sheet metal forming or finishing work because they’re precise, durable, and easy-to-use. When sheet metal needs to be shaped and profiles must be bent, Eckold is your industry leader.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
    • Tooling not included
    • Lead times may vary, please contact us for exact availability
Please enable JavaScript in your browser to complete this form.
Forming Capacities

Aluminum – 14 gauge / .078" / 2 mm
Mild Steel – 16 gauge / .059" / 1.5 mm
Stainless Steel – 20 gauge / .039" / 1 mm

Throat Depth

3.94" (100 mm)

Throat Height

2.36" (60 mm)

Drive

Pneumatic

Dimensions

27.5 × 15.5 × 46 in

Weight

86 lbs
