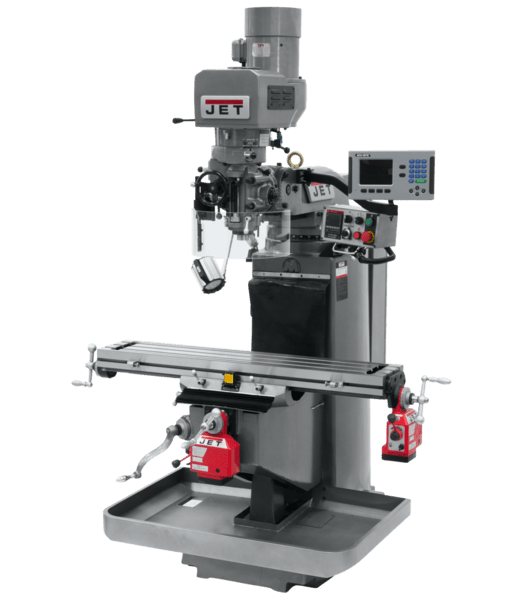

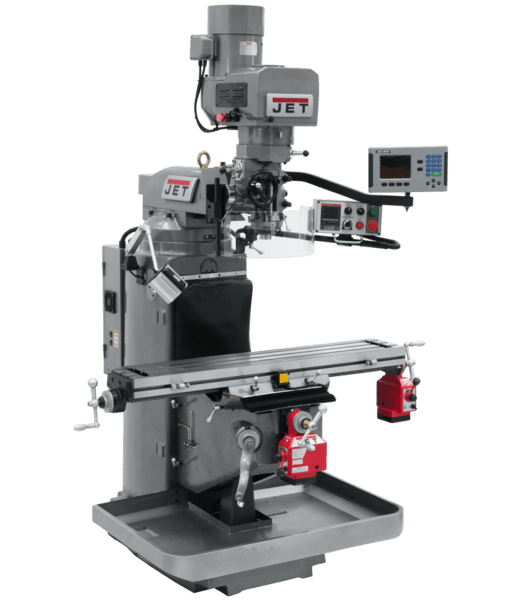

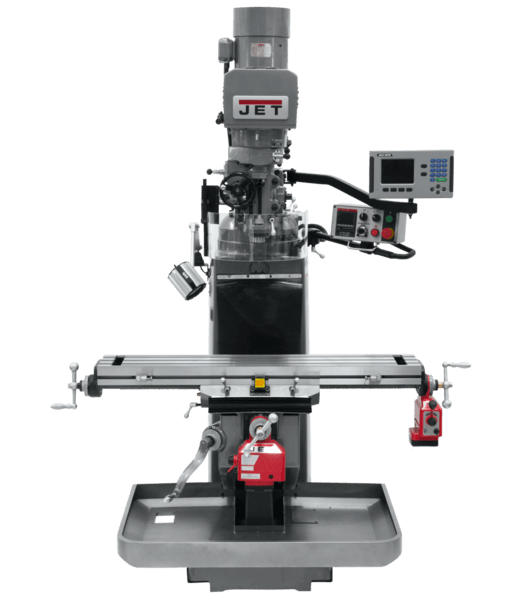

JET 949EVS 203 3X (K) DRO X&Y PWRFD

$22,959.00

Collet Capacity: 1/8 - 7/8
Column Width: 18
Inverter Type: Delta, B
Max Distance Spindle to Table: 20-3/4
Motor (HP): 3HP, 230V, 3Ph
Number of Axis: 3 (Knee)
Powerfeed: X and Y-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 - .003 - .006
Range of Spindle Speeds: 60 - 4,500
Saddle Width: 11-1/2
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): EVS
Table Cross Travel: 12-5/8
Table Longitudinal Travel: 30-3/4
Table Size (L x W): 9 x 49
Travel of Knee: 15-3/4
Travel of Ram: 15-1/4
T-Slot Centers: 2-1/2
Weight: 2420
Work Table Weight Capacity: 720

SKU: JT9-690527 Categories: , ,

Features:

Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
Dual locks on all moveable surfaces
Spindle head is internally cooled extending bearing, belt and motor life

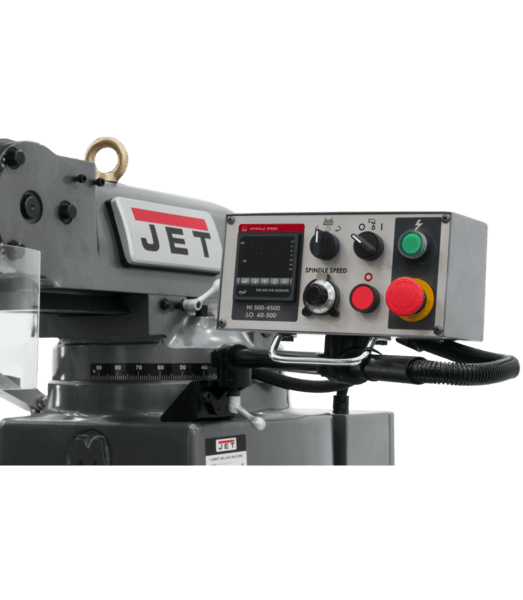

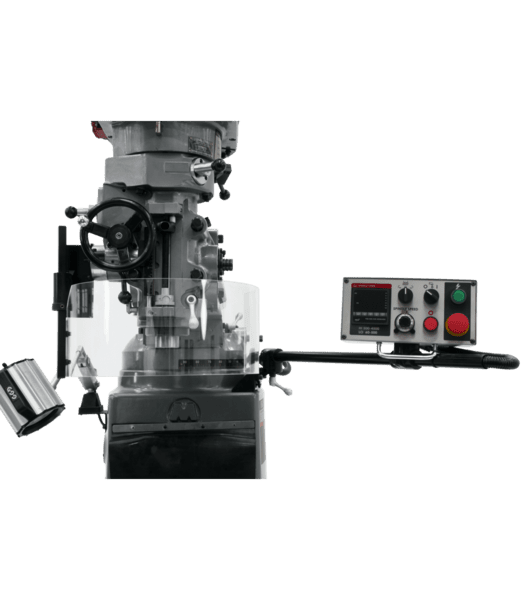

Swing away control box houses an e-stop and puts all controls at the operators fingertips
Swing away safety shield
Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories

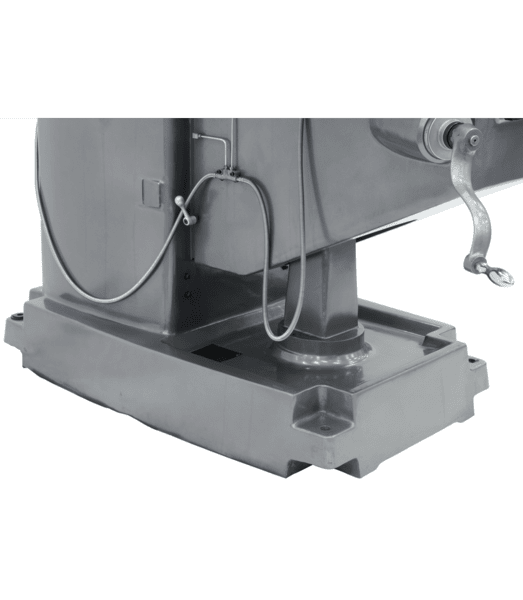

The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

About JET

JET Tools, owned by JPW Industries, is committed to being the supplier you can depend on for the epitome of quality, innovation and Service. JET Tools has worked hard to make this a reality that has been ongoing since we introduced our products more than 50 years ago. With JET Tools being used by manufacturing professionals in plants, machine shops and workshops across the United States, we knew we could bring the same quality and reliability to another very important customer – You.

Contact us today to start your quote!

Please complete the form below or call us at (815) 451-7086.
Please enable JavaScript in your browser to complete this form.
Weight 2420 lbs
Dimensions 66 × 63 × 86 in
